[shortdesc]
- VoIP phone adapter, 2 ports, 100Mb LAN, for multiplatform
[/shortdesc]
[properties]
| Product Name |
Cisco ATA192-3PW-K9 VoIP Phone Adapter |
| Product Description |
VoIP phone adapter with two RJ-11 FXS ports and two 10/100 Mbps Ethernet ports, enabling analog devices to integrate into IP networks |
| Type |
VoIP Phone Adapter |
| Interface |

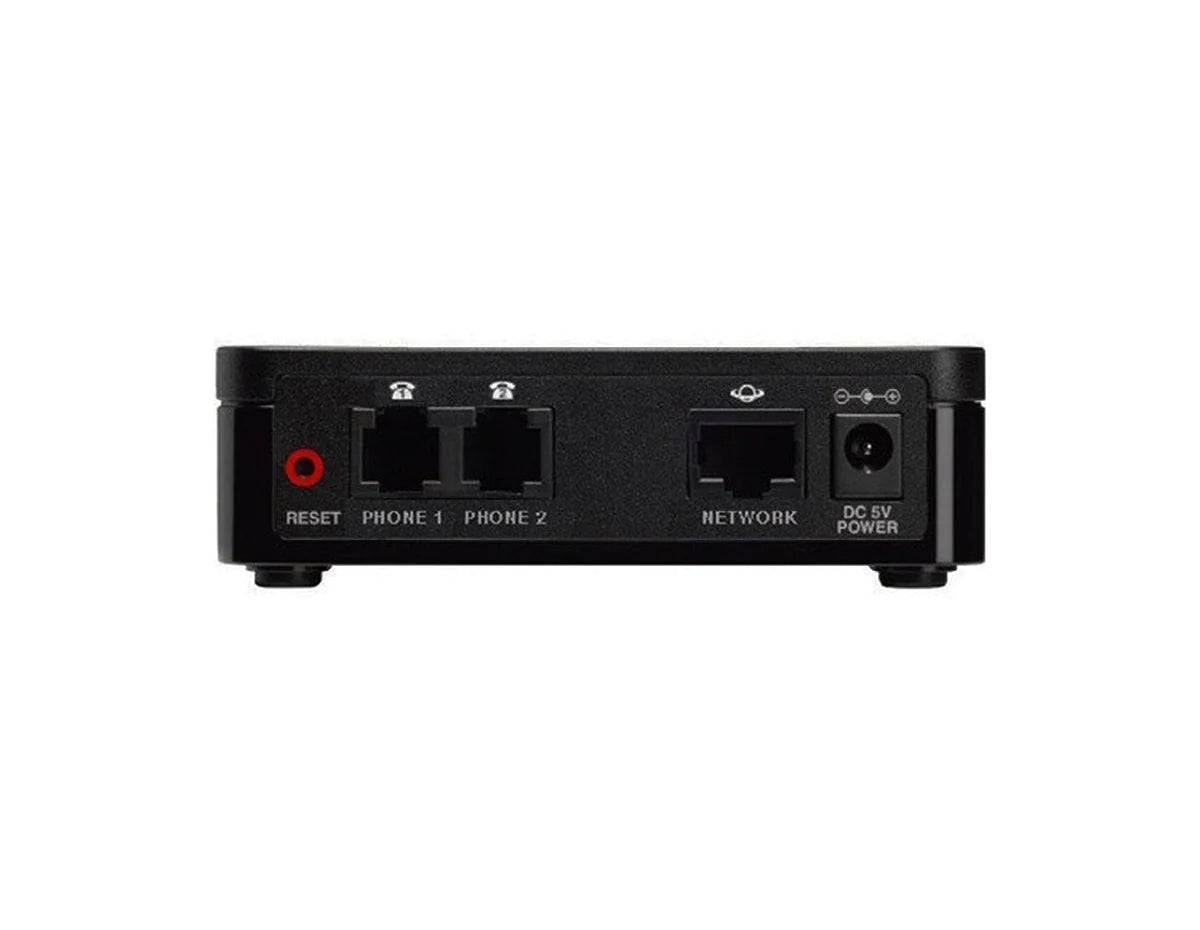

Two RJ-11 FXS ports, two 10/100 Mbps RJ-45 Ethernet ports |
| Form Factor |
Wall mountable |
| Compatibility |
Cisco Webex Calling, BroadCloud, BroadWorks, Metaswitch, Asterisk, and other third-party call control systems |
| Power Adapter |
100-240V AC input, 50-60 Hz, with 1.8m cord |
| Networking Protocols |
IPv4, IPv6, SIP, TCP, UDP, RTCP, RTP, SRTP, HTTP, HTTPS, TFTP, ARP, DHCP, ICMP, SNTP, LLDP, PPPoE |
[/properties]
[specifications]
| Product Code |
ATA192-3PW-K9 |
| Ring Voltage |
40 to 90 Vpk configurable |
| On-Hook Voltage |
-46 to -56V |
| Off-Hook Current |
25 mA ± 10% |
| Frequency Response |
300 to 3400 Hz |
| QoS Support |
IEEE 802.1p/Q, Differentiated Services (DiffServ), Type of Service (ToS) |
| Dimensions |
3.9 x 3.9 x 1.1 inches |
| Operating Temperature |
32°F to 104°F (0°C to 40°C) |
| Weight |
0.5 lbs (0.23 kg) |
| Certificates |
CE, FCC, RoHS compliant |
[/specifications]

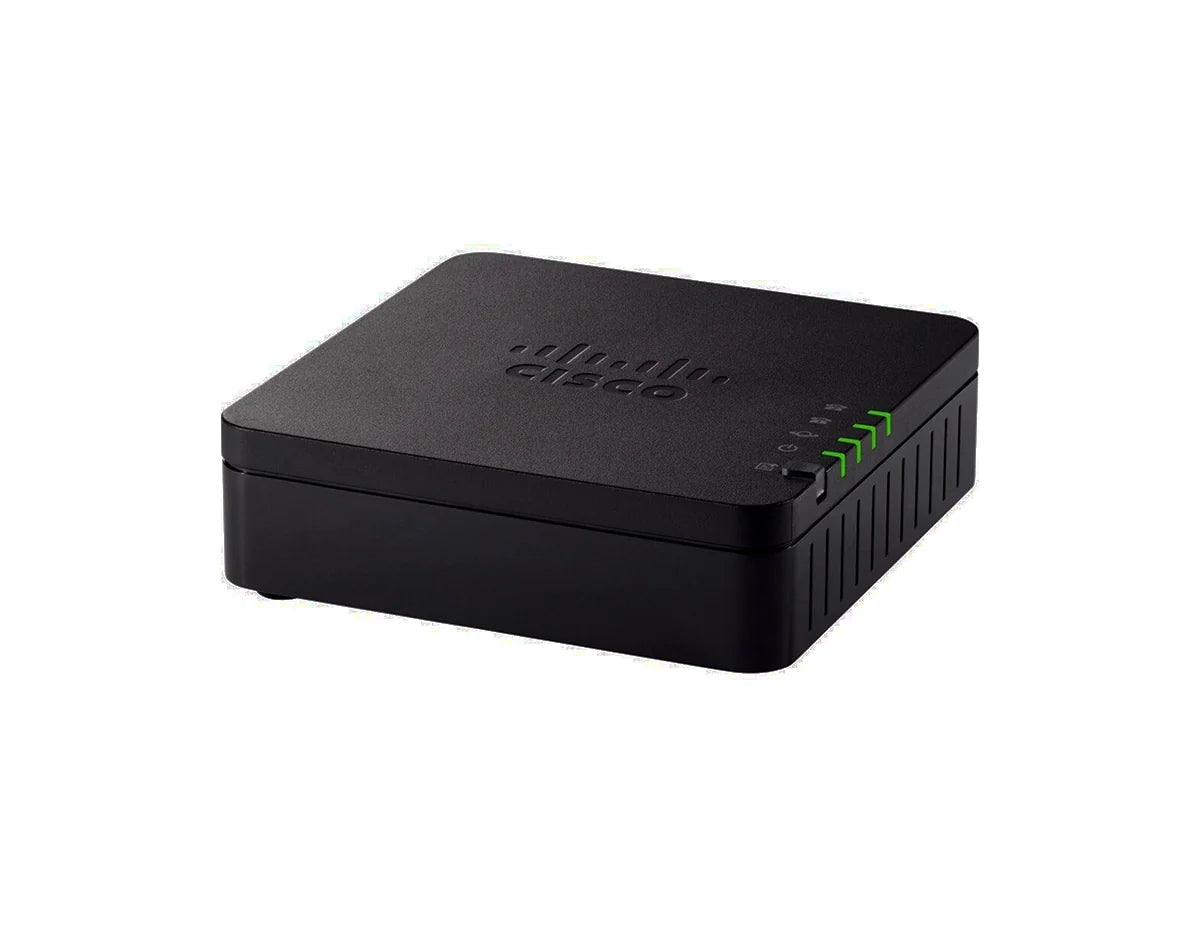

Cisco ATA192-3PW-K9 VoIP Phone Adaptor
The Cisco Analog Telephone Adapter integrates traditional analog telephony devices into an IP network, enabling them to operate within modern IP telephony applications. The Cisco ATA192-3PW-K9 delivers 2-port handset-to-Ethernet adapter for telephone, fax, and overhead paging communications devices into IP devices for greater cost-effectiveness.
Key Features:
- two RJ-11 FXS ports
- Cisco Webex Calling
The tabs contain the Cisco ATA192-3PW-K9 datasheet with all the specifics you need.
