[shortdesc]
- PoE Injector, AC 100-240 V, 802.3at PoE+, For Aironet 1810, 1815, 1830, 2800 series
[/shortdesc]
[specifications]
| Specifications |
AIR-PWRINJ6 |
| Description |
The Cisco Aironet Power Injector AIR-PWRINJ6= increases wireless LAN deployment flexibility of supported Cisco Aironet Access Points by providing an alternative powering option to local power, inline power-capable multiport switches, and multiport power patch panels. |
| Product Family |
Cisco Aironet Power Injector |
| Product Type |
Power Injector |
| Dimensions (W, H, L) |
Model 1: 53 mm x 32.5 mm x 140 mm
2.09 in x 1.28 in x 5.5 in
Model 2: 65 mm x 36 mm x 140 mm
2.55 in x 1.42 in x 5.51 in |
| Data Rates |
10/100/1000 Mbps |
| PoE Output |
Pin Assignment and Polarity:
IEEE 802.3at compliant
Output Power Voltage: 55V DC |
| User Port Power |
30 Watts |
| Input Power Requirements |
AC Input Voltage: 100 to 240V AC
AC Input Current: 0.8 A @ 100 - 240 V AC
AC Frequency: 50 to 60 Hz |
| Connectors |
Shielded RJ-45, EIA 568A and 568B |
| Operating Temperature |
-4ºF to 104ºF (-20ºC to 40ºC) at 30 W
-4ºF to 122ºF (-20ºC to 50ºC) at 25 W |
| Reliability |
MTBF: 100,000 hrs @ 25ºC |
| Thermal Rating |
20 BTU/Hr @ 240 V AC |
| Regulatory Compliance |
IEEE 802.3 at (PoE), China RoHS Compliant, WEEE Compliant, CE Compliant |
| Electromagnetic Emission and Immunity |
FCC Part 15, Class B
EN 55022 Class B (Emissions)
EN 55024 (Immunity)
VCCI |
| Safety |
UL 60950-1
IEC/EN 60950-1 |
[/specifications]

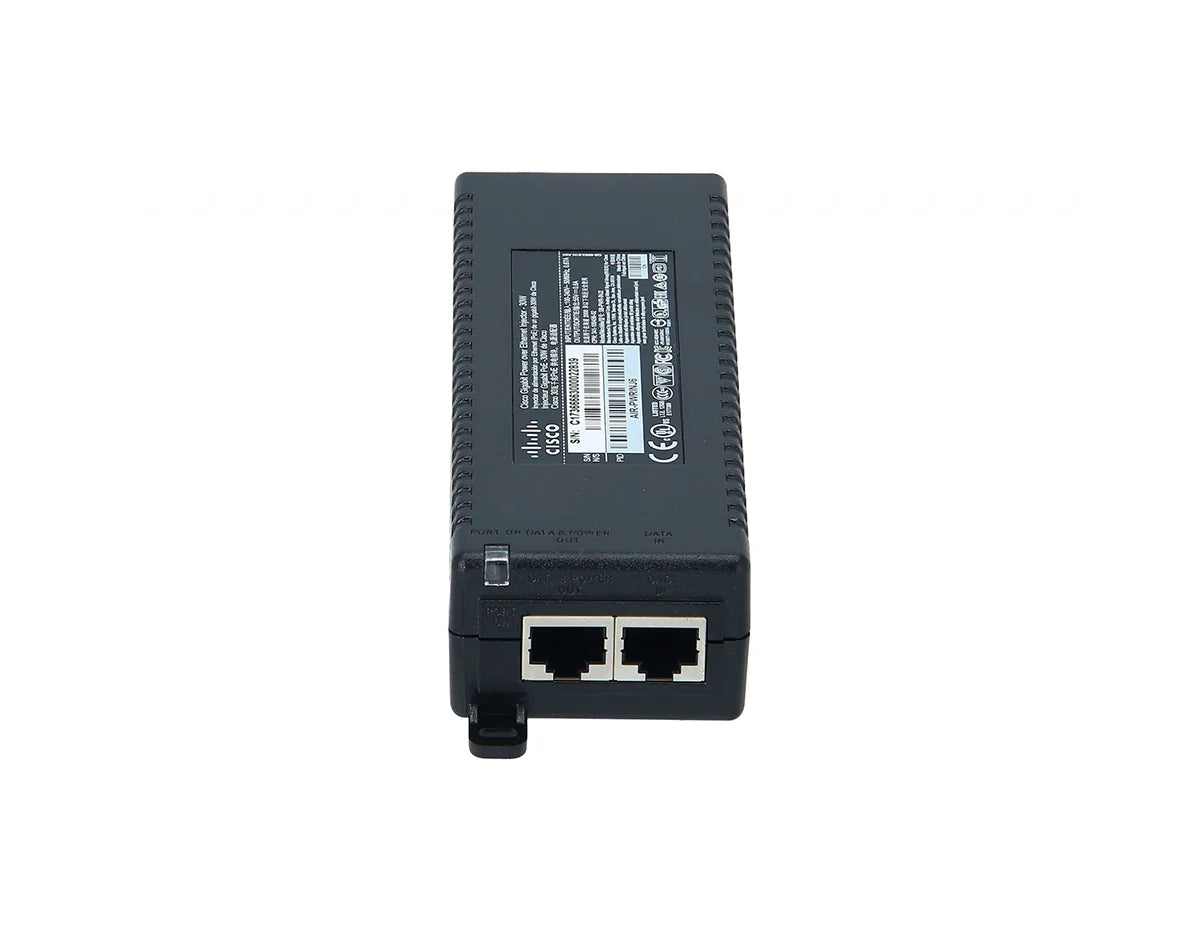

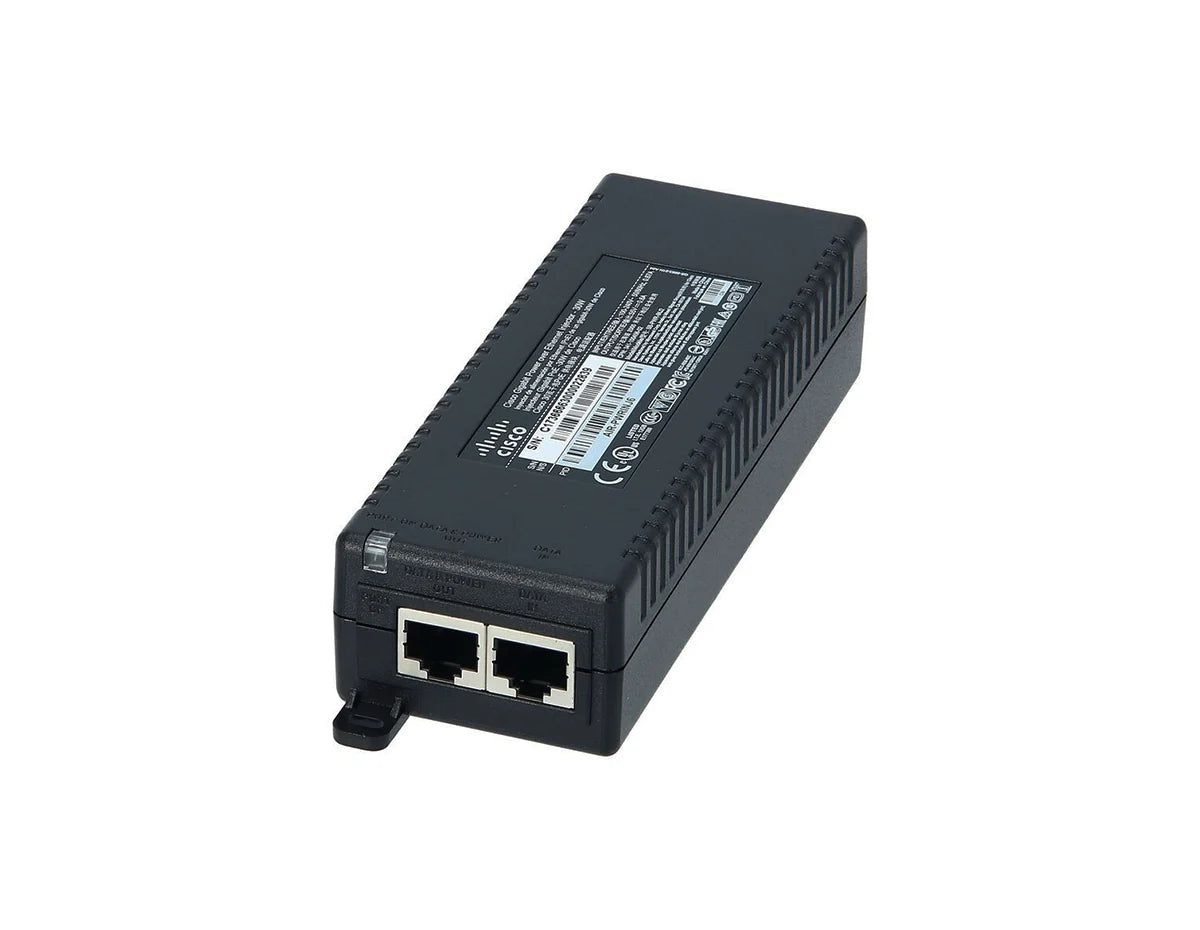

Cisco AIR-PWRINJ6= POE Injector
The Cisco Aironet Power Injector AIR-PWRINJ6= is a single-port PoE injector that can provide up to 30 Watts of power and is compliant with IEEE 802.3af (15.4 W) and IEEE 802.3at (30 W) systems. It connects to a 10/100/1000 Ethernet switch, hub, or network using a Category 5 or better Ethernet cable, and another cable carries power and data to the access point's WAN Ethernet port.
Key Features:
- C13 connector
- For Cisco Aironet Systems
For detailed specifications, refer to the AIR-PWRINJ6 datasheet in the tabs.
