Description

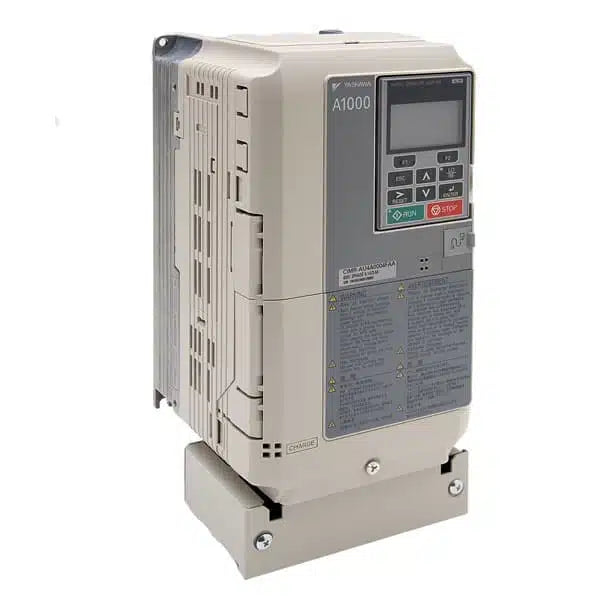

The Yaskawa CIMR-AU4A0005FAA is a 3 HP AC drive from the A1000 series, designed for high-performance motor control in industrial applications. Operating at 480V, this variable frequency drive offers robust functionality and energy efficiency for demanding automation environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Yaskawa |
| Category |
Drives |
| Part Number |
CIMR-AU4A0005FAA |
| Subcategory |
Drive |
| Series |
A1000 |
| Power Rating |
3 HP |
| Input Voltage |
380–480 VAC |
| Input Current |
5.4 A (Normal) / 4.8 A (Heavy Duty) |
| Output Frequency |
0.01 – 400 Hz |
| Frequency Range (Input) |
50/60 Hz |
| Phase |
3-Phase |
| Control Modes |
V/f, Open Loop Vector, Closed Loop |
| Motor Compatibility |
Induction & Interior Permanent Magnet |
| Safety Function |
Safe Torque Off (STO), SIL2/PLd |
| Communication |
Modbus RTU (standard), options available |
| Mounting Type |
Panel Mount |
| Protection Rating |
IP20 / NEMA 1 |
| Operating Temp |
-10°C to +50°C |
| Standards Compliance |
UL, CE, RoHS |
| Configuration Storage |
Removable terminal board |
| Weight |
7.00 lbs |
Information About CIMR-AU4A0005FAA
The CIMR-AU4A0005FAA is a member of Yaskawa’s A1000 series, known for its reliability and advanced vector control capabilities. This model supports both open and closed-loop vector operation, making it compatible with a wide range of motors, including permanent magnet types. Designed for use in factories, HVAC, and process systems, it enables dynamic motor response and sustained torque delivery. With its built-in features like Safe Torque Off and continuous auto-tuning, the drive is well-suited for precise and safe motor operations.
Key Features:
- Flexible Vector Control: Supports both open and closed-loop vector modes for optimal motor regulation.
- Auto-Tuning Functionality: Continuously adjusts to motor temperature and load for consistent performance.
- Integrated STO Safety: Includes embedded Safe Torque Off functionality to meet safety standards.
- Communication Ready: Built-in Modbus RTU with options for major industrial protocols.
- High Slip Braking: Reduces the need for external braking resistors, minimizing system cost.
- Parameter Backup Support: Removable terminal board stores configuration for faster replacement.
- High Precision Motor Control: Ideal for IPM and standard induction motor types.
- Thermal and Voltage Protection: Provides real-time protection against peak demands and power irregularities.
The CIMR-AU4A0005FAA delivers the reliability and precision required for variable-speed industrial motor control.
