Description

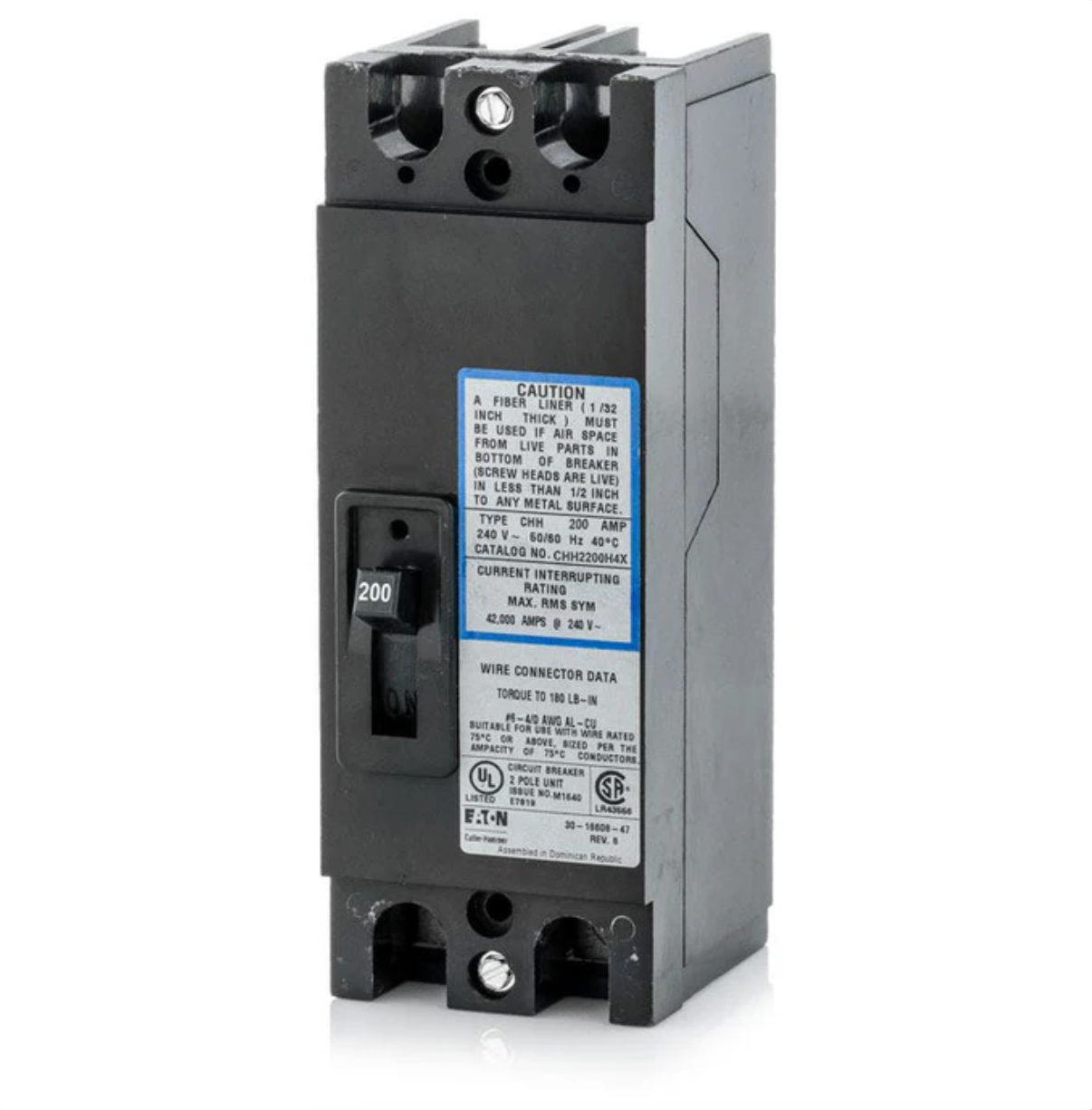

The Eaton CHH2200H4X is a 2-pole thermal magnetic molded case circuit breaker designed for reliable overcurrent and short-circuit protection in residential and light commercial applications. Rated at 200 amps and 240 volts, it offers a 42 kAIC interrupting capacity for dependable performance under fault conditions. Its bolt-on connection type and compact CHH frame make it ideal for modular metering stacks and panelboard installations.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Eaton |
| Category |
Circuit Breakers |
| Part Number |
CHH2200H4X |
| Subcategory |
Molded Case Circuit Breakers |
| Series |
CHH |
| Frame Type |
CHH Frame |
| Number of Poles |
2 |
| Amperage Rating |
200 A |
| Voltage Rating |
120/240 VAC |
| Interrupting Rating |
42 kAIC @ 240 VAC |
| Trip Type |
Thermal Magnetic |
| Trip Function |
Long-Time and Instantaneous (LI) |
| Connection Type |
Bolt-On |
| Mounting Method |
Bolt-On |
| Used With |
37MM and 37SS Modular Metering Stacks |
| Phase |
Single Phase |
| Certifications |
UL 489 Listed |
| Application |
Power Distribution / Main Breaker |
| Warranty |
Limited Lifetime |
| Dimensions (HxWxD) |
9 in x 5.5 in x 4.5 in |
| Weight |
4.5 lbs (2.04 kg) |
Information About CHH2200H4X
The CHH2200H4X is part of Eaton’s CHH Series, built for use in modular metering systems such as the 37MM and 37SS three-phase stacks. It features a thermal magnetic trip mechanism that combines long-time and instantaneous protection, ensuring precise fault response. The breaker’s bolt-on mounting design simplifies installation and enhances electrical contact integrity. Compliant with UL 489 standards, the CHH2200H4X provides durable, safe circuit protection in demanding electrical environments.
Key Features:
- Amperage Rating: Handles up to 200 amps for medium-load distribution applications.
- Voltage Rating: Designed for 120/240 VAC systems with stable performance.
- Interrupting Capacity: Provides 42 kAIC at 240 VAC for robust fault interruption.
- Trip Type: Thermal magnetic design with long-time and instantaneous (LI) trip functions.
- Mounting Method: Bolt-on configuration for secure and vibration-resistant installation.
- Frame Type: CHH frame suitable for modular metering stacks and main breaker configurations.
- Certifications: UL 489 compliant for verified safety and performance.
- Construction: Compact molded case ensures durability and efficient heat dissipation.
The CHH2200H4X delivers the reliability and precision required for safe, high-performance power distribution and overload protection.
