Description

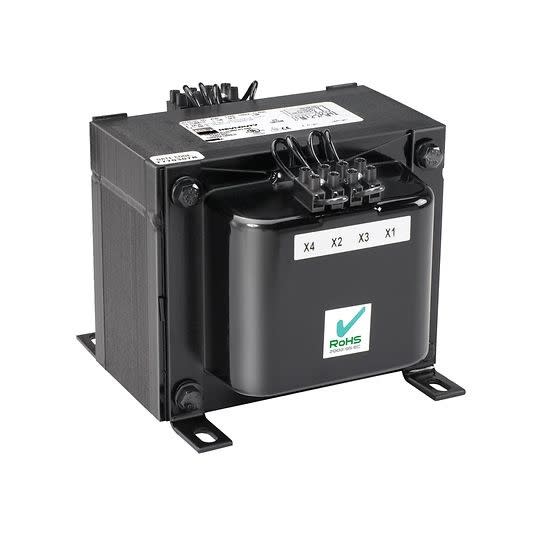

The SolaHD CE1500TH is a 1.5 kVA encapsulated control transformer designed for reliable industrial power conversion. It supports a wide range of input and output voltages with robust thermal and electrical performance.





Technical Specifications

Condition	New/Never Used Surplus
Brand	SolaHD
Category	Protection and Control Transformers
Part Number	CE1500TH
Subcatecory	Electrical Control Transformers
Configuration	Encapsulated
Power Rating	1.5 kVA
Primary Voltage Range	220–480 VAC
Secondary Voltage	120/240 VAC (Taps: 110, 115, 120 / 220, 230, 240)
Phase	Single Phase
Frequency	50/60 Hz
Number of Outlets	2
Mounting Hole Sizes	5 in, 5.31 in
Operating Temperature	Up to 80 °C
Weight	7.26 kgs





Information About CE1500TH

The CE1500TH is an encapsulated control transformer from SolaHD, offering a power rating of 1.5 kVA and single-phase operation. Built for industrial environments, this transformer supports multiple primary voltages including 220, 230, 240, 380, 400, 415, 440, 460, and 480 VAC, and delivers secondary outputs of 120/240 VAC (taps at 110/115/120 and 220/230/240). It is designed for 50/60 Hz frequency systems and features a rugged encapsulated configuration for enhanced protection against environmental stress. The CE1500TH can operate at temperatures up to 80°C, making it suitable for demanding control applications.

Key Features:

• High Power Rating: Delivers 1.5 kVA to support a variety of control systems

• Wide Voltage Compatibility: Accepts a broad range of primary voltages from 220 to 480 VAC

• Dual Secondary Outputs: Provides 120/240 VAC with multiple tap options for flexibility

• Encapsulated Design: Offers durability and protection in industrial environments

• Thermal Resilience: Operates at up to 80°C for high-demand applications

• Compact and Adaptable: Multiple mounting hole sizes support ease of installation

The CE1500TH provides dependable voltage transformation in control panels and automation systems where versatility and ruggedness are key.
