Description

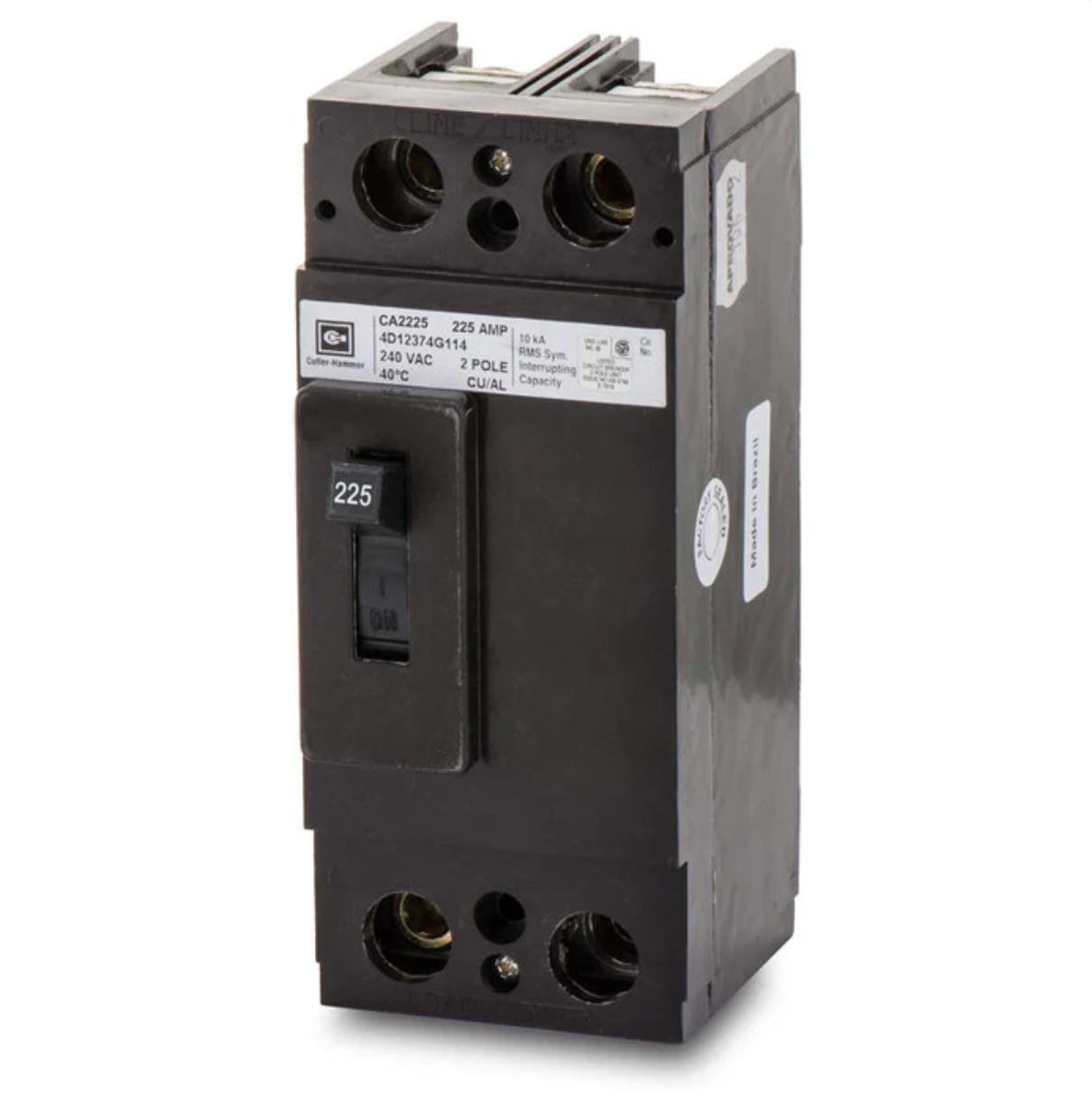

The Eaton Cutler-Hammer CA2225 is a 2-pole molded case circuit breaker engineered for precise and dependable overcurrent protection in electrical distribution systems. With a 225-amp current rating and 240 VAC voltage capacity, this breaker ensures reliable operation across demanding single-phase applications. Designed with thermal magnetic trip technology, the CA2225 provides consistent circuit protection and performance in industrial and commercial environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Eaton / Cutler-Hammer |
| Category |
Circuit Breakers |
| Part Number |
CA2225 |
| Subcategory |
Molded Case Circuit Breakers |
| Series |
AB DE-ION |
| Frame Type |
CA |
| Amperage Rating |
225 A |
| Voltage Rating |
240 VAC |
| Number of Poles |
2 |
| Phase |
Single |
| Interrupting Rating |
10 kAIC @ 240 VAC |
| Trip Function |
LI – Long-Time and Instantaneous |
| Protection Type |
Thermal Magnetic |
| Connection Type |
Feed-Thru |
| Terminal Type |
Line and Load Side Lugs |
| Operating Temperature |
40°C |
| Approvals |
UL, CSA |
| Mounting Type |
Panel Mount |
| Frequency Rating |
50/60 Hz |
| Weight |
0.45 kg |
Information About CA2225
The CA2225 is part of Eaton’s AB DE-ION Series, featuring a CA-frame molded case design for compact and durable circuit protection. It utilizes thermal magnetic trip technology with long-time and instantaneous (LI) functions for safeguarding against overloads and short circuits. This 2-pole breaker supports feed-thru connections, making it adaptable for a variety of panel and distribution installations. UL and CSA approvals ensure compliance with industry safety standards, providing a reliable choice for power management systems.
Key Features:
- High Current Capacity: Rated at 225 amps for high-load single-phase applications.
- Voltage Rating: Supports up to 240 VAC for standard power distribution systems.
- Interrupting Capacity: 10 kAIC at 240V for secure short-circuit interruption.
- Trip Function: Thermal magnetic LI trip (Long-Time and Instantaneous) for dependable protection.
- Connection Type: Feed-thru terminals for efficient wiring and installation.
- Certifications: UL Listed and CSA Approved for compliance and safety assurance.
- Operating Temperature: Rated for continuous performance at 40°C.
- Construction: Compact CA frame design for space-constrained installations.
The CA2225 delivers the reliability and precision required for stable and safe electrical circuit protection in industrial and commercial systems.
