Description

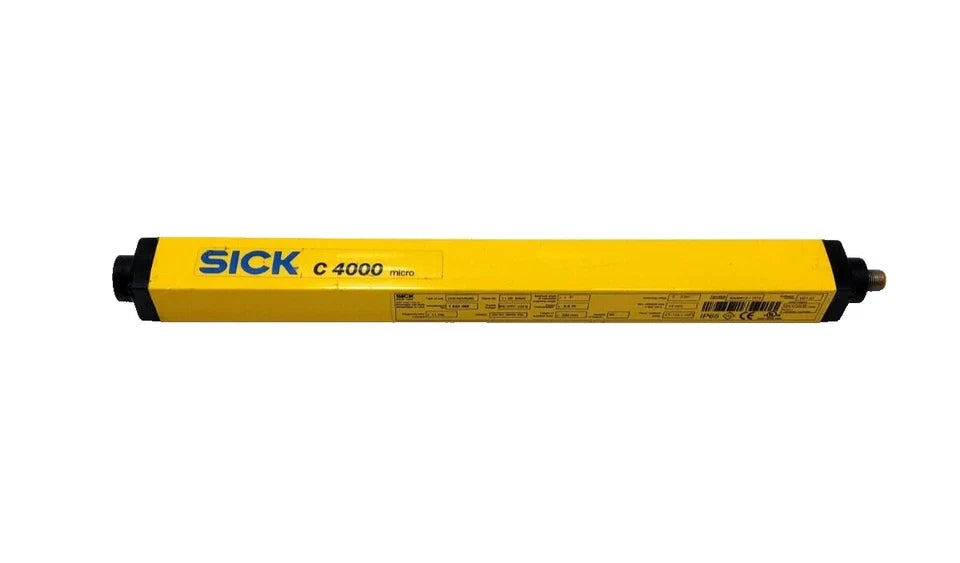

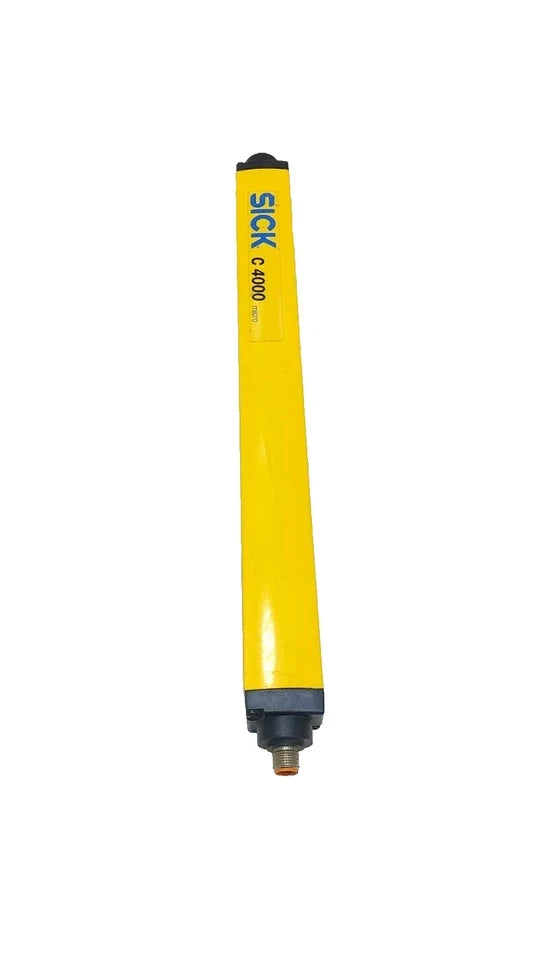

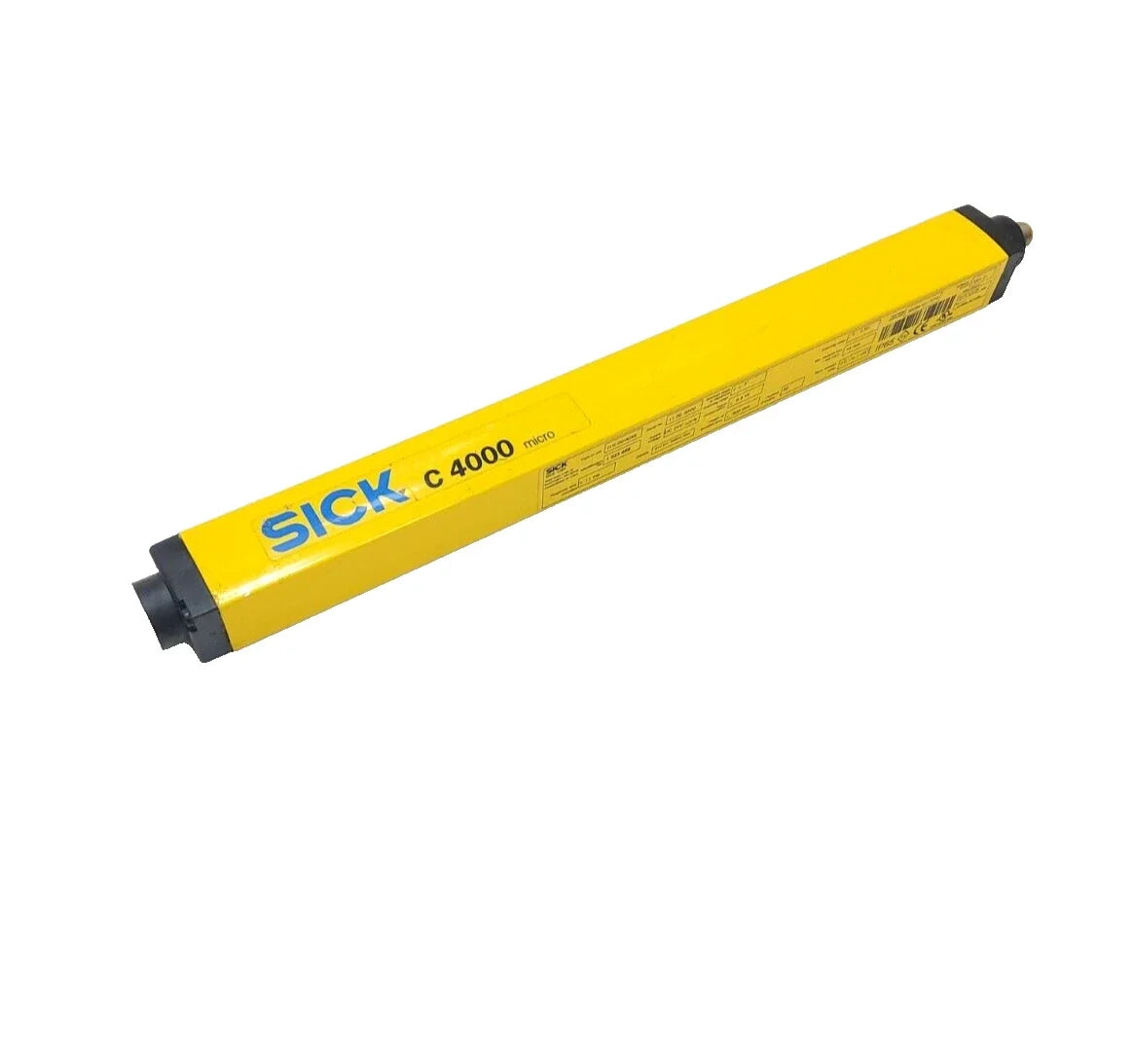

The SICK C41E-0301AG300 is a C4000 Micro safety light curtain receiver designed for short-range finger protection in compact machine safety applications. It provides high-resolution detection and certified Type 4 safety performance within a slim and space-efficient housing.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
SICK |
| Category |
Machine Safety |
| Part Number |
C41E-0301AG300 |
| Subcategory |
Safety Light Curtain Receivers |
| Series |
C4000 Micro |
| System Part |
Receiver |
| Protection Type |
Finger Protection |
| Resolution |
14 mm |
| Protective Field Height |
300 mm |
| Scanning Range |
Up to 2.5 m |
| Synchronization |
Optical Synchronization |
| Safety Type |
Type 4 (IEC 61496-1) |
| Performance Level |
PL e (EN ISO 13849) |
| Safety Integrity Level |
SIL 3 (IEC 61508) |
| Safety Category |
Category 4 (EN ISO 13849) |
| PFHD |
15 × 10⁻⁹ per hour |
| Mission Time (TM) |
20 years |
| Protection Class |
Class III (IEC 61140) |
| Supply Voltage |
24 VDC (19.2–28.8 VDC) |
| Ingress Protection |
IP65 |
| Operating Temperature |
-30°C to +55°C |
| Storage Temperature |
-30°C to +70°C |
| Humidity Range |
15% to 95%, Non-Condensing |
| Housing Material |
Aluminum Extruded Profile |
| Housing Cross-Section |
33.5 mm × 28.5 mm |
| Weight |
385 g |
Information About C41E-0301AG300
The C41E-0301AG300 is part of SICK’s C4000 Micro safety light curtain series, developed for compact machinery requiring high-resolution finger protection. This receiver is engineered to operate as a matched component within a Type 4 safety system, ensuring reliable detection and fault monitoring. It meets stringent international safety standards, including PL e and SIL 3, supporting use in safety-critical industrial environments. Its slim aluminum housing allows installation in confined spaces while maintaining robust environmental protection.
Key Features
- 14 mm High-Resolution Detection: Enables precise finger protection for close-proximity hazardous areas.
- Type 4 Safety Architecture: Designed to meet the highest machine safety requirements under IEC and ISO standards.
- PL e And SIL 3 Compliance: Supports advanced functional safety systems in high-risk applications.
- Compact Protective Height: 300 mm sensing field optimized for small access openings and localized protection.
- Optical Synchronization: Ensures stable and accurate operation with the corresponding transmitter.
- Slim Aluminum Housing: Space-saving extruded profile supports installation in tight machine designs.
- Wide Environmental Tolerance: Maintains reliable performance across extended temperature and humidity ranges.
The C41E-0301AG300 delivers the reliability and precision required for compact, high-performance machine safety and finger protection applications.
