Description

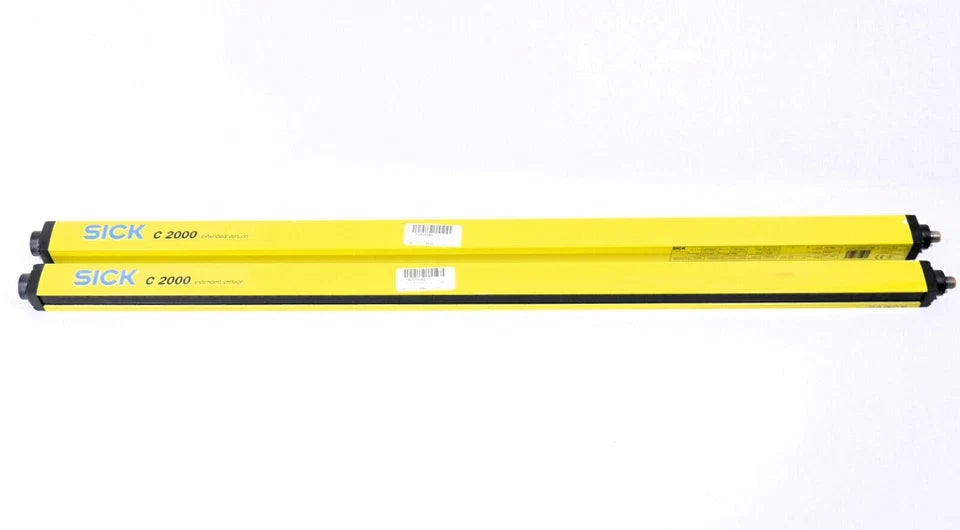

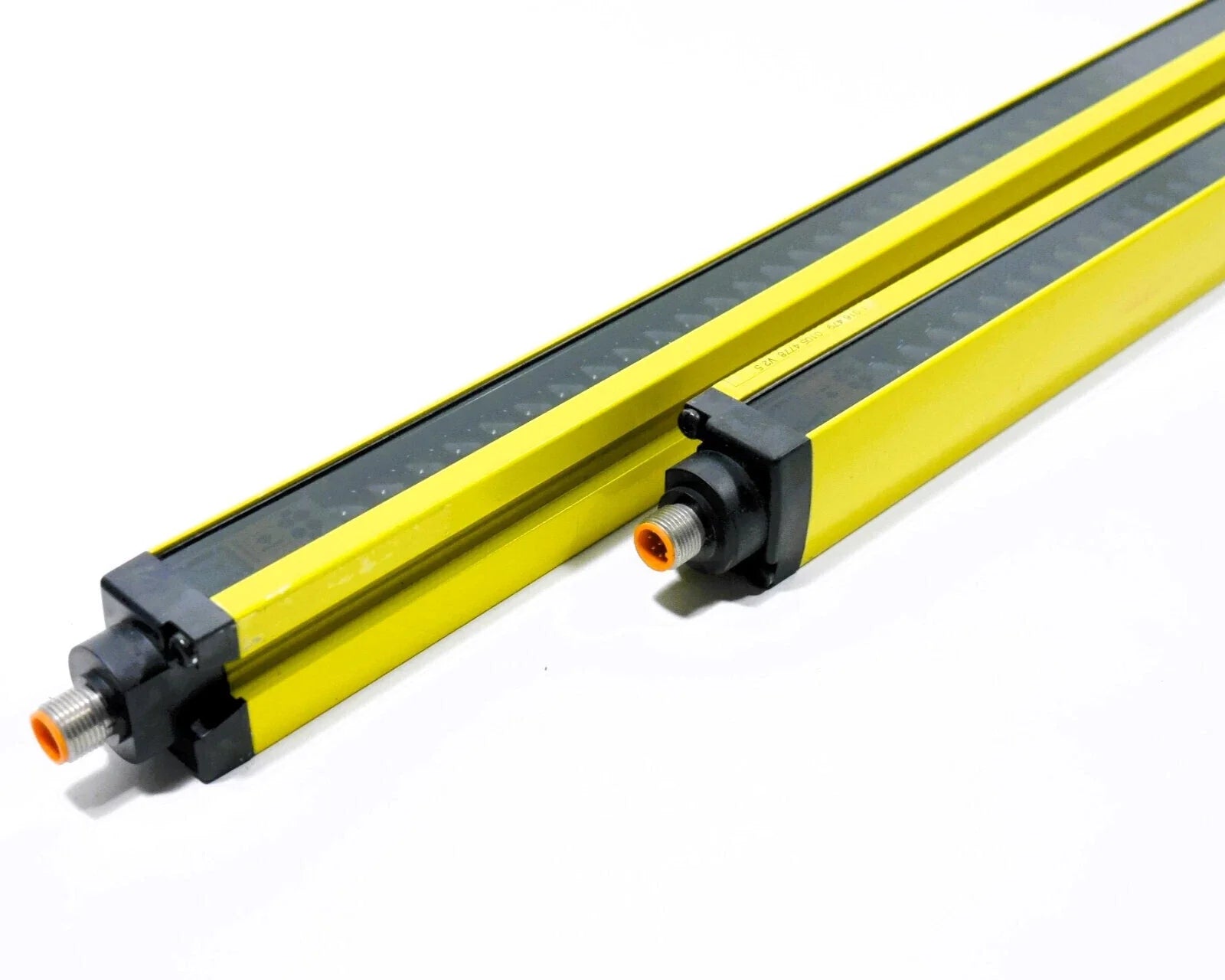

The SICK C20S-075103A11 is a Type 2 safety light curtain sender designed to generate an infrared protective field for industrial machine safeguarding. It provides a 750 mm protective height with 40 mm resolution, enabling reliable detection of access into hazardous areas. This sender unit is intended for use with a compatible C20 series receiver in safety monitoring applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
SICK |
| Category |
Safety Systems |
| Part Number |
C20S-075103A11 |
| Subcategory |
Light Curtain |
| Product Type |
Safety light curtain sender |
| Series |
C20 |
| Safety Type |
Type 2 |
| Protective Height |
750 mm |
| Resolution |
40 mm |
| Scanning Range |
Up to 6 m |
| Operating Voltage |
24 VDC |
| Connection Type |
8-pin M12 male connector |
| Ingress Protection |
IP65 |
| Application |
Industrial machine safeguarding |
| Manufacturer Status |
Discontinued by manufacturer |
| Weight |
1.85 lbs |
Information About C20S-075103A11
The C20S-075103A11 is part of SICK’s C20 safety light curtain series, engineered for cost-effective protection of low-risk industrial applications. Its compact and robust design supports stable beam transmission and consistent performance in production environments. The sender integrates with corresponding C20 receivers to form a complete electro-sensitive protective equipment system. Typical usage includes packaging machines, assembly equipment, and automated workstations requiring Type 2 safety compliance.
Key Features:
- Type 2 safety classification: Designed for safeguarding low-risk machinery and access zones.
- Sender unit only: Emits infrared beams for protective field generation when paired with a receiver.
- 40 mm resolution: Suitable for hand and body detection applications.
- 750 mm protective height: Covers medium access openings on industrial equipment.
- C20 series compatibility: Designed specifically for use with SICK C20 receivers.
- Infrared optical system: Provides stable and reliable beam transmission.
- Industrial-grade housing: Built for continuous operation in factory environments.
The C20S-075103A11 delivers the reliability and precision required for consistent personnel protection in Type 2 machine safeguarding systems.
