Overview

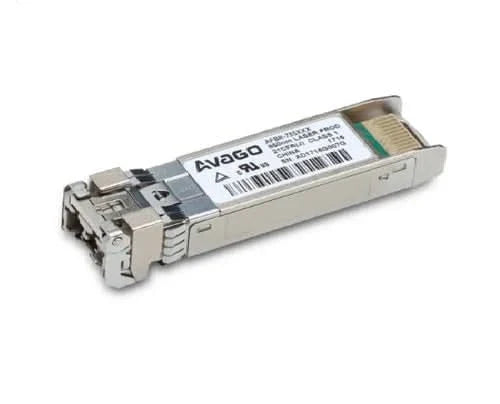

The Brocade XBR-000193 compatible 16G Fibre Channel SWL SFP+ Transceiver is a small form-factor optic designed for 16G Fibre Channel applications, supporting up to 100m on OM3 multimode fiber. It features a reliable 850nm VCSEL transmitter and is compatible with Brocade SAN switches, routers, and NICs, meeting multiple Fibre Channel specifications.
Specifications
Model Number: XBR-000193
Brand: Broadcom
Alt Part Number(s):XBR-000193
Product Type:Transceiver Module
Technical Description
Brand: Broadcom
Model Number: XBR-000193
Form Factor: SFP+
Data Rate: 14.025 Gb/s
Wavelength: 850 nm
Max Distance: 100m on OM3
Optical Components: VCSEL/PIN
Receiver Sensitivity: < -10.5 dBm
Connector: LC Duplex
Compliance: RoHS, IEC/EN 61000-4-2
Operating Temperature: 0°C to 70°C
Application: High-speed SAN, switches, NICs, storage systems
Boost your enterprise performance with the Broadcom XBR-000193 Brocade 16Gb/s SWL SFP+ Transceiver Module—ORDER TODAY!
*
