[shortdesc]
- Dual-port 25 Gb/s Ethernet
- PCI Express 3.0 x8 interface
- OCP 3.0 compliant
- Supports SFP28 optical transceivers or copper direct-attach cables
- Low power consumption
- High performance
- Ideal for data center, cloud computing, and high-performance computing applications
[/shortdesc]
[properties]
| Product Name |
Broadcom BCM957414N4140C Network Adapter |
|
| Product Description |
Dual-port 25 Gb/s Ethernet adapter with SFP28 compatibility, designed for data centers, cloud, and high-performance computing applications. |
| Interface |
PCI Express 3.0 x8 |
SATA 6 Gbps |
| OCP Compliance |
OCP 3.0 compliant |
|
| Connector Type |
Dual SFP28 |
|
| Compatibility |
Supports SFP28 optical transceivers and copper direct-attach cables |
|
| Controller |
Broadcom BCM57414 25GbE MAC |
|
| Intended Application |
Ideal for data centers, cloud computing, and high-performance computing environments |
|
| Form Factor |
Small form factor with pluggable media interface |
|
| Network Speed |
2x 25GbE |
|
[/properties]
[specifications]
| Ethernet Speed |
Supports 25 Gb/s and 10 Gb/s |
| Connector Type |
SFP28 (2 ports) |
| Host Interface |
PCI Express 3.0 x8 |
| Compliance |
SFF-8402 standard compliant |
| RDMA Support |
Yes |
| Operating Temperature Range |
0°C to 55°C (32°F to 131°F) |
| Virtual Functions |
Supports up to 128 VFs |
| Function-Level Reset |
FLR support |
| Compatible Transceivers |
Compatible with 25G SFP28 optical transceivers and direct-attach cables |
| Design Standard |
OCP 3.0 compliant |
[/specifications]

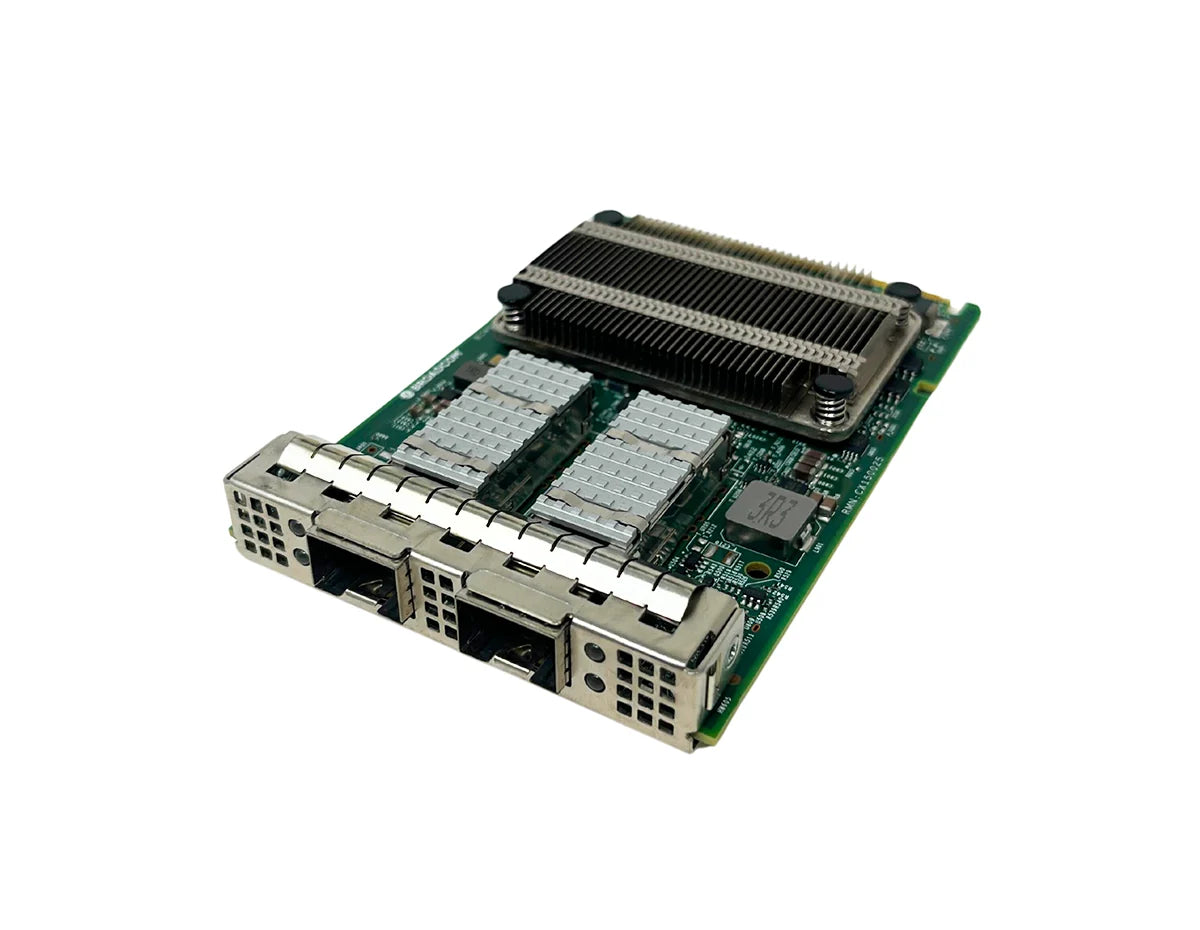

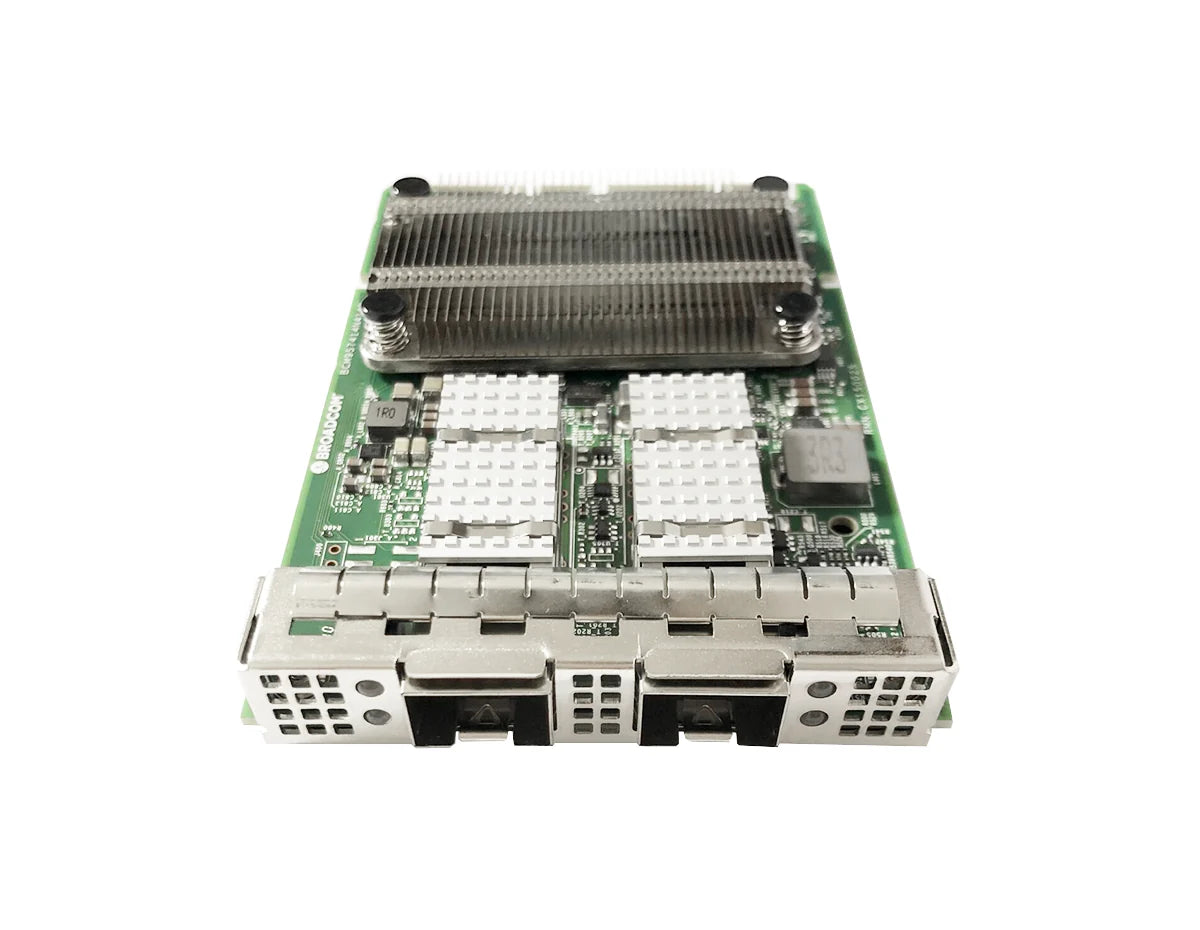

Broadcom BCM957414N4140C Network Adapter
The BCM957414N4140C is a network adapter with dual 25 Gb/s ports, designed to adhere to the Open Compute Project (OCP) 3.0 Design Specification in a compact form factor, featuring two SFP28 network connectors. This adapter is compatible with SFP28 optical modules and copper direct-attach cables and utilizes the Broadcom BCM57414 25GbE MAC controller with an integrated dual-channel 25GbE SFI transceiver.
Quick Specs:
-
x8 PCI Express 3.0 compliant
-
Dual-port pluggable media interface, which is compatible with a 25G SFP28 optical transceiver or a copper direct-attach cable
-
Fully compliant with the SFF-8402 standard
-
Function-Level Reset (FLR) support.
Please see the related tabs for the BCM957414N4140C datasheet and compatible accessories.
