[shortdesc]
- Connectors: Two SFF-8643, Supports NVMe SAS and SATA devices, Ports: 8 internal
[/shortdesc]
[properties]
| Product Name |
Broadcom LSI 9440-8i PCIe 3.1 x8 SAS3408 8 Internal Ports MegaRAID Tri-Mode Storage Adapter |
| Description |
The Broadcom LSI 9440-8i is the industry's first hardware RAID adapter with Tri-Mode SerDes Technology, providing high-performance storage connectivity and flexible system designs supporting NVMe, SAS, and SATA devices. |
| Manufacturer Part # |
05-50008-02 |
| Ports |
8 internal |
| Connectors |
Two SFF-8643 |
| Storage Interface Support |
SAS, SATA, PCIe (NVMe) |
| Cache Memory |
N/A |
| Cache Protection |
N/A |
| I/O Processor / SAS Controller |
SAS3408 |
| Host Bus Type |
PCIe 3.1 x8 |
| Management Software |
LSI Storage Authority (LSA), StorCLI (command-line interface), HII (UEFI Human Interface Infrastructure) |
[/properties]
[specifications]
| Tri-Mode Connectivity |
Supports NVMe, SAS, and SATA devices |
| RAID Levels |
0, 1, 5, 6, 10, 50, 60 |
| Max PCIe (NVMe) Direct Attach Devices |
Two x4, Two x2 (Direct Attached Only) |
| Max Devices Per Controller |
SAS/SATA: 63, NVMe: 2 |
| Physical Dimensions |
6.127″ x 2.712″ (155.65 mm x 68.90 mm) |
| Typical Power |
10.05W |
| Airflow |
200 LFM at 55°C |
| Operating Voltage |
+12V +/-8%; 3.3V +/-9% |
| Operating Conditions |
0°C to 55°C, 20 to 80% non-condensing |
| Storage Conditions |
-45°C to 105°C, 5 to 95% non-condensing |
| MTBF |
>3,000,000 hours at 40°C |
| Regulatory Certifications |
USA (FCC 47 CFR part 15 Subpart B, class B); Canada (ICES-003, Class B); Taiwan (CNS 13438); Japan (VCCI V-3); Australia/New Zealand (AS/NZS CISPR 22); Korea (RRA no 2013-24 & 25); Europe (EN55022/EN55024); Safety (EN/IEC/UL 60950); RoHS; WEEE |
| OS Support |
Microsoft Windows. Contact Oracle support for Oracle Solaris driver or software support. See www.broadcom.com/support/download-search for details on versions. |
[/specifications]

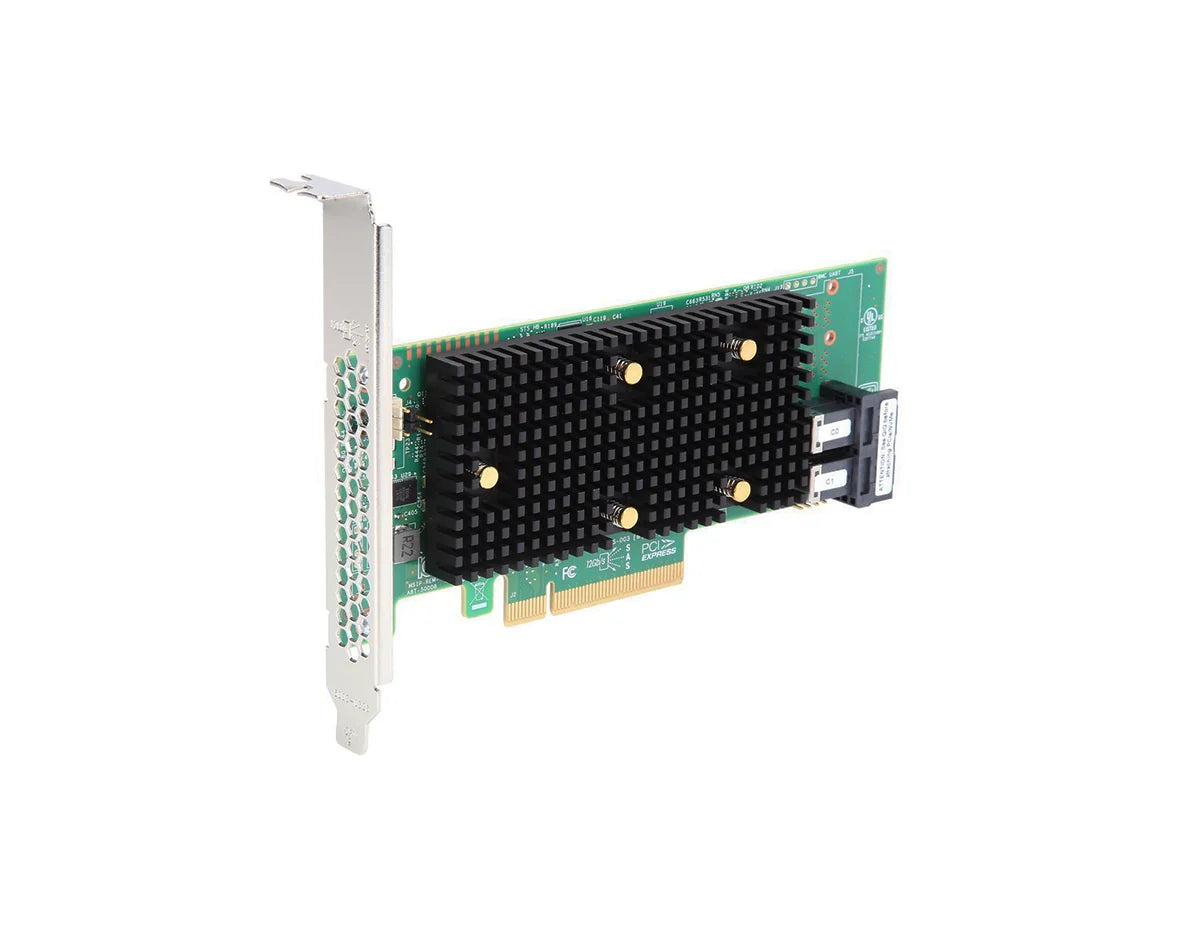

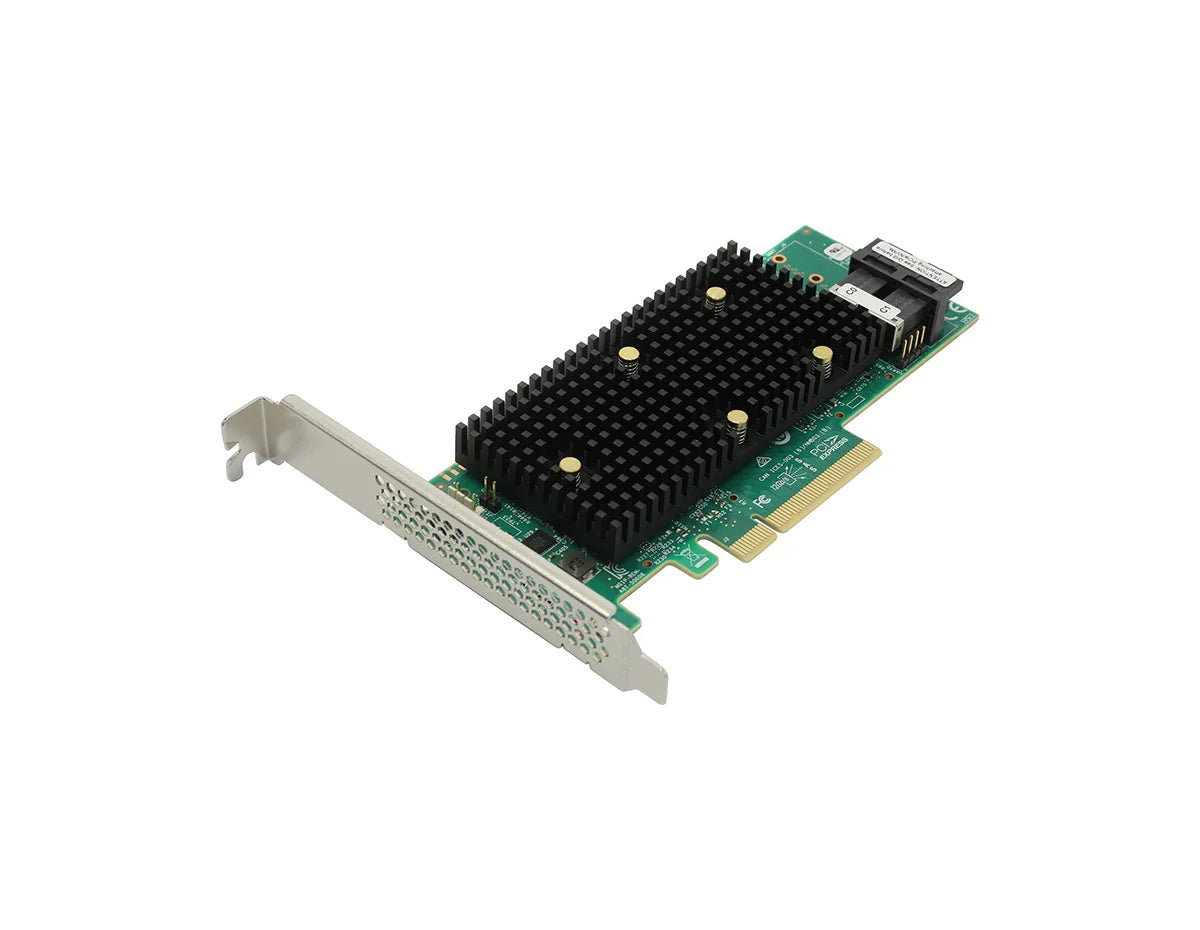

Broadcom LSI 9440-8i PCIe 3.1 x8 SAS3408 8 Internal Ports MegaRAID Tri-Mode Storage Adapter
The Broadcom LSI 9440-8i is the industry's first hardware RAID adapter with Tri-Mode SerDes Technology, providing high performance storage connectivity and flexible system designs supporting NVMe, SAS, and SATA devices.
Key Features
- Tri-Mode Storage Interface Ports
- Supports NVMe, SAS, and SATA devices
- RAID levels: 0, 1, 5, 6, 10, 50, and 60
- CacheVault flash back-up at power fail
- PCIe 3.1 Host Interface with x8, x4, x2, x1 PCIe lanes
Specifications
-
Product: 9440-8i
-
Ports: 8 internal
-
Connectors: Two SFF-8643
-
Storage Interface Support: SAS, SATA, PCIe (NVMe)
-
Max PCIe (NVMe) Direct Attach Devices: Two x4, Two x2 (Direct Attached Only)
-
Max Devices Per Controller: SAS/SATA: 63, NVMe: 2
-
Host Bus Type: PCIe 3.1 x8
-
Physical Dimensions: 6.127″ x 2.712″ (155.65 mm x 68.90 mm)
-
Typical Power: 10.05W
-
Operating Conditions: 0°C to 55°C, 20 to 80% non-condensing
-
Storage Conditions: -45°C to 105°C, 5 to 95% non-condensing
-
MTBF (Calculated): >3,000,000 hours at 40°C
-
Operating Voltage: +12V +/-8%; 3.3V +/-9%
-
Management Software: LSI Storage Authority (LSA), StorCLI (command-line interface), HII (UEFI Human Interface Infrastructure)
