Description

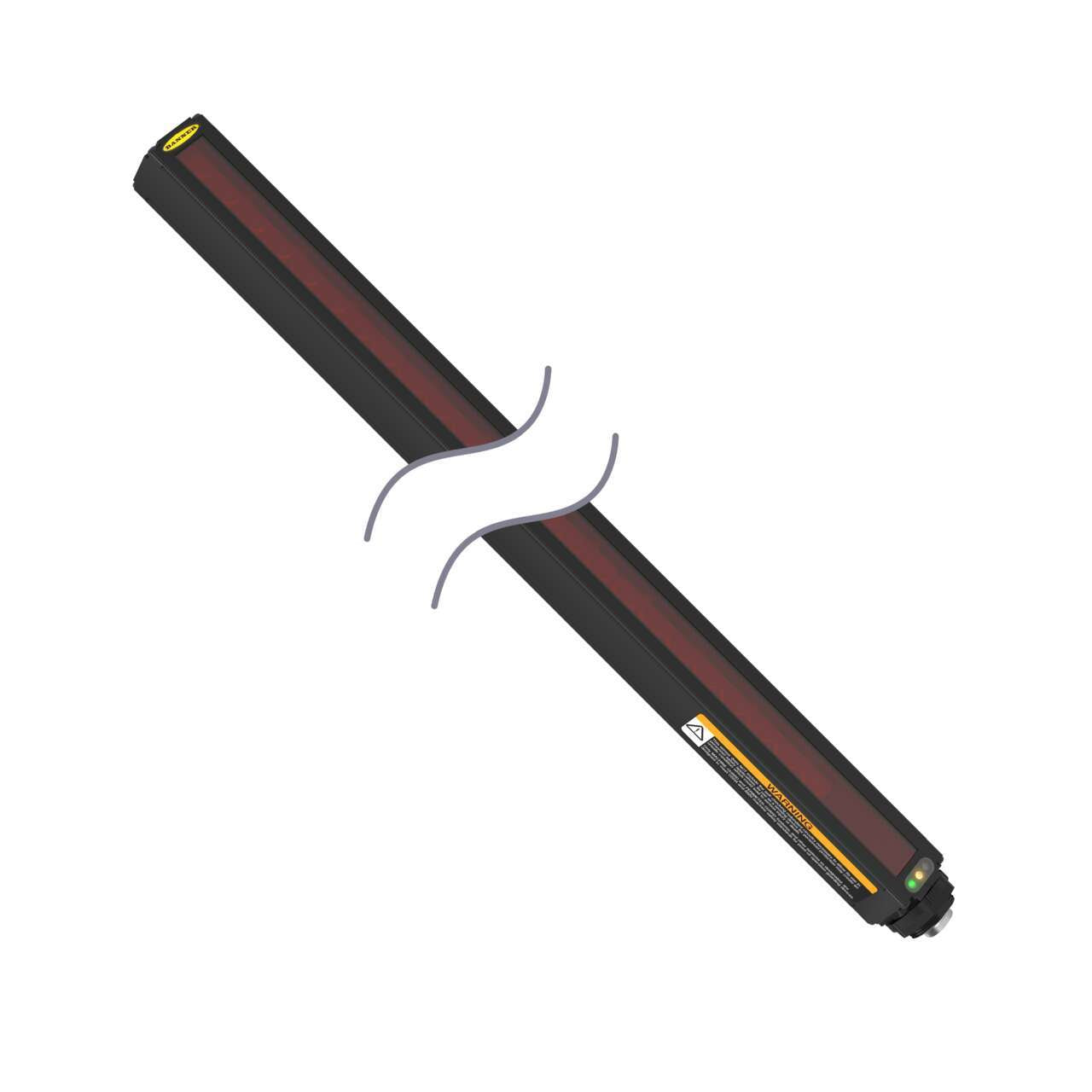

The Banner Engineering BMRL1216A is a MINI-ARRAY safety light curtain receiver designed for object detection and machine guarding applications. It features 16 beams with 19 mm spacing and operates with a matching emitter over distances up to 17 meters. The device is intended for industrial automation environments requiring reliable optical sensing.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Banner Engineering |
| Category |
Sensors |
| Part Number |
BMRL1216A |
| Subcategory |
Light Curtain |
| System Type |
Receiver |
| Series |
MINI-ARRAY |
| Number of Beams |
16 |
| Beam Spacing |
19 mm |
| Array Length |
286 mm |
| Housing Length |
356 mm |
| Operating Range |
0.9 to 17 m |
| Supply Voltage |
12 VDC |
| Sensing Mode |
Receiver |
| Housing Material |
Aluminum |
| Operating Temperature |
-20°C to +70°C |
| Maximum Humidity |
95% RH |
| Cable Requirement |
2 quick-disconnect cables (required) |
| Weight |
1.76 lbs |
Information About BMRL1216A
The BMRL1216A is a receiver unit from the Banner Engineering MINI-ARRAY family of optical safety sensors. It is designed as part of a three-piece system and must be paired with a compatible emitter and quick-disconnect cables. The unit is housed in a durable aluminum enclosure suitable for industrial conditions. It supports multi-beam detection for monitoring defined areas around machinery and automated equipment.
Key Features:
-
MINI-ARRAY receiver design: Intended for use with compatible emitters
-
16-beam configuration: Provides consistent detection across the sensing area
-
19 mm beam spacing: Suitable for object and presence detection
-
Operating range up to 17 m: Flexible installation distances
-
Aluminum housing: Designed for industrial environments
-
Wide temperature tolerance: Operates from -20°C to +70°C
-
Quick-disconnect compatibility: Requires two external QD cables
The BMRL1216A delivers the reliability and precision required for industrial optical sensing and light curtain systems.
