[shortdesc]
- Reliable 5 MP indoor surveillance, Excellent image quality in 5 MP, Lightfinder 2.0 and Forensic WDR, Exchangeable lens, Analytics with deep learning, Built-in cybersecurity with Axis Edge Vault
[/shortdesc]
[properties]
| Product Name |

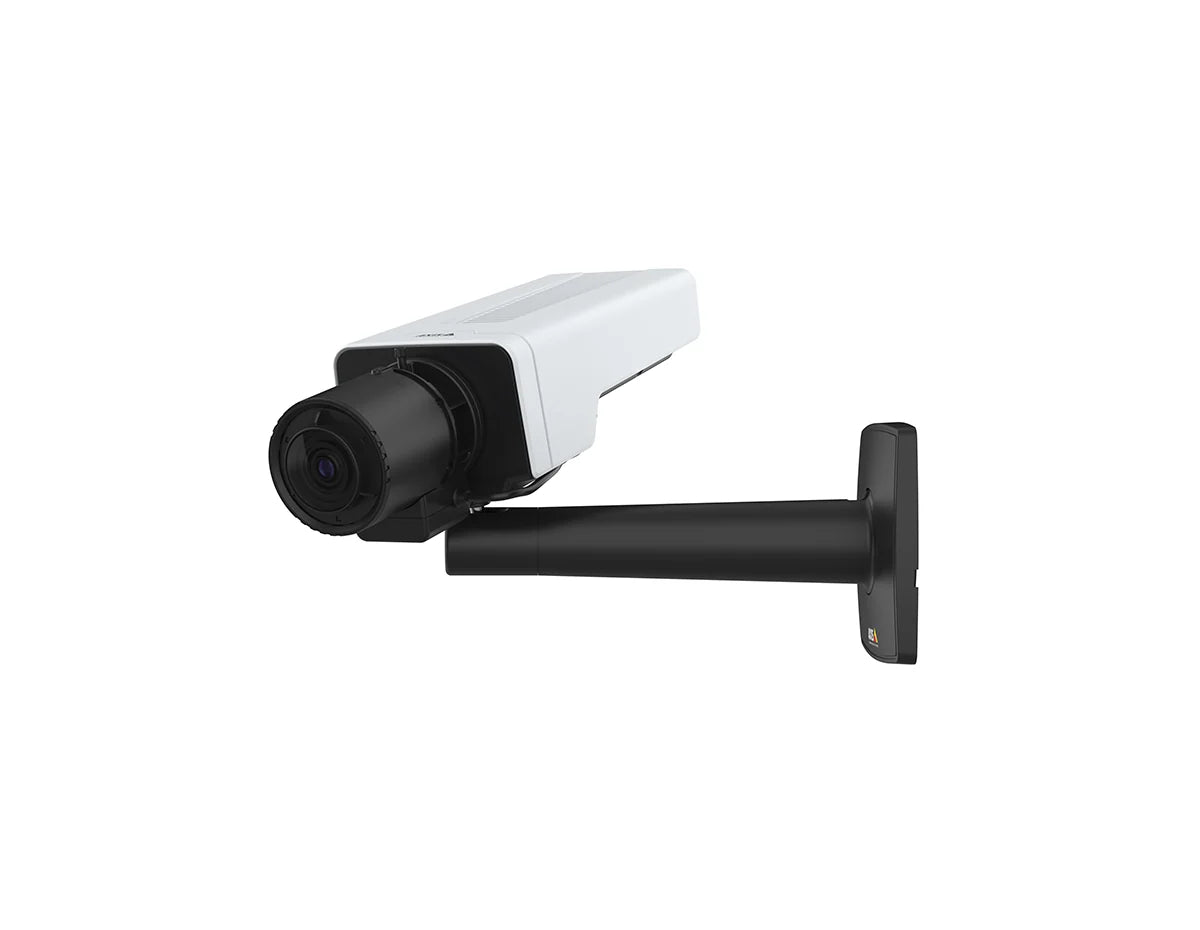

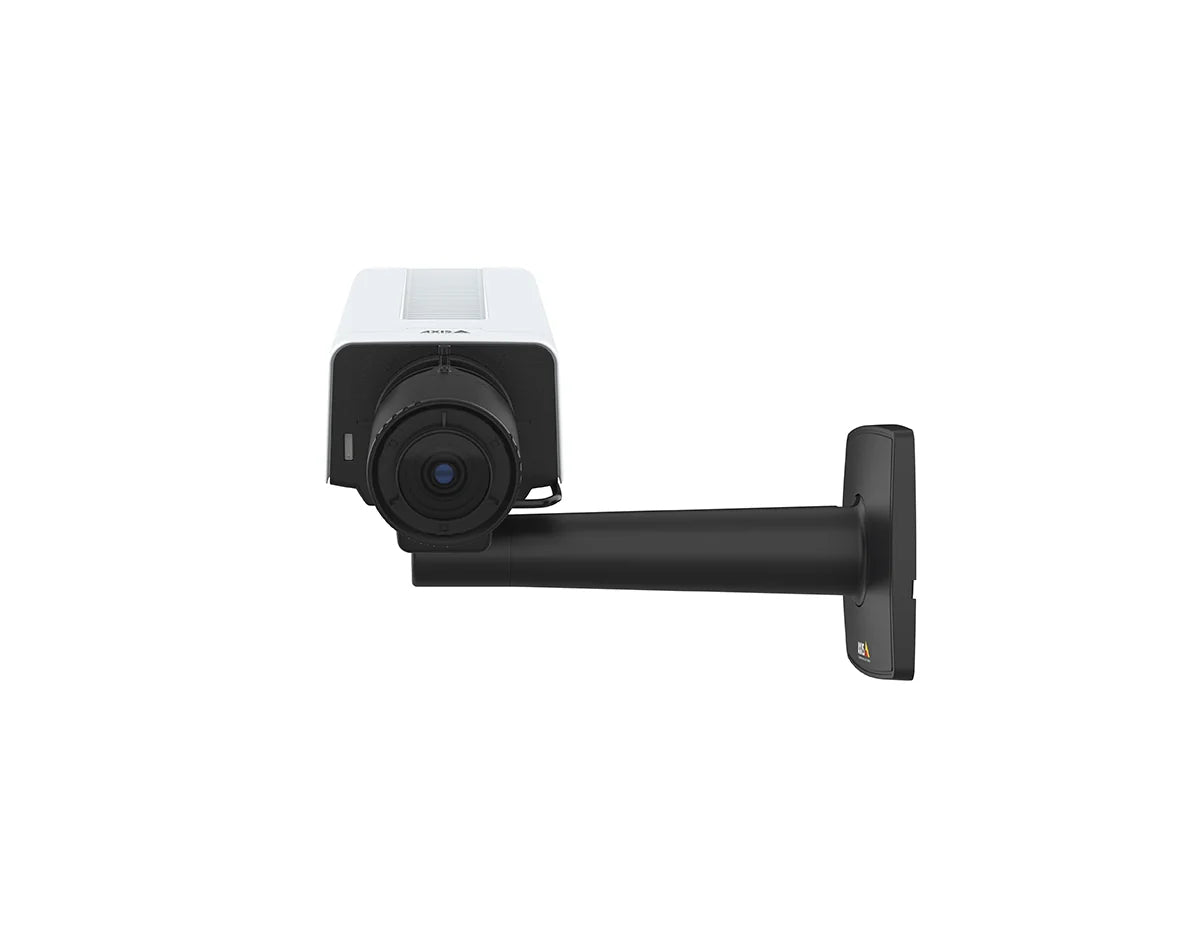

AXIS P1387 Box Camera |
| Product Description |
Reliable 5 MP indoor surveillance camera with advanced imaging technologies and deep learning analytics |
| Image Sensor |
5 MP (2592x1944) 1/2.7” progressive scan RGB CMOS |
| Lens |
Varifocal 2.8–13 mm lens with P-Iris control; exchangeable CS-mount lens |
| Horizontal Field of View |
112°–24° |
| Vertical Field of View |
80°–18° |
| Frame Rate |
Up to 60 fps at 5 MP resolution |
| Day/Night Functionality |
Automatic IR-cut filter for day and night modes |
| Wide Dynamic Range |
Forensic WDR for clarity in varying light conditions |
| Low-Light Performance |
Lightfinder 2.0 technology ensures true colors in low-light environments |
| Video Compression |
Supports H.264, H.265 with Zipstream, and Motion JPEG formats |
| Analytics |
AXIS Object Analytics, video motion detection, shock detection, and active tampering alarm |
| Cybersecurity |
Axis Edge Vault with a secure element and an Axis Cryptographic Module validated to FIPS 140-2 Level 1 |
| Audio Support |
Two-way audio with built-in microphone |
| Local Storage |
microSD/SDHC/SDXC card slot for edge storage |
| Operating Conditions |
Designed for temperatures ranging from -10°C to +55°C (14°F to 131°F) |
| Power Supply |
Powered by PoE Class 3 (IEEE 802.3af) or 10–28 V DC |
| Mounting |
Compatible with various mounts for flexible installation |
| Environmental Ratings |
Indoor use; not rated for outdoor environments |
| Additional Features |
Supports corridor format, barrel distortion correction, defogging, electronic image stabilization, and scene profiles |
[/properties]
[specifications]
| Image Sensor |
1/2.7” progressive scan RGB CMOS |
| Lens |
Varifocal 2.8–13 mm, F1.4; remote zoom and focus with P-Iris control |
| Horizontal Field of View |
112°–24° |
| Vertical Field of View |
80°–18° |
| Minimum Illumination |
Color: 0.1 lux at 50 IRE, F1.4; B/W: 0.02 lux at 50 IRE, F1.4 |
| Shutter Speed |
1/66500 s to 2 s |
| Video Streaming |
Multiple, individually configurable streams in H.264, H.265, and Motion JPEG |
| Noise Reduction |
Spatial (2D) and temporal (3D) noise reduction |
| Audio Input/Output |
1 input, 1 output; built-in microphone |
| Local Storage |
microSD/SDHC/SDXC card slot |
| Operating Temperature |
-10°C to +55°C (14°F to 131°F) |
| Power Consumption |
Typical ~4.24 W and max ~11.73 W (PoE) |
| Dimensions |
Height: 59 mm (2.3 in); Width: 75 mm (3.0 in); Length: 175 mm (6.9 in) |
| Weight |
0.8 kg (1.8 lb) |
| Compliance |
Certifications: CE, FCC, IC, RCM, VCCI, KC, UL, CB, IEC/EN/UL 62368-1 |
[/specifications]This box camera delivers excellent 5 MP image quality. Ideal for various surveillance situations, it offers an exchangeable lens so you can change the lens to suit your needs. Plus, it’s designed for use outdoors in housing.
| Feature |
AXIS P1385-E |
AXIS P1387 |
AXIS P1387-B |
AXIS P1387-BE |
AXIS P1387-LE |
AXIS P1388 |
AXIS P1388-B |
AXIS P1388-BE |
AXIS P1388-LE |
| Max video resolution |
1920x1080 |
2592x1944 |
2592x1944 |
2592x1944 |
2592x1944 |
3840x2160 |
3840x2160 |
3840x2160 |
3840x2160 |
| Max frames per second |
50/60 |
50/60 |
50/60 |
50/60 |
50/60 |
50/60 |
50/60 |
50/60 |
50/60 |
| Horizontal field of view |
121 - 26 |
112 - 24 |
112 - 24 |
112 - 24 |
112 - 24 |
122 - 46 |
122 - 46 |
122 - 46 |
122 - 46 |
| Alarm inputs/outputs |
2/2 |
2/2 |
2/2 |
2/2 |
2/2 |
2/2 |
2/2 |
2/2 |
2/2 |
| Lightfinder |
Lightfinder 2.0 |
Lightfinder 2.0 |
Lightfinder 2.0 |
Lightfinder 2.0 |
Lightfinder 2.0 |
Lightfinder 2.0 |
Lightfinder 2.0 |
Lightfinder 2.0 |
Lightfinder 2.0 |
| Zipstream |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
| Lens mount |
CS |
CS |
CS |
CS |
CS |
CS |
CS |
CS |
CS |
| Two-way audio |
– |
– |
– |
– |
– |
– |
– |
– |
– |
| Electronic image stabilization |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
