Compact Panoramic Surveillance with AI Analytics

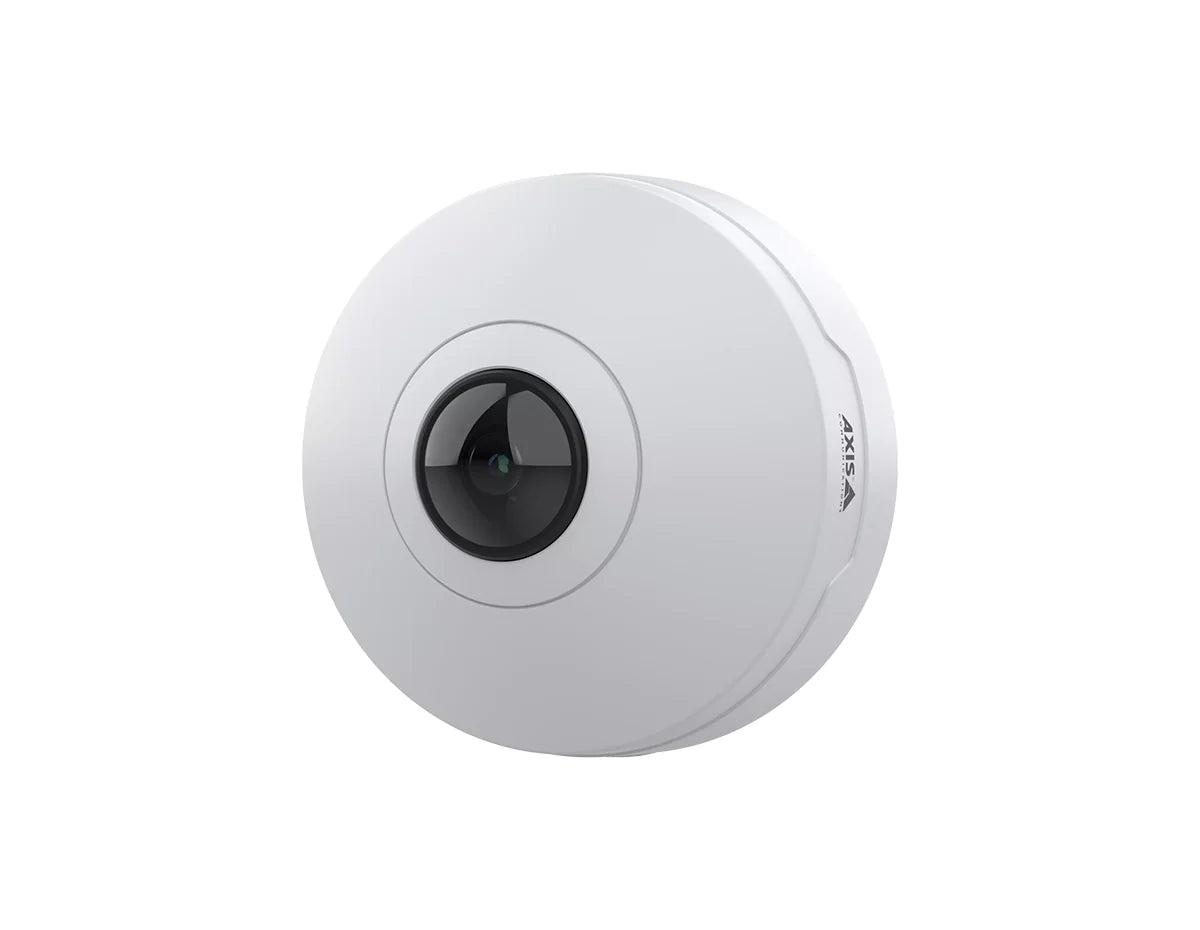

The Axis M4328-P is a powerful 12MP indoor fisheye camera designed to deliver seamless 360° or 180° panoramic coverage without blind spots. Built on the ARTPEC-8 chipset, it provides edge-based deep learning analytics, advanced object detection, and reliable cybersecurity protections. With its discreet design, digital roll functionality, and support for digital PTZ, the M4328-P simplifies installation and enhances situational awareness across multiple environments.
Key Benefits & Features
-
Panoramic coverage: 360° or 180° fisheye view at up to 30 fps (without WDR), with support for up to four dewarped view areas simultaneously and digital PTZ control.
-
High-resolution imaging: 12 MP stereographic lens with automatic IR-cut filter and low-light performance down to 0.19 lux (color) / 0.04 lux (B/W).
-
Edge AI analytics: ARTPEC-8 SoC with deep learning unit powering Axis Object Analytics, intrusion detection, scene metadata, and video motion detection.
-
Forensic WDR & Zipstream: Captures critical details in challenging lighting while reducing bandwidth and storage needs by up to 50%.
-
Cybersecurity hardened: Axis Edge Vault hardware platform with secure boot, signed video, encrypted keystore, and FIPS 140-2/CC EAL6+ certified secure element.
Ideal Use Cases
- Retail and shopping malls requiring 360° area monitoring with AI-powered analytics
- Office and corporate environments needing discreet indoor surveillance
- Healthcare and education facilities with strict privacy and security needs
- Public spaces such as airports, museums, and transit hubs requiring detailed situational awareness
Technical Specifications
-
Product ID: 02637-001 (Axis M4328-P)
-
Sensor: 1/2.3” progressive scan CMOS
-
Resolution: Up to 2992 x 2992 (12MP)
-
Frame Rate: Up to 30 fps (360° view, no WDR); up to 25 fps with Forensic WDR
-
Lens: 1.2 mm, F2.2, 182° horizontal/vertical FOV
-
Analytics: Axis Object Analytics, Axis Image Health, Axis Scene Metadata, Axis Video Motion Detection, active tampering alarm
-
WDR: Forensic WDR up to 120 dB
-
Power: PoE IEEE 802.3af/at, 3.5 W typical, 5.1 W max
-
Dimensions: 101 mm (4.0 in) diameter x 51 mm (2.0 in) height
-
Weight: 300 g (0.66 lb)
Upgrade to Smarter 360° Surveillance Today
The Axis M4328-P combines 12MP panoramic vision, AI-driven analytics, and advanced cybersecurity in a compact, easy-to-deploy form factor. Order today to enhance your surveillance strategy with powerful 360° coverage.
