[shortdesc]

• 12 MP outdoor-ready dome with audio capture, 12 MP sensor with 360 degree overview, Stereographic lens and Sharpdome 360, Lightfinder, Forensic WDR, OptimizedIR, Support for analytics with deep learning, 4 microphones with voice enhancer

[/shortdesc]

[properties]

Properties	AXIS M4308-PLE Panoramic Camera
Description	The AXIS M4308-PLE is a discreet 12 MP outdoor panoramic camera with audio capture. Offering a seamless 360° overview, it features Sharpdome 360 for sharp edges, Axis Object Analytics for deep learning-based analytics, and advanced light and IR technologies for clear imaging in challenging conditions. With four built-in microphones and a voice enhancer, it ensures comprehensive audio capture with noise suppression.
Product Family	AXIS M4308-PLE Panoramic Camera
Product Type	Network Camera

[/properties] [specifications]

Specifications	AXIS M4308-PLE Panoramic Camera
Camera
Image sensor	1/1.7” progressive scan RGB CMOS
Lens	1.3 mm, F2.4
	Horizontal field of view: 183°
	Vertical field of view: 183°
	Fixed iris, fixed focus, IR corrected
Day and night	Automatically removable infrared-cut filter
Minimum illumination	Color: 0.19 lux at 50 IRE, F2.4
	B/W: 0.04 lux at 50 IRE, F2.4
	0 lux with IR illumination on
Shutter speed	1/22000 s to 1 s
Camera angle adjustment	Digital roll: ±180°
System on chip (SoC)
Model	ARTPEC-7
Memory	2 GB RAM, 1 GB Flash
Compute capabilities	Deep learning processing unit (DLPU)
Video
Video compression	H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles
	H.265 (MPEG-H Part 2/HEVC) Main Profile
	Motion JPEG
Resolution	Overview: 2880x2880 to 160x160
	Panorama: 3840x2160 to 192x72
	Double Panorama: 3584x2688 to 512x288
	Quad view: 3584x2688 to 512x288
	View area 1–4: 2048x1536 to 256x144
	Corner right/left: 3200x1200 to 192x72
	Double corner: 2560x1920 to 480x480
	Corridor: 2560x1920 to 256x144
Frame rate	360° overview only, up to 2880x2880 without WDR: 25/30 fps
	@ 50/60 Hz
	360° overview and dewarped views up to max resolution with
	WDR: up to 12.5/15 fps @ 50/60 Hz
Video streaming	Multiple, individually configurable streams in H.264, H.265 and
	Motion JPEG
	Axis Zipstream technology in H.264 and H.265
	Controllable frame rate and bandwidth
	VBR/ABR/MBR H.264/H.265
	Low latency mode
Image settings	Compression, color saturation, brightness, sharpness, contrast,
	local contrast, white balance, day/night threshold, tone mapping,
	exposure control (including automatic gain control), exposure
	zones, Forensic WDR: up to 120 dB depending on scene, fine
	tuning of low-light behavior, dynamic text and image overlay,
	mirroring, digital roll, polygon privacy masks
Pan/Tilt/Zoom	Digital PTZ of view areas, digital PT of panorama, corner, corridor
	and quad views, preset positions, guard tours
Audio
Audio streaming	One-way, simplex, mono or stereo. Voice enhancement
Audio encoding	LPCM 48 kHz, AAC-LC 8/16/32/44.1/48 kHz, G.711 PCM 8 kHz,
	G.726 ADPCM 8 kHz, Opus 8/16/48 kHz
	Configurable bit rate
Audio input/output	4 built-in microphones (can be disabled), network speaker pairing
Network
Network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)
System Integration
Application Programming Interface	Open API for software integration, including VAPIX®, metadata, and AXIS Camera Application Platform (ACAP); specifications at axis.com/developer-community. ACAP includes Native SDK and Computer Vision SDK.
	AXIS Guardian with One-Click Connection
	ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, ONVIF® Profile T specification at onvif.org
	Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer-to-peer or integrated with SIP/PBX
	Onscreen controls	Day/night shift
		Wide dynamic range
		Video streaming indicator
		IR illumination
	Event conditions	Analytics, edge storage events, virtual inputs through API, supervised external inputs, open casing, audio detection, MQTT subscribe
		Event actions	Record video/audio: SD card and network share, MQTT publish, Upload of images or video/audio clips: FTP, SFTP, HTTP, HTTPS, network share and email, Pre- and post-alarm video or image buffering for recording or upload, Notification: email, HTTP, HTTPS, TCP and SNMP trap, PTZ: PTZ preset, start/stop guard tour, Overlay text, external output activation, play audio clip, zoom preset, day/night mode
Built-in installation aids			Pixel counter, digital roll, repositioning of quad views, digital PTZ of view areas, digital PT of panorama, corner, corridor and quad views
	Analytics
	AXIS Object Analytics	Object classes: humans, vehicles (types: cars, buses, trucks, bikes)
Scenarios: line crossing, object in area, up to 10 scenarios, metadata visualized with trajectories, color-coded bounding boxes and tables, polygon include/exclude areas, perspective configuration, ONVIF Motion Alarm event
Metadata		Object data: Classes: humans, faces, vehicles (cars, buses, trucks, bikes), license plates; confidence, position; event data: producer reference, scenarios, trigger conditions
		Applications	Included: AXIS Object Analytics, AXIS Video Motion Detection, Active tampering alarm, Audio detection, AXIS Scene Metadata, AXIS Image Health Analytics
			Supported: Support for additional applications if the device is used with compatible accessories. For more information, contact your Axis partner. Support for AXIS Camera Application Platform enabling installation of third-party applications, see axis.com/acap
Cybersecurity
Edge security	Software: Signed firmware, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256bit SD card encryption. Hardware: Axis Edge Vault cybersecurity platform, secure element (CC EAL 6+), Axis device ID, secure keystore, signed video, secure boot
	Network security		IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, IP address filtering
			Documentation	AXIS OS Hardening Guide, Axis Vulnerability Management Policy, Axis Security Development Model, AXIS OS Software Bill of Material (SBOM)
				General
	Casing			IP66-, NEMA 4X- and IK10-rated (IR window IK09). Polycarbonate hard coated dome, Sharpdome 360, aluminum, color: white NCS S 1002-B. For repainting instructions contact your Axis partner.
		Sustainability		PVC free
		Power	Power over Ethernet (PoE) IEEE 802.3at Type 2 Class 4. Typical 7.9 W, max 15.5 W
Connectors			Shielded RJ45 10BASE-T/100BASE-TX PoE. Terminal block for 1 supervised alarm input and 1 output (12 V DC output, max. load 25 mA)
		IR illumination	OptimizedIR with power-efficient, long-life 850 nm IR LEDs. Range of reach 15 m (49 ft) or more depending on the scene
Storage			Support for microSD/microSDHC/microSDXC card, SD card encryption (AES-XTS-Plain64 256bit), recording to network-attached storage (NAS). For SD card and NAS recommendations see axis.com
		Operating conditions	-40 °C to 50 °C (-40 °F to 122 °F); start-up: -30 °C; max intermittent: 55 °C; max NEMA TS2 (2.2.7): 74 °C (165 °F); humidity 10–100% RH (condensing)
	Storage conditions		-40 °C to 65 °C (-40 °F to 149 °F); humidity 5–95% RH (non-condensing)
			Approvals	EMC: EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, KS C9832 Class A, KS C9835
Safety: IEC/EN/UL 62368-1 ed.3, IEC/EN 62471 risk group exempt, IS 13252
Environment: IEC 60068-2-1, -2-2, -2-6, -2-14, -2-27, -2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK10 (IR window IK09), NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9)
Network: IPv6 USGv6, NIST SP500-267
Dimensions	Height: 69 mm (2.7 in), ø 149 mm (5.8 in)
	Weight: 850 g (1.9 lb)
Included accessories	Installation guide, Windows® decoder 1-user license, drill hole template, cable gaskets, connector guard, I/O connector, RESISTORX® TR20 bit, mounting bracket, cable hole lid, view protector
	Video management software	AXIS Camera Station Edge, AXIS Camera Station Pro, AXIS Camera Station 5
Languages		English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese

[/specifications] [accesories]

Optional accessories

• AXIS T94T02D Pendant kit with weathershield • AXIS Surveillance Cards • AXIS TM3808-E Skin Cover Black • AXIS Mounts & Cabinets • AXIS TM3204 Recessed Mount • AXIS TM3206 Recessed Mount

[/accesories]

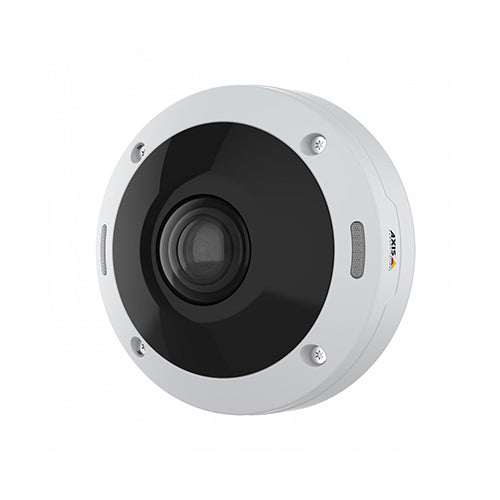

AXIS M4308-PLE Panoramic Camera (02100-001)

The AXIS M4308-PLE is a Sharpdome 360 panoramic IP camera designed to provide comprehensive coverage of open areas using a single, compact, mini-dome camera. Specifically engineered for outdoor installation, this product utilizes an ultra-sharp, fixed 1.3mm lens and 12 MP sensor to capture highly detailed video. It is powered by the AXIS ARTPEC-7 SoC and features a DLPU, enabling distinctive opportunities for leveraging analytics based on deep learning at the edge.

Quick Specs:

• 12MP sensor with 360 overview
• Lightfinder, Forensic WDR, OptimizedIR
• 4 microphones with voice enhancer
• Support for analytics with deep learning

Please see the related tabs for the 02100-001 datasheet and compatible accessories.
