[shortdesc]
- Discreet indoor 1080p surveillance with IR, Flexible flat-faced dome for indoor surveillance, Eyeball design for optimized installation flexibility, Built-in IR for video in complete darkness, Forensic WDR, Corridor format for vertically oriented coverage areas
[/shortdesc]
[properties]
| Properties |
AXIS FA3105-L Eyeball Sensor Unit |
| Description |
AXIS FA3105-L Eyeball Sensor Unit is a day/night sensor unit with built-in IR illumination in a very small form factor for use with AXIS FA54 Main Unit. |
| Product Family |
Axis Cameras |
| Product Type |
Sensor Unit |
| Main units |
AXIS FA54 Main Unit: High-performance multi-view surveillance with Forensic WDR |
| Image sensor |
1/3” (effective) progressive scan RGB CMOS |
| Lens |
Fixed iris |
| Wide dynamic range |
Forensic WDR |
| HTTPS encryption |
– |
| IEEE 802.1X |
– |
| Built-in IR |
Yes |
| Local storage (memory card slot) |
– |
| Outdoor Ready |
– |
| Vandal rating |
– |
| IP rating |
– |
| Dimensions |
57 mm (2 1/4 in) ø 72.7 mm (2 7/8 in) |
| Weight |
88 g (0.19 lb) |
| Operating Temperature |
-20 °C to 50 °C (-4 °F to 122 °F) |
| Power (max) |
1.5 W |
| Power (average) |
1.2 W |
[/properties][specifications]
| Specifications |
AXIS FA3105-L |
| Min illumination/ light sensitivity (Color) |
0.2 lux |
| Max video resolution |
1920x1080 |
| Max frames per second |
25/30 |
| Day and Night functionality |
Yes |
| Electronic image stabilization |
– |
| Focal length |
3.13 mm |
| Varifocal lens |
No |
| Aperture |
2.0 |
| Horizontal field of view |
103 ° |
| Vertical field of view |
55 ° |
| Lens mount |
– |
| Replaceable lens |
– |
| Zipstream |
- |
| H.264 |
- |
| H.265 |
- |
| Motion JPEG |
- |
| Audio Support |
- |
| Sustainability |
PVC free |
[/specifications][accesories]
| Included accessories |
| AXIS F7308 |
Indoor cable 8 m for P12 cameras and FA sensors |
| Mounting bracket |
For flexible installation |
| Optional accessories |
| AXIS F7301 |
Cable Black 1 m |
| AXIS F7315 |
Cable White 15 m |
[/accesories]

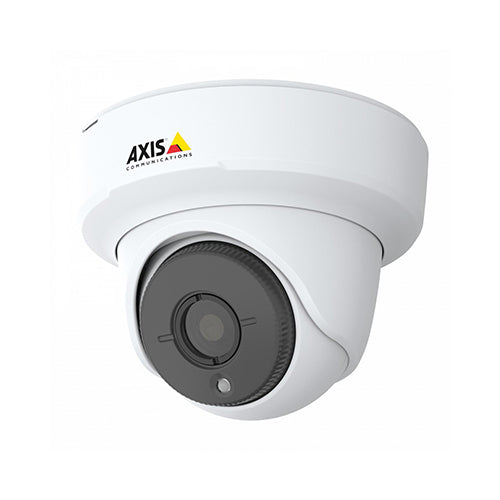

AXIS FA3105-L Eyeball Sensor Unit (01026-001)
The AXIS FA3105-L Eyeball Sensor Unit is a compact day/night sensor unit equipped with integrated IR illumination, designed for seamless integration with the AXIS FA54 Main Unit. This discreet and easily installable unit offers high-quality image usability around the clock, making it an ideal choice for surveillance in environments such as banks, gas stations, and retail stores.
Quick Specs:
- Eyeball design for optimized installation flexibility
- Built-in IR for video in complete darkness
- Forensic WDR
- Corridor format for vertically oriented coverage areas
Please see the related tabs for the 01026-001 datasheet and compatible accessories.
