[shortdesc]
- Extremely discreet indoor surveillance in 1080p, Flexible, extremely discreet design for indoor use, Pinhole lens with 1080p resolution, 91 degree horizontal field of view, Forensic WDR
[/shortdesc]
[properties]
| Properties |
AXIS FA1125 |
| Description |

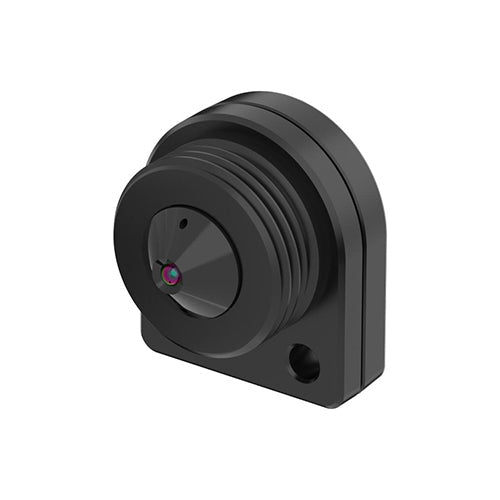

AXIS FA1125 Sensor Unit has a pinhole lens for extremely discreet surveillance. It can be installed in a wall, doorway, ceiling, metal panel, or any tight place like a machine. It virtually disappears from view. |
| Product Family |
Axis Cameras |
| Product Type |
Sensor Unit |
| Main units |
AXIS FA51 Main Unit: Single-channel main unit with HDMI output |
| AXIS FA51-B Main Unit: Single-channel barebone with HDMI |
| AXIS FA54 Main Unit: High-performance multi-view surveillance with Forensic WDR |
| Image sensor |
1/3” (effective) progressive scan RGB CMOS |
| Lens |
Fixed iris, fixed focus, pinhole |
| Wide dynamic range |
Forensic WDR |
| HTTPS encryption |
– |
| IEEE 802.1X |
– |
| Built-in IR |
– |
| Local storage (memory card slot) |
– |
| Outdoor Ready |
– |
| Vandal rating |
– |
| IP rating |
– |
| Dimensions |
28 x 24 x 20 mm (1 1/8 x 15/16 x 13/16 in) |
| Weight |
12.2 g (0.03 lb) |
| Operating Temperature |
-20 °C to 50 °C (-4 °F to 122 °F) |
[/properties][specifications]
| Specifications |
AXIS FA1125 |
| Min illumination/ light sensitivity (Color) |
0.25 lux |
| Max video resolution |
1920x1080 |
| Max frames per second |
25/30 |
| Day and Night functionality |
– |
| Electronic image stabilization |
– |
| Focal length |
3.7 mm |
| Varifocal lens |
No |
| Aperture |
2.5 |
| Horizontal field of view |
91 ° |
| Vertical field of view |
45 ° |
| Lens mount |
M12 |
| Replaceable lens |
Yes |
| Zipstream |
- |
| H.264 |
- |
| H.265 |
- |
| Motion JPEG |
- |
| Audio Support |
- |
| Sustainability |
PVC free |
[/specifications][accesories]
| Included accessories |
| 8 m black cable, one locking nut, AXIS F82A06 Angled Pinhole Mount, Installation Guide |
| Optional accessories |
| AXIS F7315 |
Cable White 15 m |
|
AXIS F8225
|
Pinhole Accessory |
|
AXIS F92A01
|
Height Strip Housing |
[/accesories]
AXIS FA1125 is an extremely discreet indoor, pin hole lens, Sensor Unit with a 91º horizontal field of view, for use with an AXIS FA Main Unit. It can be installed in tight places and flush-mounted in a wall, ceiling or metal panel with only a pinhole visible for the lens. AXIS FA1125 provides a 1080p resolution and Forensic WDR (wide dynamic range) that is optimized for low light and motion. The unit comes with a mounting bracket and an 8 m (26 ft.) cable for connection to a main unit.
