[shortdesc]
- 2nd generation: 4-channel modular barebone unit, Only compatible with 2nd generation sensors and cables, Compact barebone main unit, UL recognized component, Multiple sensor and cable options, 1080p at 30 fps on 4-channels, 2nd gen cable is required
[/shortdesc]
[properties]
| Properties |
AXIS F9104-B |
| Description |
AXIS F9104-B is compact barebone main unit. It is designed for use with 2nd generation sensors and cables from AXIS F Series. Ideal for building customized video solutions, this UL recognized component is designed for integration into a UL certified end-product. |
| Product Family |
Axis Cameras |
| Product Type |
Main Unit |
| Image sensor |
– |
| Wide dynamic range |
Forensic WDR |
| PoE Class |
IEEE 802.3at Type 2 Class 4 |
| Connectors |
RJ45 for 10BASE-T/100BASE-TX/1000BASE-T PoE |
| 4× FAKRA for sensor units |
| 3-pin terminal block for 10–48 V DC input |
| HTTPS encryption |
Yes |
| IEEE 802.1X |
Yes |
| Built-in IR |
– |
| Local storage (memory card slot) |
Yes |
| Outdoor Ready |
– |
| Vandal rating |
– |
| IP rating |
– |
| Power (max) |
25.5 W |
| Power (average) |
9.0 W |
| DC input voltage |
10–48 V |
| Dimensions |
21 × 107 × 110 mm (0.8 × 4.2 × 4.3 in) |
| Weight |
120 g (0.3 lb) |
| Operating Temperature |
-40 °C to 60 °C (-40 °F to 140 °F) |
| Sustainability |
PVC free |
[/properties][specifications]
| Properties |
AXIS F9104-B |
| Description |
AXIS F9104-B is compact barebone main unit. It is designed for use with 2nd generation sensors and cables from AXIS F Series. Ideal for building customized video solutions, this UL recognized component is designed for integration into a UL certified end-product. |
| Product Family |
Axis Cameras |
| Product Type |
Main Unit |
| Image sensor |
– |
| Wide dynamic range |
Forensic WDR |
| PoE Class |
IEEE 802.3at Type 2 Class 4 |
| Connectors |
RJ45 for 10BASE-T/100BASE-TX/1000BASE-T PoE
4× FAKRA for sensor units
3-pin terminal block for 10–48 V DC input |
| HTTPS encryption |
Yes |
| IEEE 802.1X |
Yes |
| Built-in IR |
– |
| Local storage (memory card slot) |
Yes |
| Outdoor Ready |
– |
| Vandal rating |
– |
| IP rating |
– |
| Power (max) |
25.5 W |
| Power (average) |
9.0 W |
| DC input voltage |
10–48 V |
| Dimensions |
21 × 107 × 110 mm (0.8 × 4.2 × 4.3 in) |
| Weight |
120 g (0.3 lb) |
| Operating Temperature |
-40 °C to 60 °C (-40 °F to 140 °F) |
| Sustainability |
PVC free |
[/specifications][accesories]
| Optional accessories |
| AXIS TU6001 |
Connector 3-Pin 3.81 |
| AXIS TU6004-E |
2nd generation Indoor and outdoor rated cable for AXIS F Series modular cameras |
| AXIS TU6005 |
2nd generation Plenum Cable |
| AXIS TU6007-E |
2nd generation Indoor and outdoor rated cable for AXIS F Series modular cameras |
| AXIS 30 W Midspan |
For indoor use, 240 V AC |
| AXIS T8007 PS24 |
Versatile 24 V DC power supply |
| AXIS T8415 |
Wireless Installation Tool |
[/accesories]

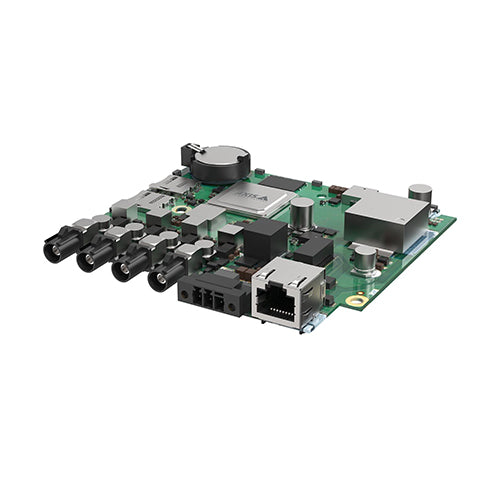

AXIS F9104-B Main Unit (02192-031)
AXIS F9104-B is a 4-channel Barebone main unit part of the 2nd generation F-series. AXIS F9104-B has no casing. It is UL recognised and is meant to be integrated into a something else (ex: machine...). The final product has to be UL certified. Up to 4× F21, F7225-RE or F4105-LRE video sensors can be connected to it. It has a 10–48V DC and an Ethernet port. AXIS F9104-B is PoE Class 4. Max 25.5W. AXIS TU6001 Connector 3-in (for DC power) has to be purchased separately. AXIS F9104-B main unit is NOT compatible with the 1st generation of F-series sensors (F1005-E, F1015-E, F1025-E, F1025 F4005, F4005-E).
Product Lifecycle Notice: This product has reached End of Life (EOL) and is no longer recommended for new deployments. The suggested replacement product is AXIS F9104-B Mk II 4-Channel Barebone Main Unit (03000-001) .
