[shortdesc]270° detection coverage, AI-powered classification, 140 m human recognition, 200 m vehicle detection, ARTPEC-9, PoE connectivity[/shortdesc]

[properties]

Brand	Axis Communications
Model	AXIS D2123-VE Radar
SKU	03126-001
Product Type	Network Radar
Monitoring Profile	Area monitoring
Sensor	FMCW (Frequency Modulated Continuous Wave)
Field of Detection	270° horizontal
Person Recognition Range	Up to 140 m (450 ft)
Vehicle Detection Range	Up to 200 m (650 ft)
PoE Support	Power over Ethernet IEEE 802.3bt Type 2 Class 4 with PoE output
Network Interface	Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE
Material	Aluminum and plastic casing
Protection Rating	IP66/IP67, NEMA 4X and IK10
Operating Temperature	-40 °C to 60 °C (-40 °F to 140 °F)
Weight	5200 g (11.5 lb)

[/properties]

[specifications]

Object Classification	Humans, vehicles and unknown objects
Object Data	Object type, range, direction and velocity
Frequency	24.05-24.25 GHz
RF Transmit Power	<100 mW (EIRP)
Recommended Mounting Height	4-10 m (13-33 ft)
Radial Speed	Up to 80 km/h (50 mph)
Speed Accuracy	+/- 2 km/h (1.25 mph)
Distance Accuracy	0.9 m (3 ft)
Angle Accuracy	<0.5°
Spatial Differentiation	3 m
Data Refresh Rate	6.67 Hz
Person Coverage	30,000 m² (320,000 sq ft)
Vehicle Coverage	59,000 m² (635,000 sq ft)
Processor	ARTPEC-9
Memory	2 GB RAM
Storage	8 GB Flash; supports microSD, microSDHC and microSDXC cards; network-attached storage recording
Compute Capabilities	Deep learning processing unit (DLPU)
Video Compression	H.264, H.265, AV1 and Motion JPEG
Video Resolution	16:9: 1920x1080 to 320x200; 4:3: 1440x1080 to 160x120
Frame Rate	Up to 10 fps (50/60 Hz) in all resolutions
Video Streams	Up to 20 unique and configurable video streams
PoE Power Consumption	Typical 11.5 W, maximum 19.6 W
PoE Output Interface	Shielded RJ45 1000BASE-T PoE output
Dynamic LED	RGB LED strip with predefined light patterns; daylight visibility up to 60 m (197 ft)
Operating Humidity	10-100% RH (non-condensing)
Storage Conditions	-40 °C to 65 °C (-40 °F to 149 °F); 5-95% RH (non-condensing)
Effective Projected Area	0.09 m² (0.97 ft²)
ONVIF Profiles	ONVIF Profile G, Profile M, Profile S and Profile T
Cybersecurity	Axis Edge Vault, signed OS, signed video, secure boot, encrypted filesystem and secure keystore
Product Markings	CE, CRA, CRC, ENACOM, FCC, ICASA, MIC Telecom, MOC, MTC, RATEL, RCM, RSM, SUBTEL, UL, URSE, VCCI and WPC
Supply Chain Compliance	TAA compliant

[/specifications]

[accesories]

Included	Radar, installation guide, TORX® T20 screwdriver, connector guard, cable gaskets and owner authentication key
Compatible Accessories	AXIS T8415 Wireless Installation Tool and AXIS Surveillance Cards
Optional Mounting Kit	AXIS T91 Mounting Accessories, AXIS TQ5001-E Wall-and-Pole Mount and AXIS TQ5301-E Corner Mount

[/accesories]

Wide-Area Radar Detection with AI Classification

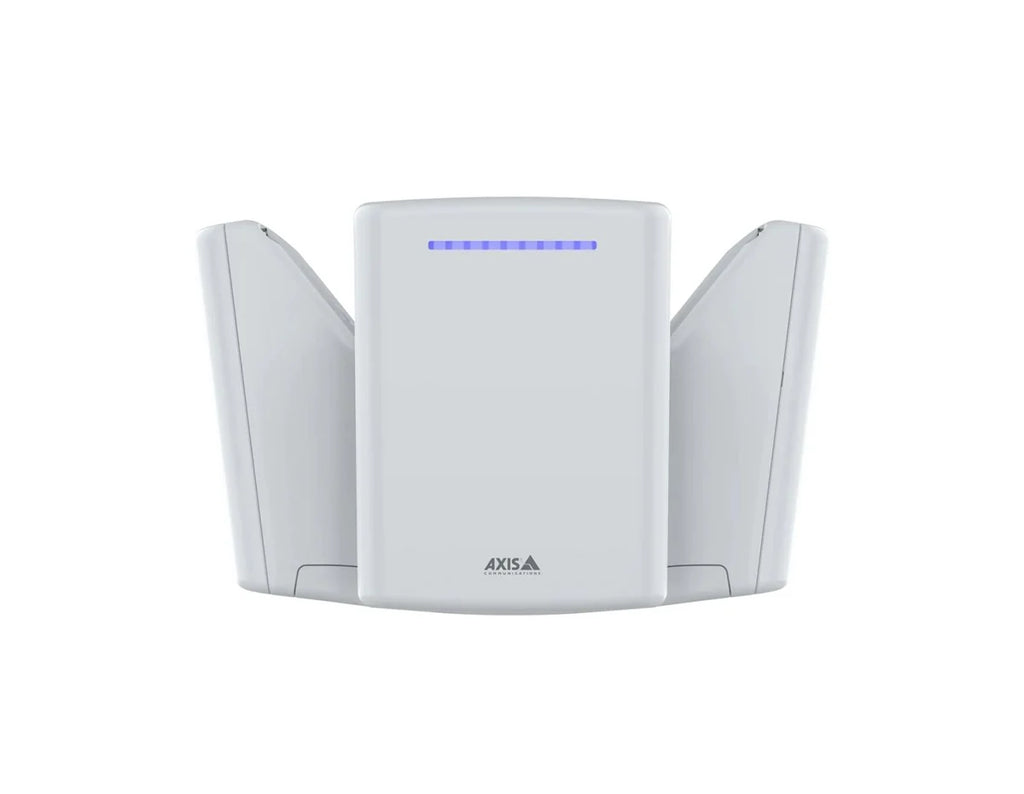

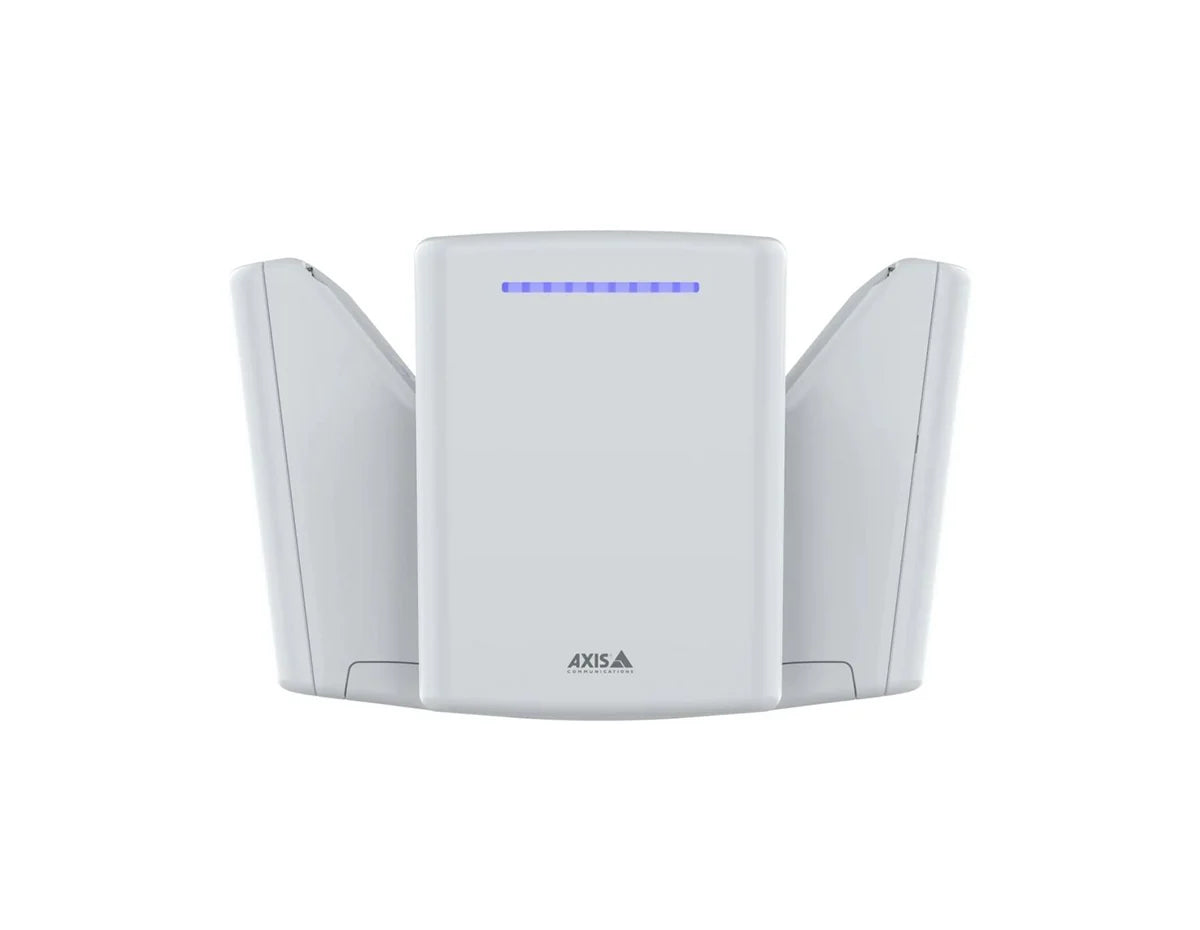

The AXIS D2123-VE Radar 03126-001 provides continuous wide-area monitoring with a 270° horizontal field of detection. Built on the ARTPEC-9 system-on-chip, it uses AI-powered processing to classify detected objects as humans, vehicles, or unknown objects while reporting their range, direction, and velocity.

Designed for demanding perimeter and site-monitoring applications, the radar can recognize people at distances of up to 140 m and detect vehicles at distances of up to 200 m. Its box-shaped detection and recognition zones support efficient coverage planning across large areas. The device can operate independently or integrate with selected ARTPEC-9 PTZ cameras for radar-video fusion and automated object tracking.

Key Benefits and Features

• 270° horizontal detection coverage for monitoring broad areas
• AI-powered classification of humans, vehicles, and unknown objects
• Human recognition coverage of up to 30,000 m²
• Vehicle detection coverage of up to 59,000 m²
• PoE output for powering a compatible external PoE device

Ideal Use Cases

• Perimeter monitoring around industrial and commercial properties
• Detection of people and vehicles across open outdoor areas
• Integration with selected Axis PTZ cameras for radar-video fusion
• Automated security responses such as radar tracking or siren activation

Technical Specifications

• Radar technology: FMCW, Frequency Modulated Continuous Wave
• Operating frequency: 24.05 to 24.25 GHz
• Field of detection: 270° horizontal
• Human recognition range: Up to 140 m
• Vehicle detection range: Up to 200 m
• Maximum radial speed: Up to 80 km/h
• System-on-chip: ARTPEC-9 with deep learning processing unit
• Network interface: 10/100/1000BASE-T shielded RJ45 with PoE
• Environmental protection: IP66, IP67, NEMA 4X, and IK10
• Operating temperature: -40°C to 60°C

Strengthen Wide-Area Security with AXIS D2123-VE

Deploy the AXIS D2123-VE Radar for accurate, continuous detection and classification across large outdoor areas. Contact our B2B team for pricing and availability.
