[shortdesc] 3-in-1 network display speaker, two-way audio, RGBW strobe, full-color LCD, PoE powered, PIR motion sensing [/shortdesc]

[properties]

Model	AXIS C1710 (02959-001)
Product Type	Network Display Speaker
Speaker Type	8-inch coaxial dynamic cone speaker in sealed enclosure
Max Sound Pressure Level	110 dB (PoE Class 6) / 103 dB (PoE Class 4)
Frequency Response	85 Hz – 20 kHz
Coverage Pattern	Horizontal 120° / Vertical 120°
Built-in Microphone	Yes (28 Hz – 20 kHz)
Amplifier	20 W Class D
Digital Signal Processing	Built-in and pre-configured
Audio Inputs	3.5 mm audio input; RCA line-out; External unbalanced microphone input
I/O	2× supervised configurable I/Os (4-pin 2.5 mm terminal block)
USB Port	USB 2.0 Type-A (reserved)
Display Size	8.8 inch
Display Type	LCD, full color
Display Resolution	1920 × 480
Display Visibility	Single-line text visible up to 12 m
Indicators	Status LED; Two front LEDs; RGBW dynamic LED strip
PIR Sensor	Passive IR, 10 m range
Casing Material	Die-cast aluminum, plastic, steel
Color	White (NCS S 1002-B)
IP Rating	IP40
Dimensions (H × W × D)	405 mm × 283 mm × 107 mm
Weight	6400 g
Power	PoE 802.3at Class 4 / PoE 802.3bt Class 6
Operating Temperature	0 °C to 40 °C
Storage Temperature	−40 °C to 65 °C
Operating Humidity	10–85% RH (non-condensing)
Storage Humidity	5–95% RH (non-condensing)

[/properties]

[specifications]

Audio Streaming	Two-way (full duplex)
Audio Codecs	AAC LC, G.711 PCM, G.726 ADPCM, Axis u-law, WAV, MP3, Opus
Sampling Rates	8 kHz to 48 kHz
MP3 Support	Mono/stereo 64–320 kbps (CBR/VBR)
Network Protocols	IPv4/IPv6, HTTPS, TLS, RTP/SRTP, RTSP, DHCP, NTP/PTP/NTS, SIP, MQTT, LLDP, CDP, SNMPv1/v2c/v3
SIP Features	SRTP, SIPS, TLS, DTMF, NAT traversal (ICE/STUN/TURN)
API / Integration	VAPIX, ACAP, Open API, AXIS Camera Station & VMS partners
Mass Notification Integrations	InformaCast, Intrado Revolution, Lynx Systems, Alertus
Unified Communication	Webex, Zoom, Cisco, Yealink, 2N, Grandstream, Avaya, Asterix
Event Triggers	Audio detection, PIR, digital I/O, MQTT, scheduled rules, light/siren, display alerts
Audio Tests	Auto Speaker Test via built-in microphone
EMC Approvals	CISPR 32 Class A, EN 55035, EN 55032, EN 61000-6-1/-6-2
Safety Standards	CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 62368-1
Environmental Tests	IEC 60068-2-1, -2, -6, -14, -27
Cybersecurity	Axis Edge Vault, Secure Boot, Signed OS, AES-XTS 256-bit encryption, FIPS 140
SoC	NXP i.MX 8M Mini
Memory	1024 MB RAM, 1024 MB Flash
Storage Support	microSD/microSDHC/microSDXC, NAS, encrypted storage
Languages	English, German, French, Spanish, Italian, Russian, Chinese (Simplified/Traditional), Japanese, Korean, Portuguese, Polish, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese

[/specifications]

[accesories]

Included in the Box	Network display speaker, 4-pin connector, Installation guide, Owner authentication key
Optional Accessories	AXIS Surveillance Cards, AXIS C8310 Volume Controller

[/accesories]

Transform Public Announcements with Intelligent Visual & Audio Alerts

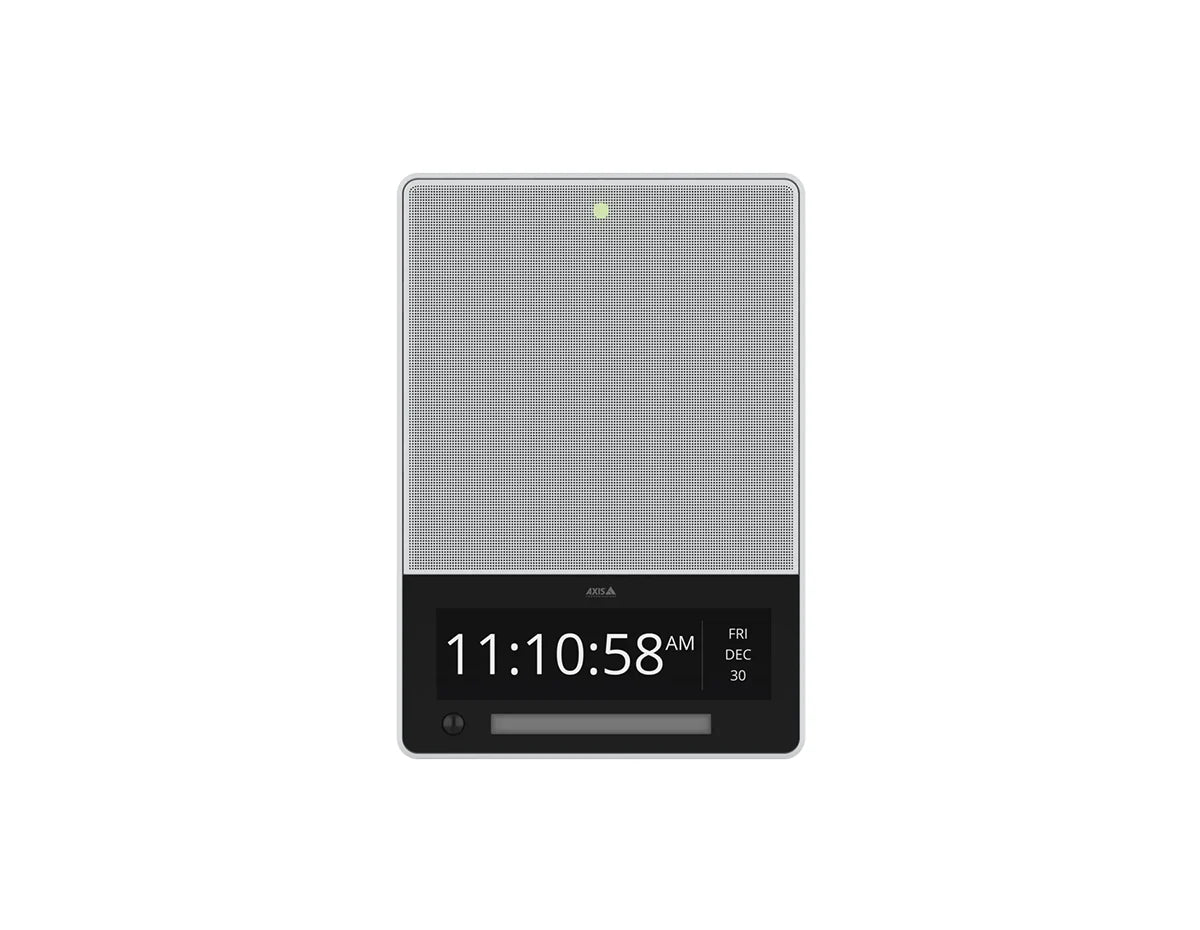

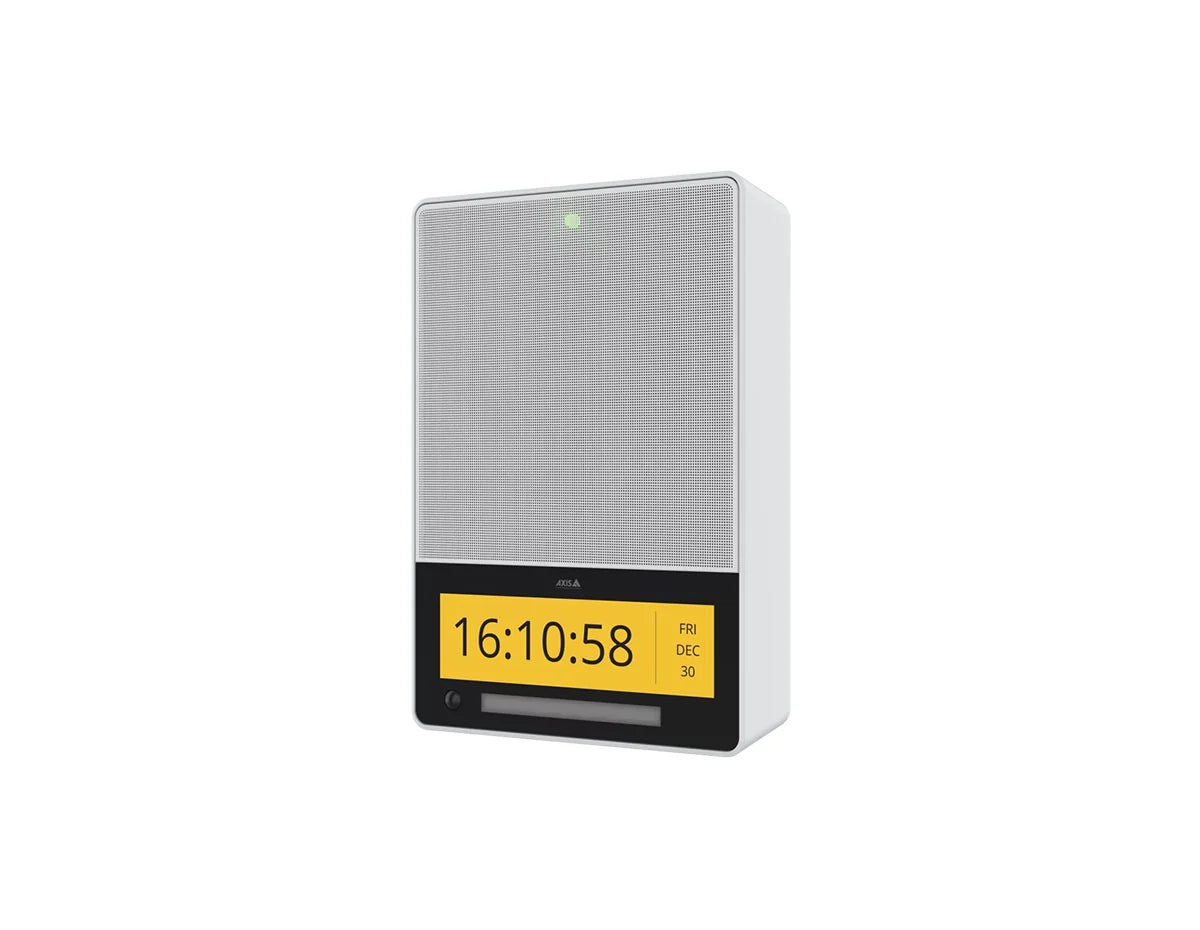

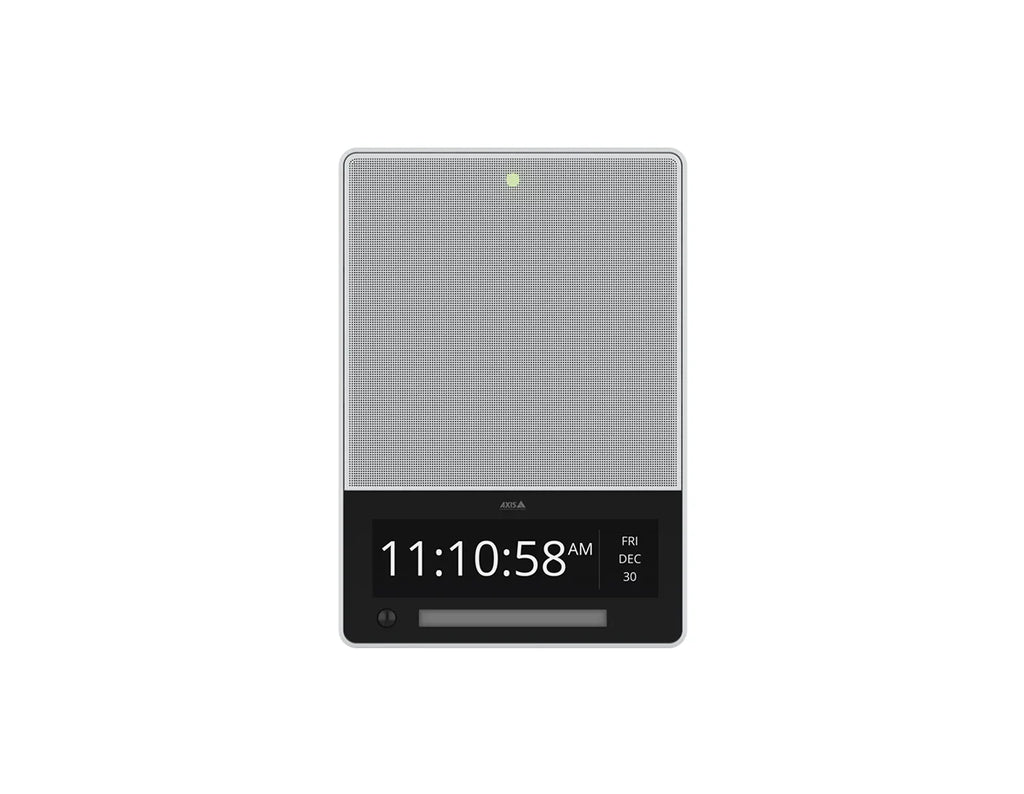

The AXIS C1710 Network Display Speaker delivers a powerful combination of high-quality audio, an attention-grabbing RGBW strobe, and a full-color LCD display for text-based alerts. This unified device enhances paging, mass notifications, and real-time communication across modern facilities. Built on an open platform, it integrates seamlessly with third-party systems and enables flexible deployment for safety, communication, and operations.

Key Benefits & Features

• Integrated 3-in-1 Alerting: The speaker, LCD display, and RGBW strobe work independently or together to deliver clearer, more effective notifications during critical events.
• High-Performance Audio: An 8-inch coaxial dynamic speaker with a Class D amplifier delivers up to 110 dB SPL for crisp, intelligible voice announcements.
• Two-Way Communication: The built-in microphone supports full-duplex audio for interactive paging, system health verification, and visitor assistance.
• Smart Display Visibility: The 8.8-inch LCD informs users with configurable text and colors, ensuring messages are readable up to 12 meters away.
• Easy Installation & Management: Features PoE power, a safety bracket for mounting, and full compatibility with AXIS Audio Manager for simple deployment.

Ideal Use Cases

• Emergency and mass notification systems for campuses, enterprises, and public buildings.
• Smart retail and transportation hubs needing synchronized audio and visual messaging.
• Industrial and warehouse environments requiring high-visibility alerts in noisy areas.
• Corporate facilities enhancing visitor communication, wayfinding, and safety.
• Healthcare settings requiring reliable, network-controlled paging and code alerts.

Technical Specifications

• Speaker Type: 8-inch coaxial dynamic cone speaker
• Max Sound Pressure: 110 dB (PoE Class 6) / 103 dB (PoE Class 4)
• Frequency Response: 85 Hz – 20 kHz
• Display: 8.8-inch full-color LCD, 1920 × 480 resolution
• Strobe Lighting: RGBW LED strip, up to 182 lm
• Audio Input/Output: Built-in mic, 3.5 mm audio in, RCA line-out
• Network & Protocols: IPv4/IPv6, HTTPS, SIP, QoS, SNMP, LLDP, MQTT
• Power: PoE 802.3at Class 4 / PoE 802.3bt Class 6
• Sensors: PIR motion sensor, 10 m range
• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
