• The AXIS PoE Midspan 16-Port simplifies network device power and data transmission with IEEE 802.3af compliance, offering seamless plug-and-play installation

[/shortdesc]

[specifications] [/specifications]

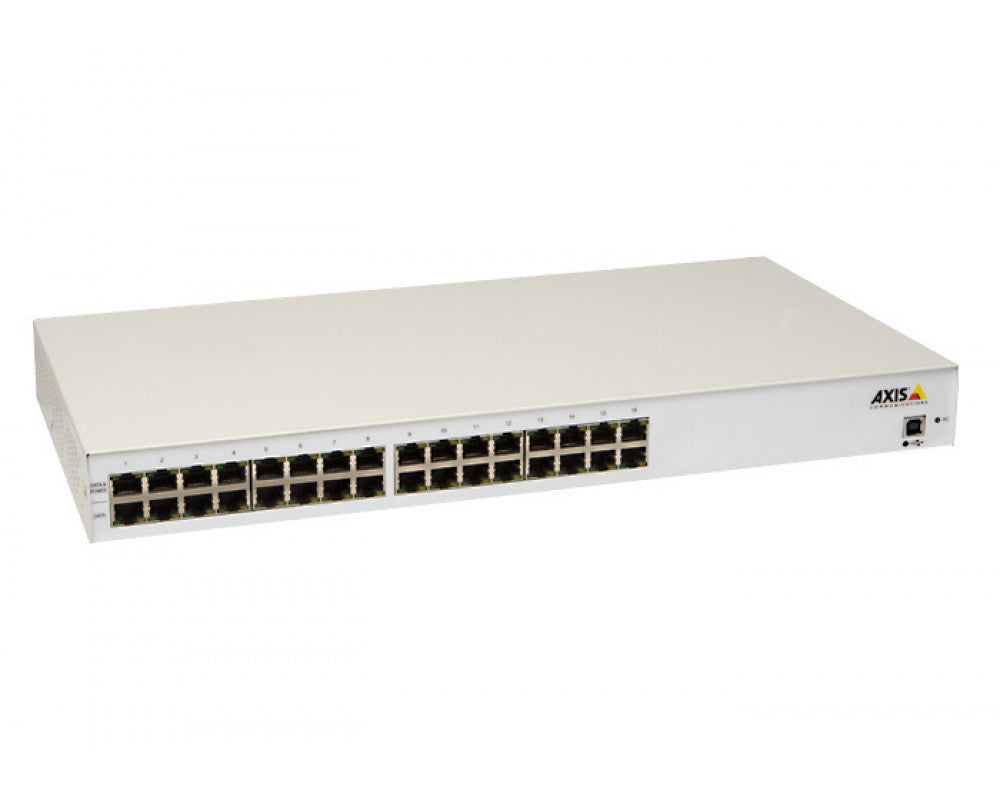

AXIS PoE Midspan 16-Port (5012-014)

The AXIS PoE Midspan 16-Port is a cost-effective solution designed to power and connect up to 16 network devices simultaneously. This midspan delivers up to 15.4 W per port and complies with IEEE 802.3af standards, ensuring compatibility with a wide range of Axis network products. Its plug-and-play functionality and support for 10/100/1000 Mbps data rates simplify installation and integration. Built for reliability, it features robust construction and 19-inch rack compatibility for professional environments.

Key Features:

• Standards Compliance: IEEE 802.3af for maximum device compatibility.
• Power and Data Integration: Supplies power and data through a single Ethernet cable.
• Plug-and-Play Installation: Simplifies setup with auto-detection of PoE-supported devices.
• High Power Output: Provides up to 15.4 W per port for connected devices.
• Efficient Design: Compact 1U rack-mounted unit for streamlined integration.

Technical Specifications:

• Power Supply: 48 V DC (max 15.4 W per port)
• Data Rate: 10/100/1000 Mbps
• Connectors: Shielded RJ45, EIA 568A/568B
• Mounting: Prepared for 19-inch, 1U rack installation
• Dimensions: 44.5 x 228 x 438 mm (1.8 x 8.9 x 17.3 in)
• Weight: 9 lb
• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Compliance: cUL/UL, TUV, CE, and more



  This product has reached its end-of-life.
