Package Contents:
- P3747-PLVE Panoramic Camera
- Installation Guide
- Connector Guard
- Cable Gasket
- Mounting Plate
- Dome Casing
|
| Product Type: Network Camera |
| Manufacturer Part Number: 02897-001 |
| Manufacturer Website Address: http://www.axis.com |
| Protocols: IPv4,IPv6 USGv6,ICMPv4/ICMPv6,HTTP,HTTPS,HTTP/2,TLS,FTP,SFTP,CIFS/SMB,SMTP,mDNS (Bonjour),UPnP,SNMPv1/v2c/v3 (MIB2),DNS/DNSv6,DDNS,NTP,NTS,RSTP,RTP,SRTP/RTSPS,TCP,UDP,IGMPv1/v2/v3,RTCP,ICMP,DHCPv4/v6,ARP,SSH,LLDP,CDP,MQTT v3.1.1,UDP/TCP/TLS,ZeroConf |
| Limited Warranty: 5 Year |
| Weight (Approximate): 6.61 lb |
| Color Supported: Color |
| Connectivity Technology: Wired |
| Features: Day/Night,Wide Dynamic Range,White Balance,Mirror,Privacy Masking,Built-in Speaker,2D Noise Reduction,3D Noise Reduction,Motion Detection,Tampering Alarm,Human Detection,Vehicle Detection |
| Form Factor: Dome |
| Lens Type: Varifocal |
| Manufacturer: Axis Communications |
| Product Model: P3747-PLVE |

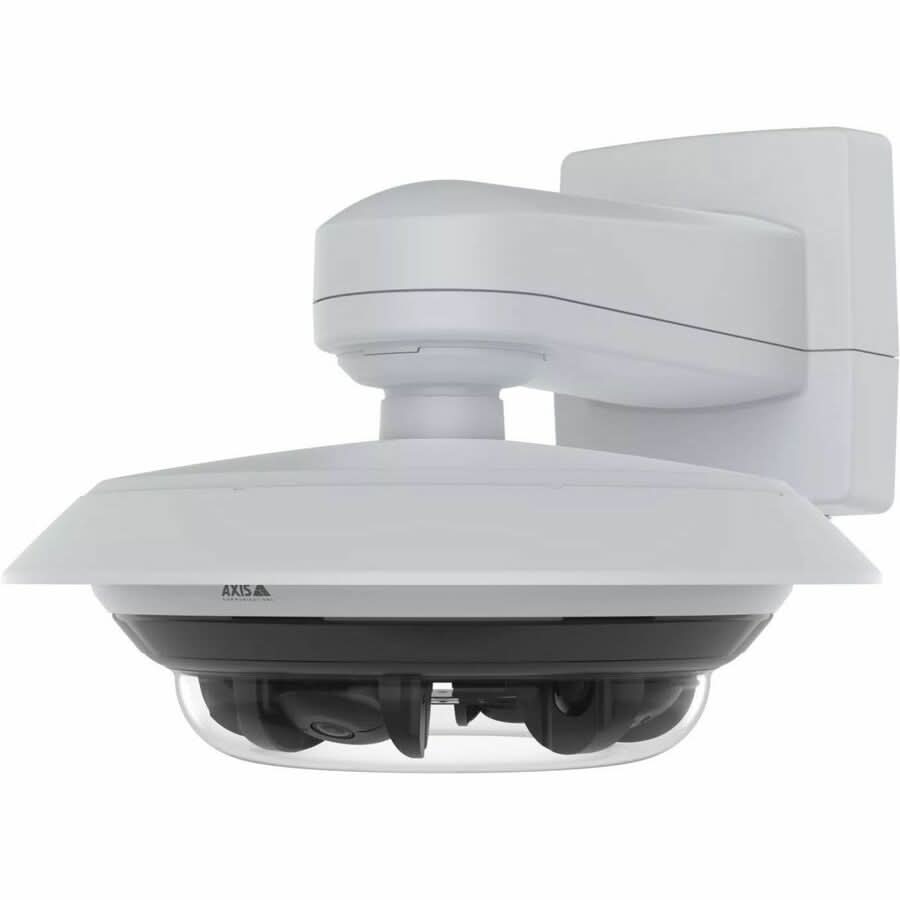

| Product Name: P3747-PLVE Panoramic Camera |
| Mount Type: Ceiling Mount,Bracket Mount,Junction Box Mount |
| Video Formats: H.264 (MPEG-4 Part 10/AVC),H.265 (MPEG-H Part 2/HEVC) Main Profile,Motion JPEG,H.264,H.265,Zipstream,H.264B,H.264M,H.264H,H.265B,H.265H,H.265M |
| Product Series: P37 |
| Optical Zoom: 2.3x |
| Brand Name: AXIS |
| Maximum Aperture: f/1.6 |
| Image Sensor Size: 1/2.78" |
| Maximum Video Resolution: 2592 x 1944 |
| Maximum Frame Rate: 30 fps |
| Maximum Focal Length: 7.42 mm |
| Minimum Focal Length: 3.18 mm |
| Image Sensor Type: RGB CMOS |
| Effective Camera Resolution: 5 Megapixel |
| Ethernet Technology: Gigabit Ethernet |
| Field Of View: 71.5°-30° |
| Minimum Operating Temperature: -40°F (-40°C) |
| Maximum Operating Temperature: 122°F (50°C) |
| Minimum Storage Temperature: -40°F (-40°C) |
| Maximum Storage Temperature: 149°F (65°C) |
| Network (Rj 45): Yes |
| Longest Shutter Speed: 1 Second |
| Shortest Shutter Speed: 1/19500 Second |
| Remote Management: Yes |
| Maximum Power Consumption: 23.70 W |
| Minimum Aperture: f/2.7 |
| Hd Recording: Yes |
| Lens Included: Yes |
| Camera Iris: Fixed |
| Storage Type: Memory Card |
| Indoor/Outdoor: Outdoor |
| Product Color: White |
| Power Source Type: PoE |
| Languages Support: English,German,French,Spanish,Italian,Russian,Simplified Chinese,Japanese,Korean,Portuguese,Polish,Traditional Chinese,Dutch,Czech,Swedish,Finnish,Turkish,Thai,Vietnamese |
| Feature1: Up to 2592 x 1944 video resolution |
| Feature2: Features RGB CMOS sensor |
| Feature3: 7.42 mm maximum focal length provides incredible detail and how effective is your network camera |
| Feature4: f/1.6 maximum aperture for reliable, detailed, and sharp output with added dependability |
| Feature5: 2.3x optical zoom for bringing the subject closer for maximum surveillance efficiency |
| Feature6: Fixed camera iris with dependable visual output with maximum feasibility and convenience |
| Feature7: Varifocal lens type for sharp, detailed focus to ensure maximum surveillance usability |
| Feature8: PoE power source type for your network camera provides maximum energy feasibility and added surveillance productivity |
| Feature9: Ceiling Mount mount type ensures optimal results and maximum convenience |
| Feature10: Day/Night feature for better reliance and usability |
