Description

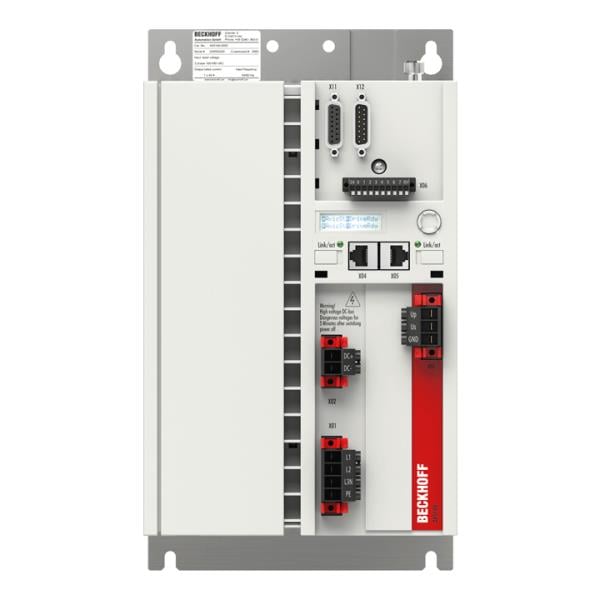

The Beckhoff AX5125-0000-0200 is a digital compact servo drive designed for high-performance automation applications. It delivers a rated output current of 25 A, peak current of 50 A, and integrates EtherCAT communication with compliance to IEC 61800-7-204.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Beckhoff |
| Category |
Servo Drives |
| Part Number |
AX5125-0000-0200 |
| Subcategory |
Digital Compact Servo Drives |
| Drive Type |
1-channel digital compact servo drive |
| Rated Output Current |
25 A per channel |
| Peak Output Current |
50 A per channel |
| Rated Supply Voltage |
3×100…480 V AC ±10% |
| DC-Link Voltage (max.) |
875 V DC |
| Fieldbus Interface |
EtherCAT |
| Feedback Options |
SinCos 1 Vpp, EnDat 2.1 |
| Technology |
One Cable Technology (OCT) |
| Hardware Version |
2.0 |
| Firmware Version |
2.06 |
| Protection Rating |
IP20 |
| Operating Temperature |
0…+50°C |
| Channels |
1 |
| Depth (without connectors) |
232 mm |
| Height (without connectors) |
274 mm |
| Width |
185 mm |
| Approvals/Markings |
CE, cULus, EAC |
| Warranty |
1 year |
| Weight |
7.00 lbs (approx. 3.18 kg) |
Information About AX5125-0000-0200
The AX5125-0000-0200 is part of Beckhoff’s AX5000 series of digital compact servo drives, engineered for precise motion control in demanding automation environments. Supporting a rated supply voltage of 3×100…480 V AC, the unit offers a single-channel configuration with OCT (One Cable Technology) for simplified wiring and reduced installation effort. It accommodates multiple feedback systems including SinCos 1 Vpp and EnDat 2.1, ensuring flexible integration with compatible servo motors. With an IP20 protection rating, a robust housing, and compliance with CE, cULus, and EAC certifications, this drive ensures safe, reliable, and standards-based operation in industrial systems.
Key Features:
-
Rated Output Current: Provides a continuous rated current of 25 A per channel, ensuring stable drive performance for medium to large servo motors under demanding loads.
-
Peak Output Current: Supports up to 50 A peak current per channel, enabling the drive to handle dynamic motion tasks such as fast acceleration and deceleration cycles without loss of control.
-
Wide Supply Range: Operates with a three-phase 100…480 V AC ±10% supply, giving flexibility for use across a broad range of international industrial power standards.
-
EtherCAT Interface: Incorporates real-time EtherCAT fieldbus communication for ultra-fast data exchange, precise synchronization, and seamless integration with Beckhoff and third-party automation systems.
-
Feedback Compatibility: Supports encoder feedback options including SinCos 1 Vpp and EnDat 2.1, ensuring accurate motor position monitoring and high-resolution control.
-
One Cable Technology (OCT): Utilizes a single hybrid cable that carries both power and feedback signals, reducing wiring complexity, saving installation time, and lowering overall system cost.
-
Standards Compliance: Conforms to IEC 61800-7-204 drive profile, ensuring compatibility with standardized motion control systems and interoperability with multiple automation platforms.
-
Rugged Design: Built with an IP20 protection class, the drive is designed for use in protected industrial enclosures where reliable operation is required.
-
Thermal Management: Engineered for efficient cooling to maintain consistent performance under full load, extending the service life of both the drive and the connected motor.
-
Certified Safety: Approved for CE, cULus, and EAC compliance, enabling deployment in a wide variety of global industrial applications with adherence to regulatory requirements.
The AX5125-0000-0200 delivers the reliability and precision required for single-axis servo control in advanced automation and motion systems.
