Description
Tech Specs

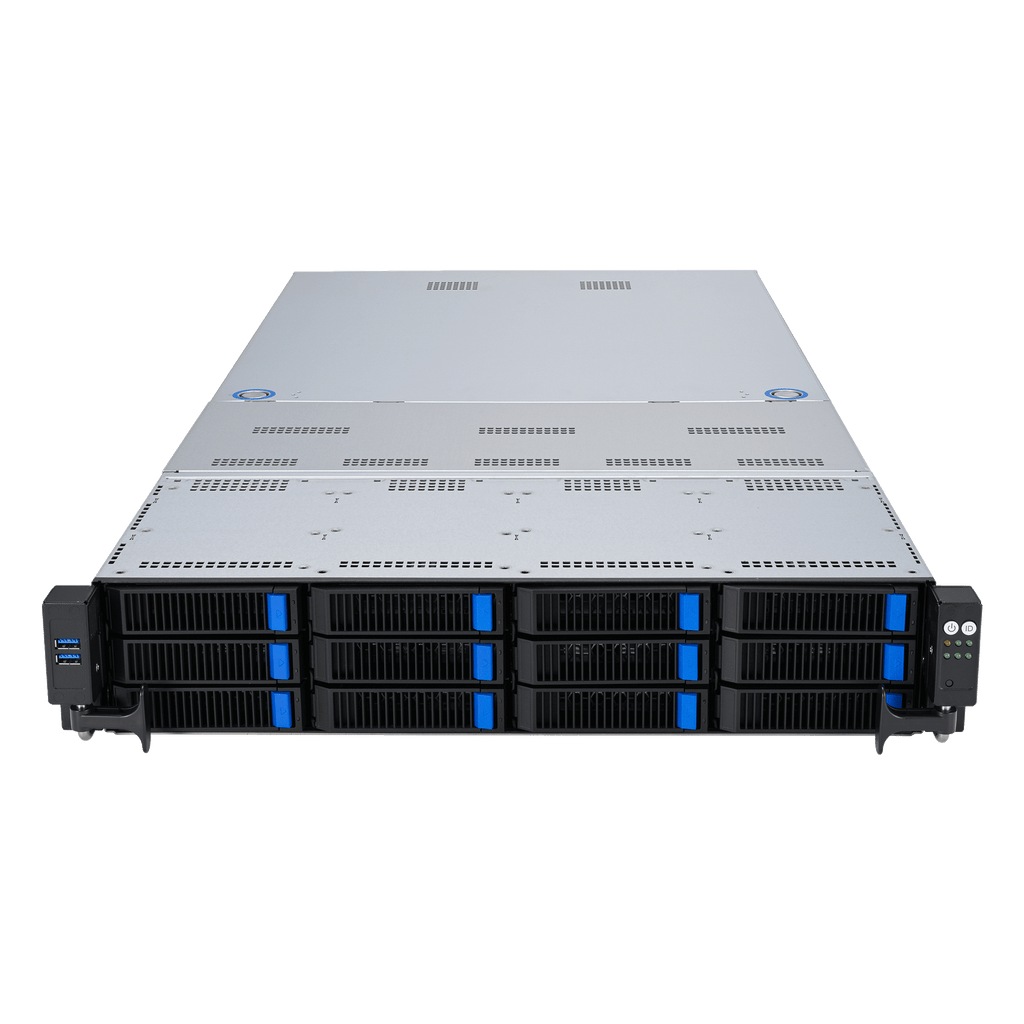

Chassis:
- Front Flex Bay 2U - 12 x 3.5" SATA/SAS/NVMe SSDs

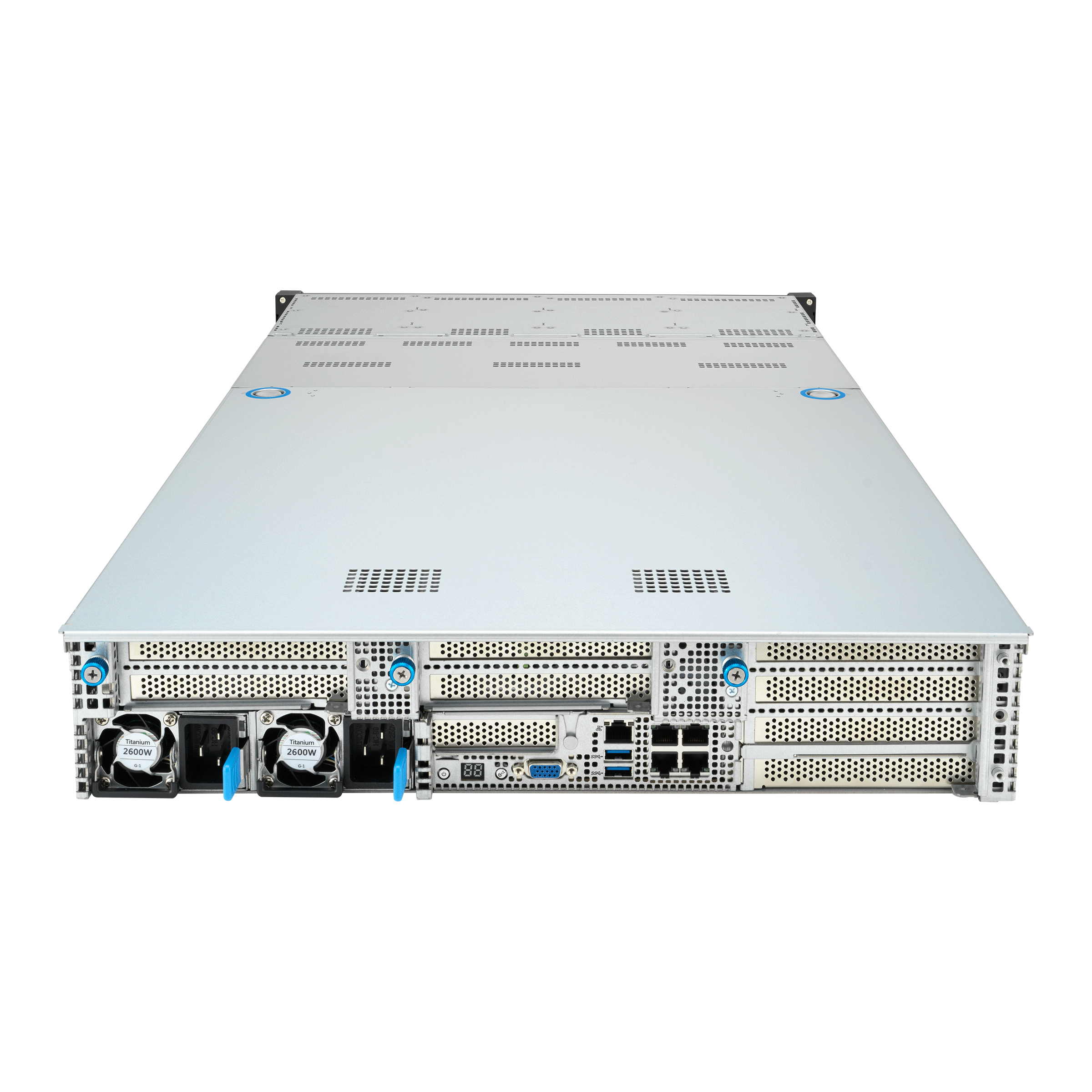

- Rear Bay: 2x 2.5" SATA hot-swap SSDs
SAS support only from optional RAID - 2x NVMe M.2
Processor types:
- 2 x AMD EPYC 9004 Genoa CPUs
Generation - Up to 128 Cores Processor
- Up to 400W TDP for processor
- Socket: SP5 LGA-6096
Memory RAM types:
- 24 Slots, 12 channels
- 12 channels 2 slots per channel
- Max configuration: 6TB DDR5 4800 MT/s
24 x 256GB Load-Reduced 3DS or ECC Registered
Storage Options
- NVMe M.2: 4TB
- SAS SSDs: 15.36TB @ 12GB/s
- SATA SSD: 30.72B @ 6GB/s
- NVMe U.2: 15.36TB
- NVMe U.3: 15.36TB
GPU Options:
- Up to 4 single-slot GPU cards
- Up to 3 double-slot GPU cards
Operating Systems:
- Windows Server 2019
- Windows Server 2022
- Ubuntu 22.04 LTS
- ESXi 8.0
- RHEL 8.x
- RHEL 9.x
Power Supplies:
- 1+1 Redundant 2600W 80 PLUS Titanium
Storage Controllers RAID Options:
- Broadcom Mega RAID 9560-16i
- Broadcom MegaRAID 9540-8i
- Broadcom HBA CARD 9500-16i
- Graid Technology GPU cards (SR1001, SR1000, SR1010)
Security:
- Trusted Platform Module
- PFR Module
Network Interface Card Options (NICs)
-
Integrated: Intel X710-AT2
2x 10GbE RJ45 onboard LAN - 1 x Management LAN Port
Expansion Slots:
- 4x PCIe x16 Gen5 Full Height
- 8x PCIe x8 Gen5 Full Height
- 1x PCIe x16 Gen5 Low Profile
- 1x PCIe x8 Gen4 Low Profile
ASUS RS720A-E12-RS12-26W3GPU Supported CPUs
| CPU | Cores/Threads | Frequency | Turbo Frequency |
|---|---|---|---|
| AMD EPYC 9124 | 16C/32T | 3.00GHz | 3.70GHz |
| AMD EPYC 9174F | 16C/32T | 4.10GHz | 4.40GHz |
| AMD EPYC 9184X | 16C/32T | 3.55GHz | 4.10GHz |
| AMD EPYC 9224 | 24C/48T | 2.50GHz | 3.70GHz |
| AMD EPYC 9254 | 24C/48T | 2.96GHz | 4.15GHz |
| AMD EPYC 9274F | 24C/48T | 4.05.10GHz | 4.30GHz |
| AMD EPYC 9334 | 32C/64T | 2.70GHz | 3.90GHz |
| AMD EPYC 9354 | 32C/64T | 3.25GHz | 3.80GHz |
| AMD EPYC 9354P | 32C/64T | 3.25GHz | 3.80GHz |
| AMD EPYC 9374F | 32C/64T | 3.85GHz | 4.30GHz |
| AMD EPYC 9384X | 32C/64T | 3.10GHz | 3.90GHz |
| AMD EPYC 9454 | 48C/96T | 2.75GHz | 3.80GHz |
| CPU | Cores/Threads | Frequency | Turbo Frequency |
|---|---|---|---|
| AMD EPYC 9454P | 48C/96T | 2.75GHz | 3.90GHz |
| AMD EPYC 9474F | 48C/96T | 3.60GHz | 4.10GHz |
| AMD EPYC 9534 | 64C/128T | 2.45GHz | 3.70GHz |
| AMD EPYC 9554 | 64C/128T | 3.10GHz | 3.75GHz |
| AMD EPYC 9554P | 64C/128T | 3.10GHz | 3.75GHz |
| AMD EPYC 9634 | 84C/168T | 2.25GHz | 3.70GHz |
| AMD EPYC 9654 | 96C/192T | 2.40GHz | 3.70GHz |
| AMD EPYC 9654P | 96C/192T | 2.40GHz | 3.70GHz |
| AMD EPYC 9684X | 96C/192T | 2.55GHz | 3.70GHz |
| AMD EPYC 9734 | 112C/224T | 2.20GHz | 3.00GHz |
| AMD EPYC 9754 | 128C/256T | 2.25GHz | 3.10GHz |
ASUS RRS720A-E12-RS12-26W3GPU RAID Options
| RAID Options | RAID Levels | Cache | Drive Speeds | PCIe Generation | RAID Hardware |
|---|---|---|---|---|---|
| Broadcom MegaRAID 9560-16i | 0, 00, 1, 5, 6, 10, 50 and 60 | N/A | 12Gb/s SAS | 16GT/s NVMe | 4.0 | Yes |
| Broadcom HBA 9500-16i | N/A | N/A | 12Gb/s SAS | 16GT/s NVMe | 4.0 | Yes |
| Broadcom MegaRAID 9540-8i | 0, 00, 1, 10 | N/A | 12Gb/s SAS | 16GT/s NVMe | 4.0 | Yes |
