Overview

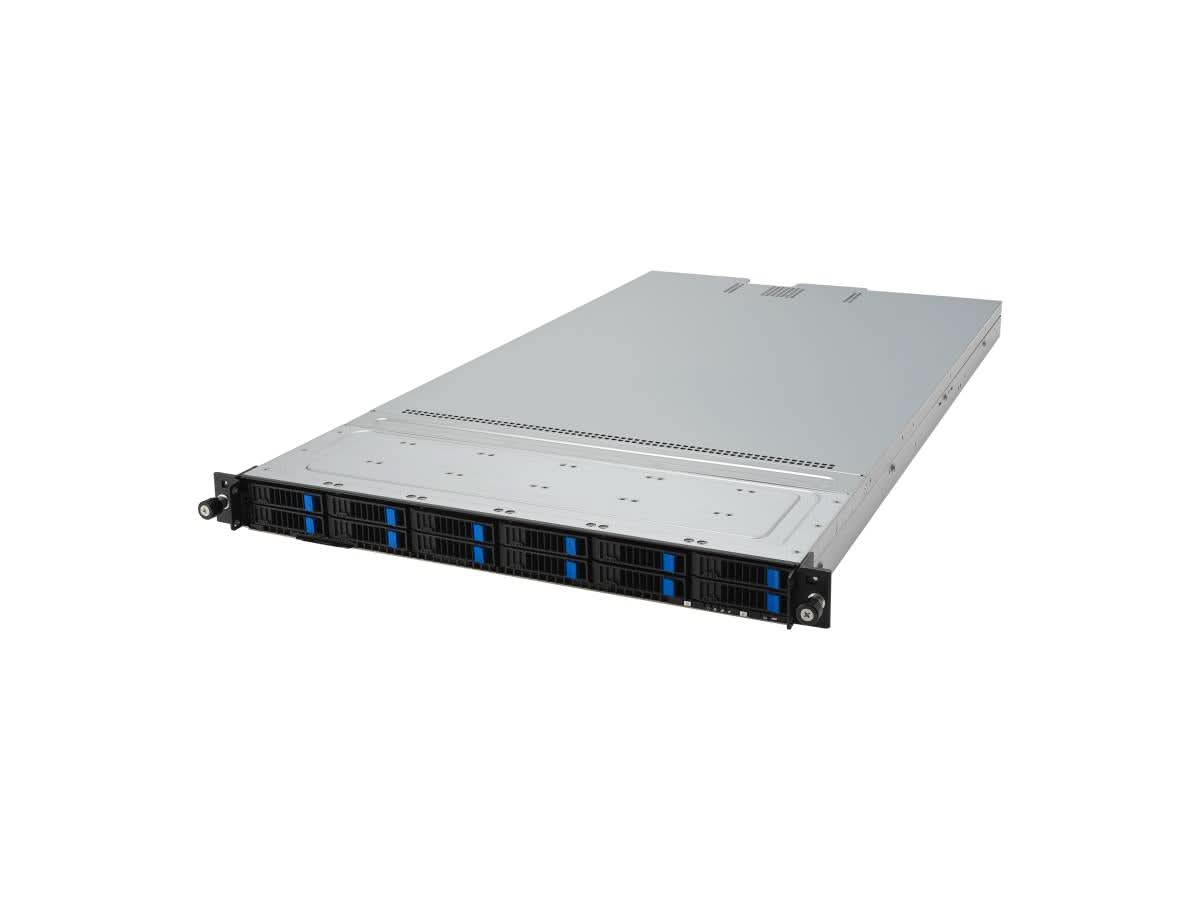

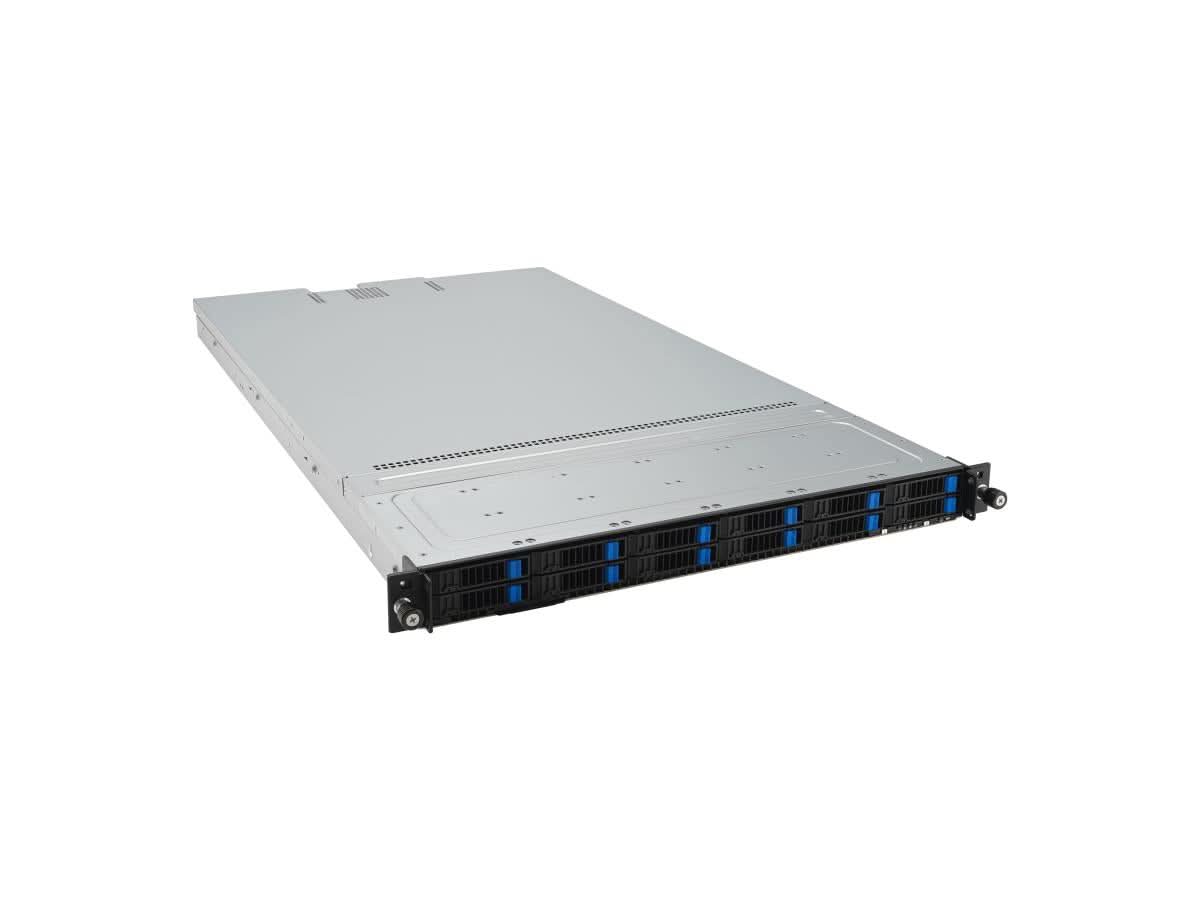

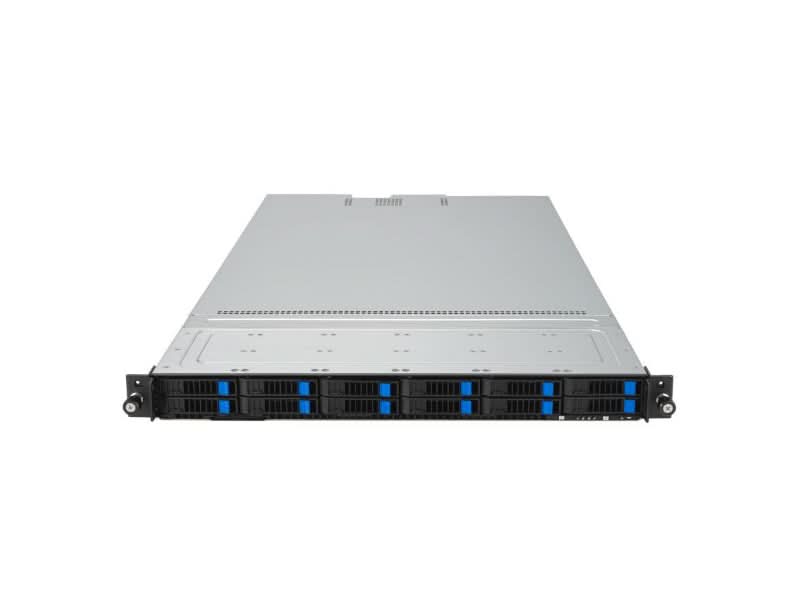

ASUS RS501A-E12-RS12-16TWH is a 1U server barebone powered by AMD EPYC 9005 series CPUs, supporting up to 3TB DDR5 across 24 DIMM slots. It features 12x 2.5" drive bays, redundant 1600W power, and up to 3 PCIe Gen5 slots for scalable, energy-efficient performance.
Specifications
Model Number:RS501A-E12-RS12-16TWH
Brand: ASUS
Alt Part Number(s): RS501A-E12-RS12-16TWH
Product Type: Server
Technical Description
Brand:RS501A-E12-RS12-16TWH
Model: ASUS
Form Factor: 1U Rackmount, GPU Servers
Processor / Type: EPYC 9005 series
Processor / Manufacturer: AMD
RAM / Technology: DDR5
RAM / Total Slots Qty: 24
RAM / Max Supported Size: 3.072 TB
Hard Drive / Size: 2.5"
Hard Drive / Bays Qty: 12
Data Link Protocol: Gigabit Ethernet
Power / Device Type: Power Supply - Redundant
Power / Installed Qty: 2
Power / Provided (W): 1600 Watt

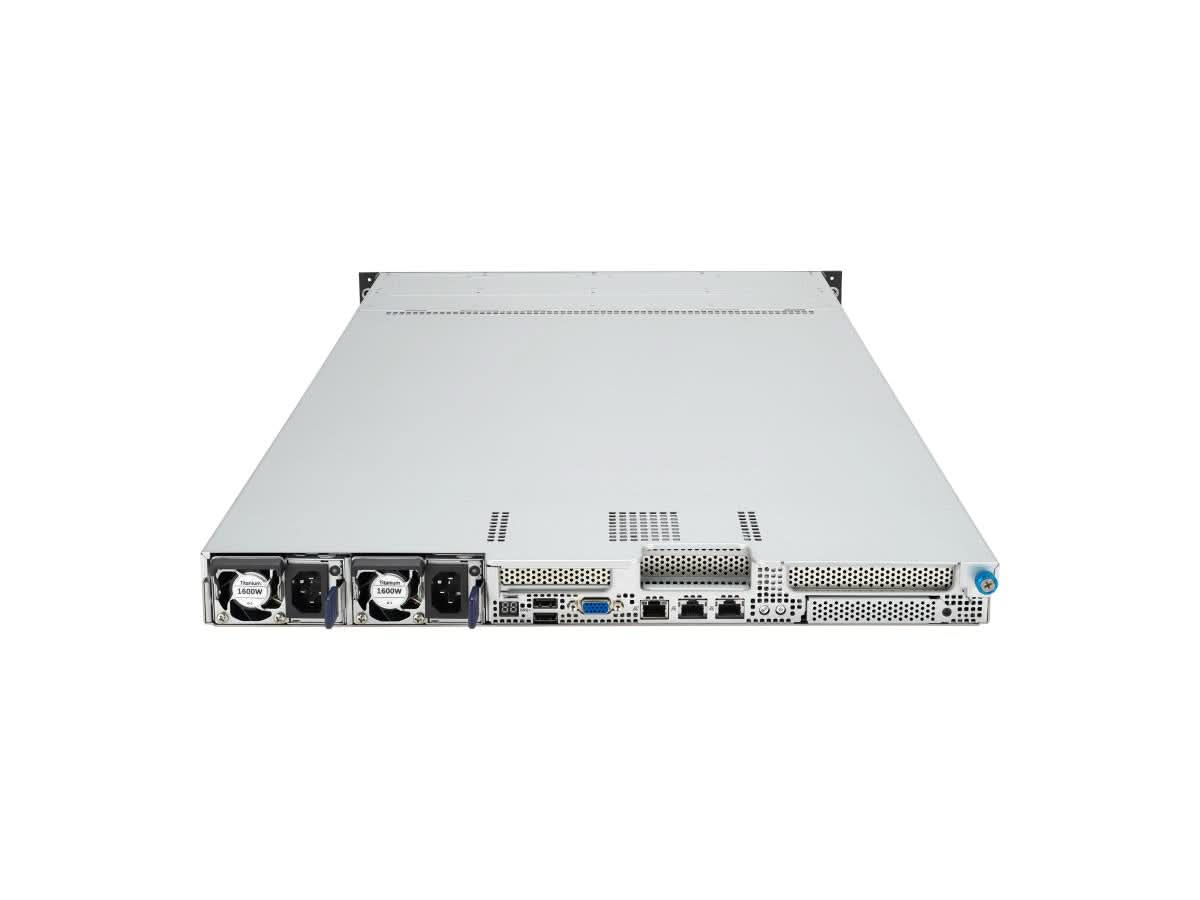

Interfaces & Connections: 2 x USB 3.2 Gen1 ports; 1 x VGA port; 1 x Management port; 2 x 1GbE LAN ports
Expansion Slots Total (Free): Up to 3 PCIe Gen5 slots; 1 OCP3.0
Width: 33.17 Inch
Depth: 17.68 Inch
Height: 1.73 Inch
Energy Star Compliant: Y
*
