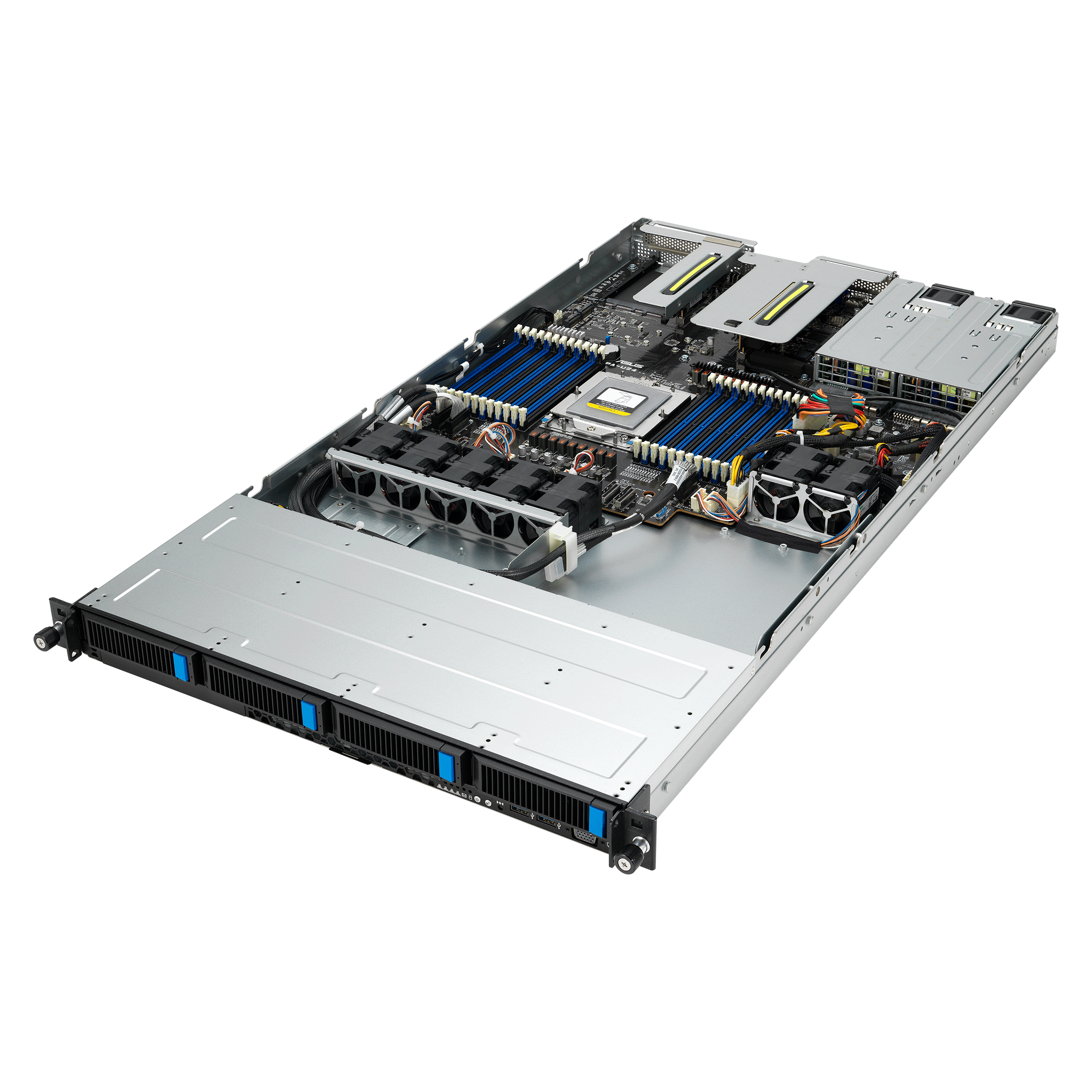

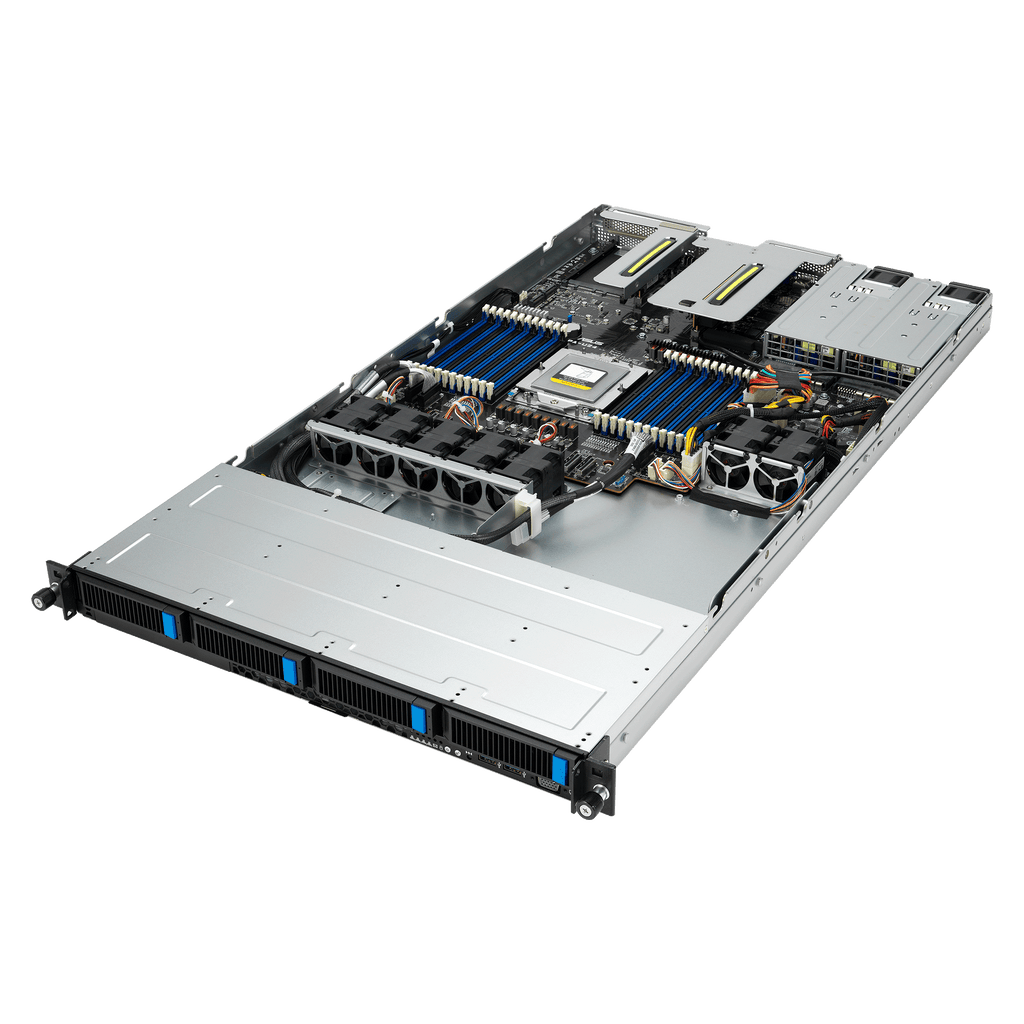

Chassis:

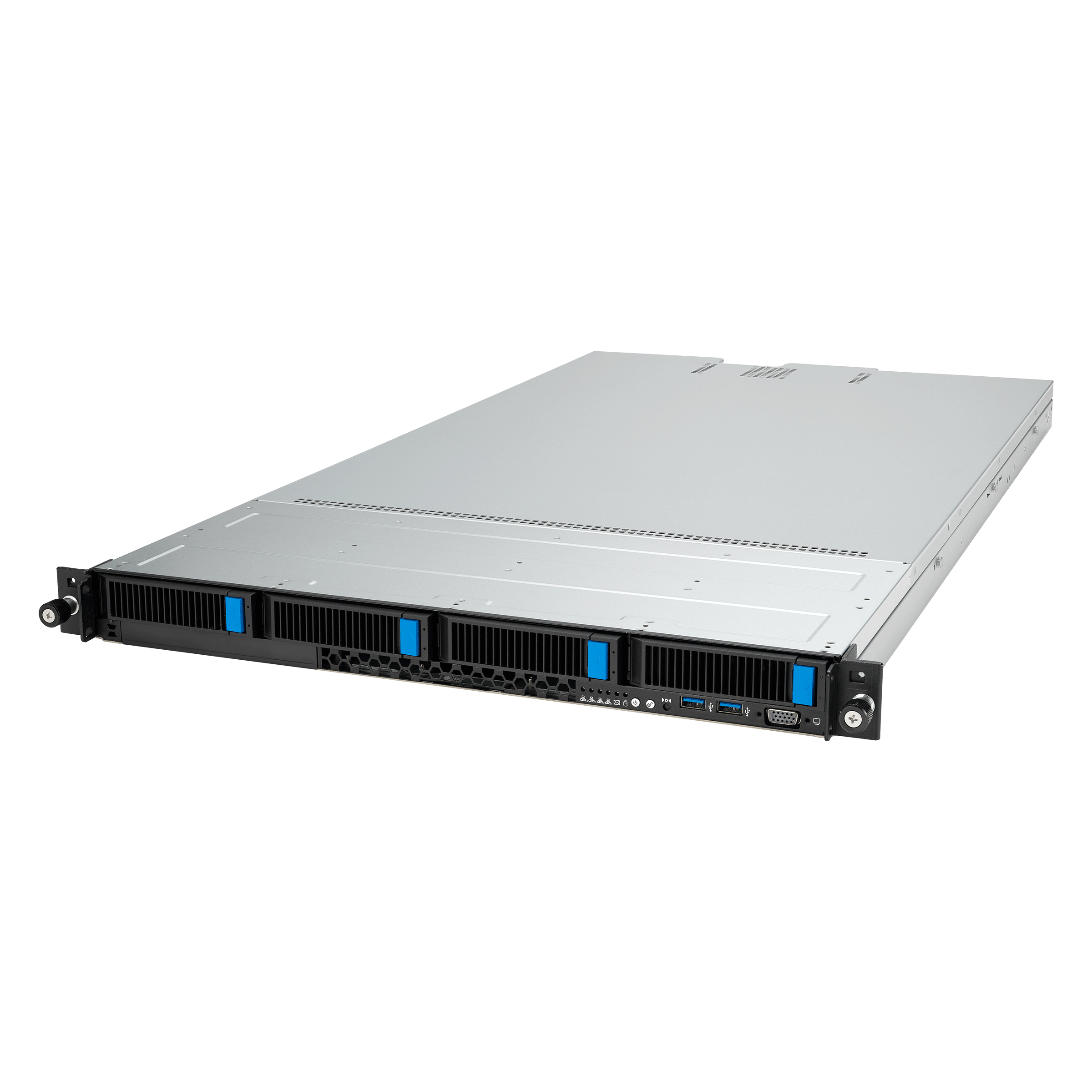

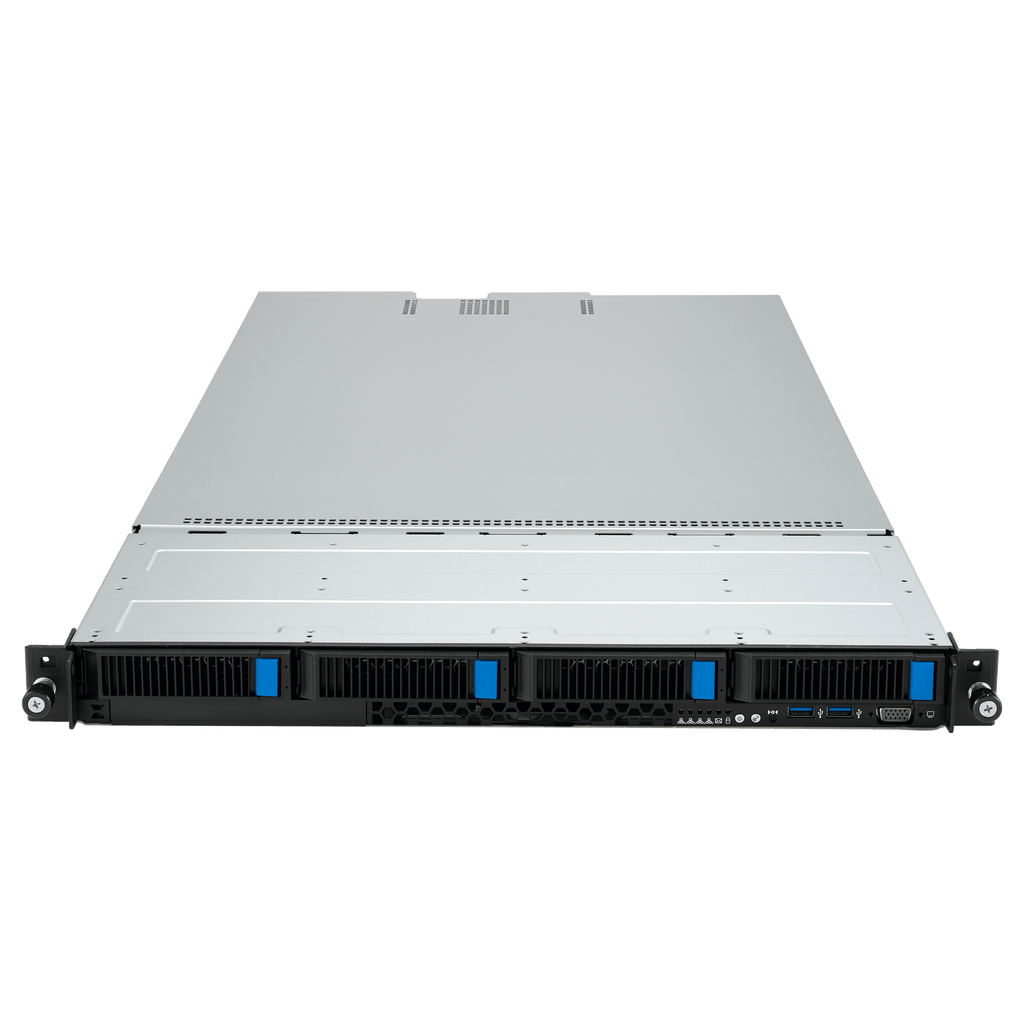

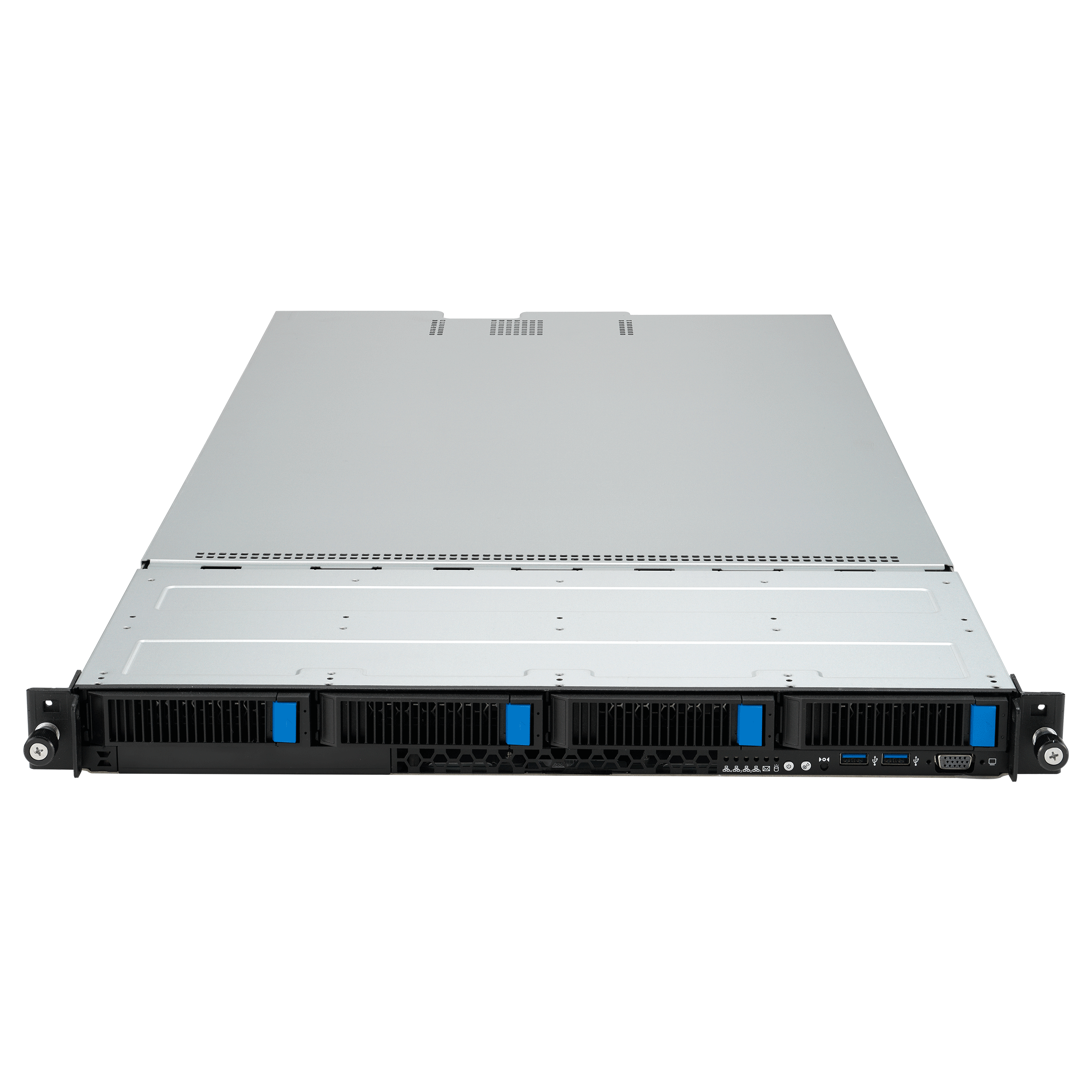

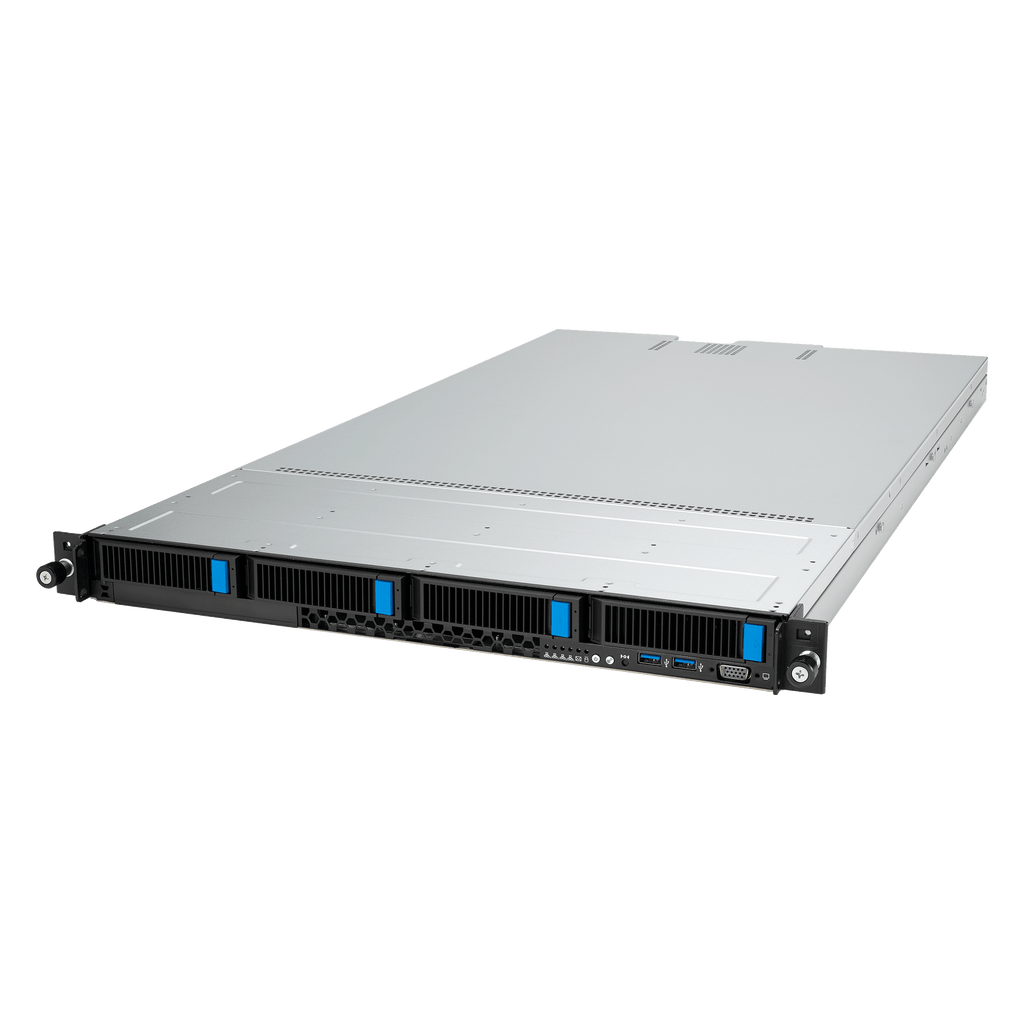

• Front Flex Bay 1U - 4 x 3.5" SATA/SAS/NVMe SSDs

Processor types:

• 1 x AMD EPYC 9004 Genoa CPUs
  Generation
• Up to 128 Cores Processor
• Up to 400W TDP for processor
• Socket: SP5 LGA-6096

Memory RAM types:

• 24 Slots, 12 channels
• 12 channels 2 slots per channel
• Max configuration: 6TB DDR5 4800 MT/s
  24 x 256GB ECC Registered

Storage Options 2.5" Drives
& 2 x M.2 Gen4

• NVMe M.2: 3.84TB
• SAS SSDs: 7.68TB @ 12GB/s
• SATA SSD: 15.36TB @ 6GB/s
• NVMe U.2: 7.68TB

GPU Options:

• Up to 2 Single-Slot GPU Cards
• Number of NVMe drives will affect the
  total number of GPUs that can be installed.

Operating Systems:

• Windows Server 2022
• Ubuntu 22.04 LTS
• ESXi 8.0
• RHEL 9.x

Power Supplies:

• 1+1 1600W 80 PLUS Titanium
• 1+1 Redundant 1600W 80 PLUS Platinum
• 1+1 Redundant 1200W 80 PLUS Platinum

Storage Controllers RAID Options:

• HBA/RAID card - includes SAS Support.

Security:

• Trusted Platform Module
• PFR Module

Network Interface Card Options (NICs)

• Integrated: Intel i350-AM2
  ? 2x 1GbE RJ45 onboard LAN
• 2 x 10 OCP Card
• 1 x Management LAN

Expansion Slots:

• 1x PCIe x16 Gen5 Full Height
• 1x PCIe x16 Gen5 Low Profile
• 1x PCIe x16 Gen5 x8 Link Low Profile
• 1 x OCP3.0 Socket Gen5
