Overview

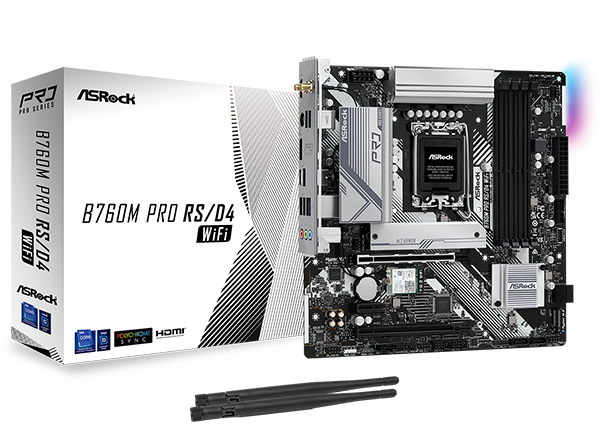

ASRock B760M PRO RS/D4 WIFI Motherboard features an Intel LGA1700 socket supporting 12th, 13th, and 14th Gen Core CPUs with DDR4 memory up to 128 GB. It includes PCIe 4.0 x16 GPU slot, 2 M.2 Gen4 slots, Wi-Fi 6E, Bluetooth 5.3, 2.5G Ethernet, HDMI/DisplayPort outputs, and 7.1 HD audio in a Micro ATX form factor.

Specifications

Model Number:  B760M PRO RS/D4 WIFI

Brand:ASRock

Alt Part Number(s):  B760M PRO RS/D4 WIFI

Product Type:  Motherboard

Technical Description

Brand:ASRock

Model:  B760M PRO RS/D4 WIFI

CPU Socket: Intel LGA1700

Supported CPUs: 12th Gen Intel® Core™; 13th Gen Intel® Core™; 14th Gen Intel® Core™

Chipset: Intel® B760

Boost Tech: Turbo Boost Max 3.0; Thermal Velocity Boost; Adaptive Boost

Memory Type: DDR4

Memory Slots / Max: 4 DIMMs; up to 128 GB

Memory Speed: Up to 5333+ MHz (OC)

Memory Profiles: Intel XMP 2.0

PCIe GPU Slot: 1 × PCIe 4.0 x16

Integrated Graphics: Intel Xe / UHD (CPU dependent)

Display Outputs: HDMI 2.1 (up to 4K @ 60Hz); DisplayPort 1.4 (up to 8K @ 60Hz / 5K @ 120Hz)

M.2 Slots: 2 × PCIe Gen4 x4

SATA Ports: 4 × SATA 6 Gb/s

RAID Support: RAID 0; RAID 1; RAID 5; RAID 10

LAN: 2.5G Ethernet (Dragon RTL8125BG)

Wireless: Wi-Fi 6E; Bluetooth 5.3

Audio Codec: Realtek ALC897

Audio Channels: 7.1 HD Audio with Nahimic

USB Ports: USB-C & USB-A (USB 3.2 Gen1 and USB 2.0)

Expansion Slots: PCIe 4.0 x16; PCIe 4.0 x4; PCIe 4.0 x1

VRM: 7+1+1 power phase; 50A Dr.MOS

Cooling: Multiple fan and water-pump headers with smart control

Form Factor: Micro-ATX; 24.4 × 24.4 cm

OS Support: Windows 10 64-bit; Windows 11 64-bit

*
