Overview

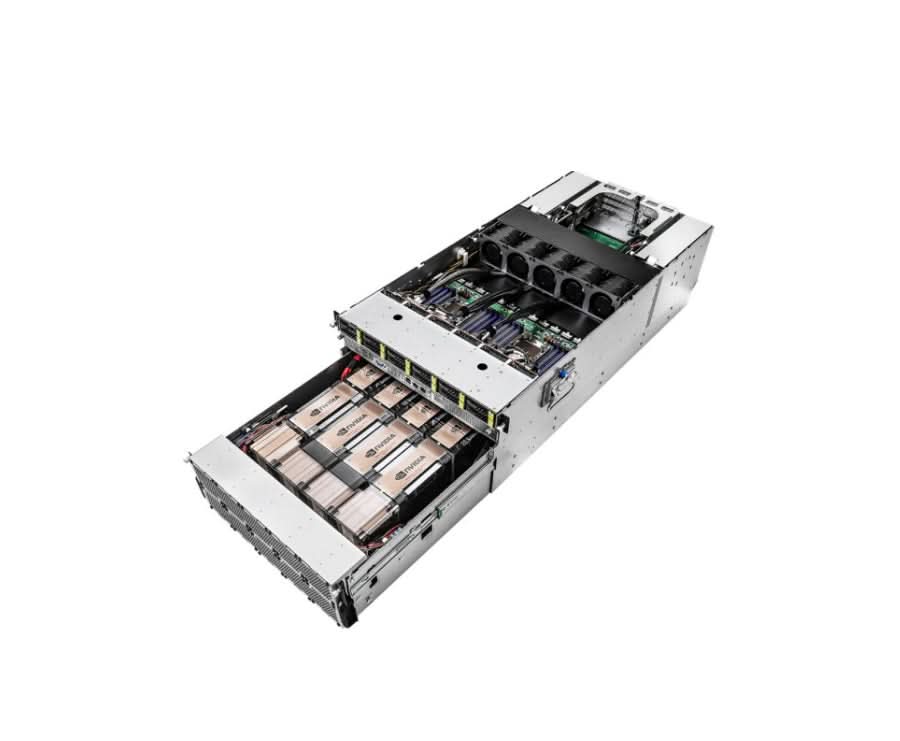

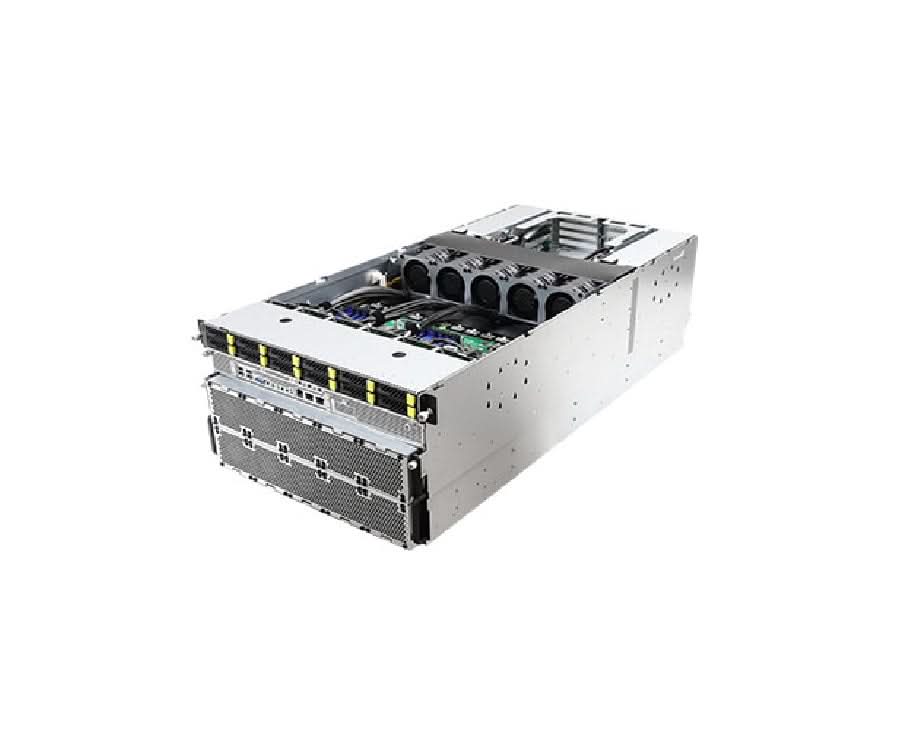

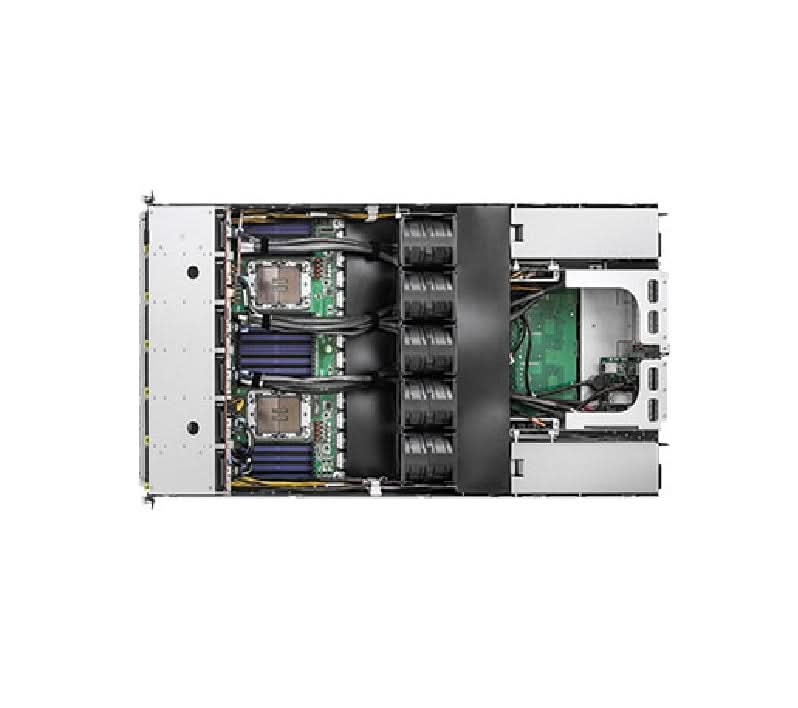

The ASRock Rack 6U8X-EGS2 H200 is a high-performance, 6U rackmount server engineered specifically for demanding artificial intelligence (AI), high-performance computing (HPC), and large language model (LLM) workloads. It is one of ASRock Rack's most powerful AI training systems, designed to accommodate the latest and most powerful hardware.
Specifications
Model Number: 6U8X-EGS2 H200
Brand: ASRock
Alt Part Number(s): 6U8X-EGS2 H200
Product Type: GPU Server
Technical Description
Brand: ASRock
Model Number: 6U8X-EGS2 H200
Processor Type: 4th,5th Generation Intel Xeon Scalable
4th Gen Intel Xeon: RDIMM: Up to 5600 MT/s 1DPC, 4400 MT/s 2DPC
5th Gen Intel Xeon: RDIMM: Up to 4800 MT/s 1DPC, 4400 MT/s (2DPC)
Processor Power: Up to 350W
Processor Socket: LGA 4677 Socket E
Chipset Type: Intel C741
Motherboard: SP2C741D32G‑2L+
Number of Channels: 8-Channel
Storage Hot-swap: 8 x 2.5" NVMe/SATA
Controller Type: PCIe3.0 x4/SATA 6Gbps
Storage Type: SSD
GPU Supported: NVIDIA HGX H200
Graphics Controller: ASPEED AST2600
Memory Supported: 3TB
Memory Technology: DDR5
Memory Slots: 32 x DIMM
Expansion Slots: 16
Power Supply: 4+4 3000W 80-Plus
Output Voltage: 208 - 230 V AC
Protocols: Web, SNMP, Telnet
Form Factor: 6U Rackmount/GPU Server
*
