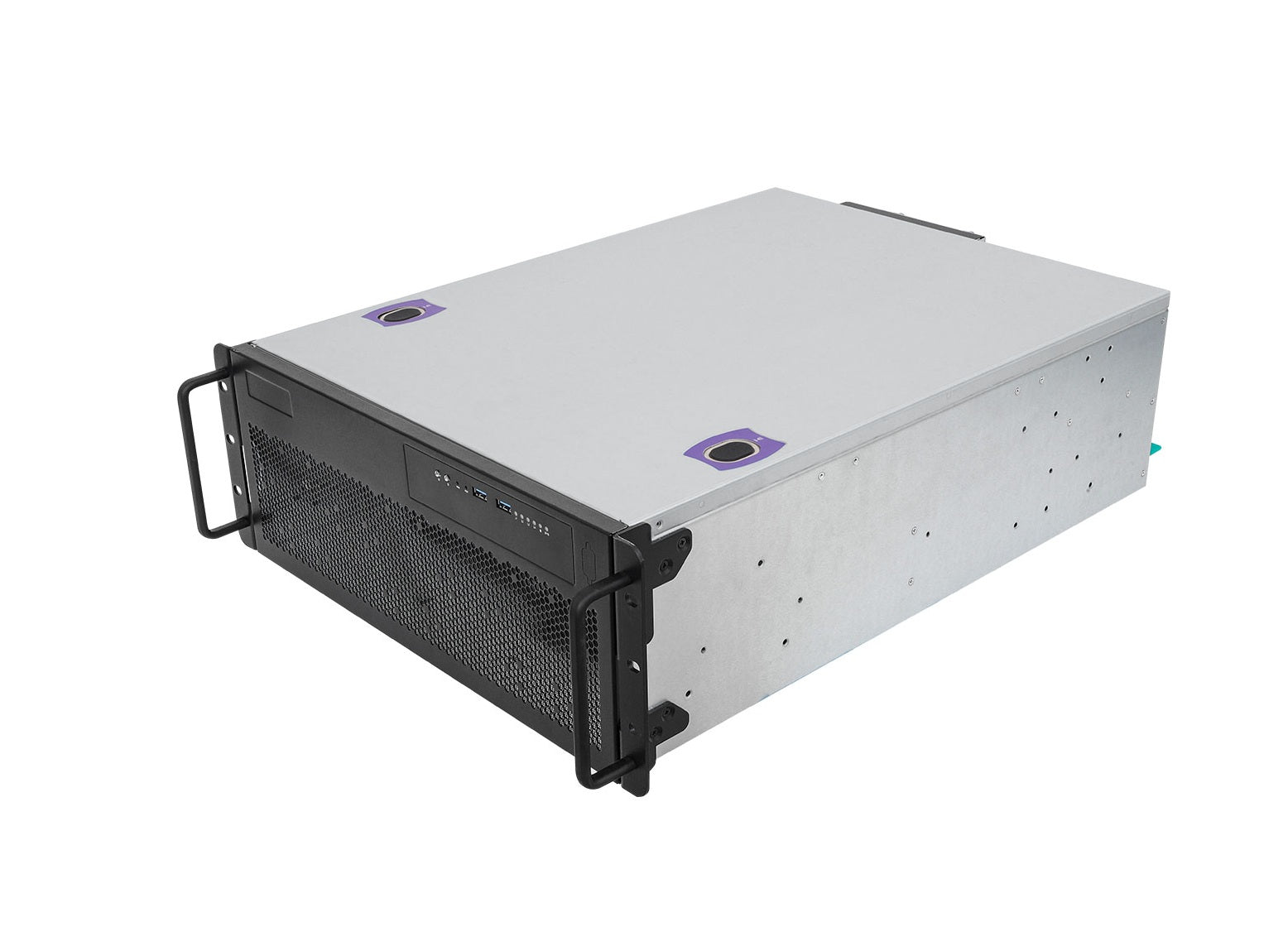

The ASRock Rack 4U4G-WRX80/2T is a 4U rackmount server barebone designed for high-performance computing (HPC), AI, and professional workstation tasks. It is built around the AMD Ryzen™ Threadripper™ PRO 5000WX/3000WX processor series, offering a massive core count and extensive PCIe 4.0 expansion for GPU-heavy workloads.
Specifications
Model Number: 4U4G-WRX80/2T
Brand: ASRock
Alt Part Number(s): 4U4G-WRX80/2T
Product Type: Barebone Server
Technical Description
Brand: ASRock
Model Number: 4U4G-WRX80/2T
Processor Type: AMD Ryzen Threadripper PRO 5000WX / 3000WX Series
Processor Socket: Single sWRX8 (LGA 4094)
Processor Core: 64-Core/128 Threads
Processor Power: 280W
Chipset Type: AMD WRX80
Motherboard: WRX80D8-2T
Networking: 2 × 10GbE LAN (Intel X710)
Drive Bays: 2 × 2.5″ SATA hot‑swap, 2 × M.2 PCIe4.0
Graphics Controller: ASPEED AST2500 IPMI via
Memory Capacity: 256GB RDIMM-3DS per DIMM, Up to ~1 TB total (8 × 128GB)
Memory Supported: 2TB
Memory Channels: 8‑Channel
Memory Slots: 8 × DDR4 DIMM (1 DPC)
Expansion Slots: Up to 7 × PCIe4.0 x16 slots
Cooling: 6 PWM easy-swap GPU fans
Power Supply: 1+1 redundant 1600 W CRPS 80 PLUS Platinum
Form Factor: 4U Rackmount
