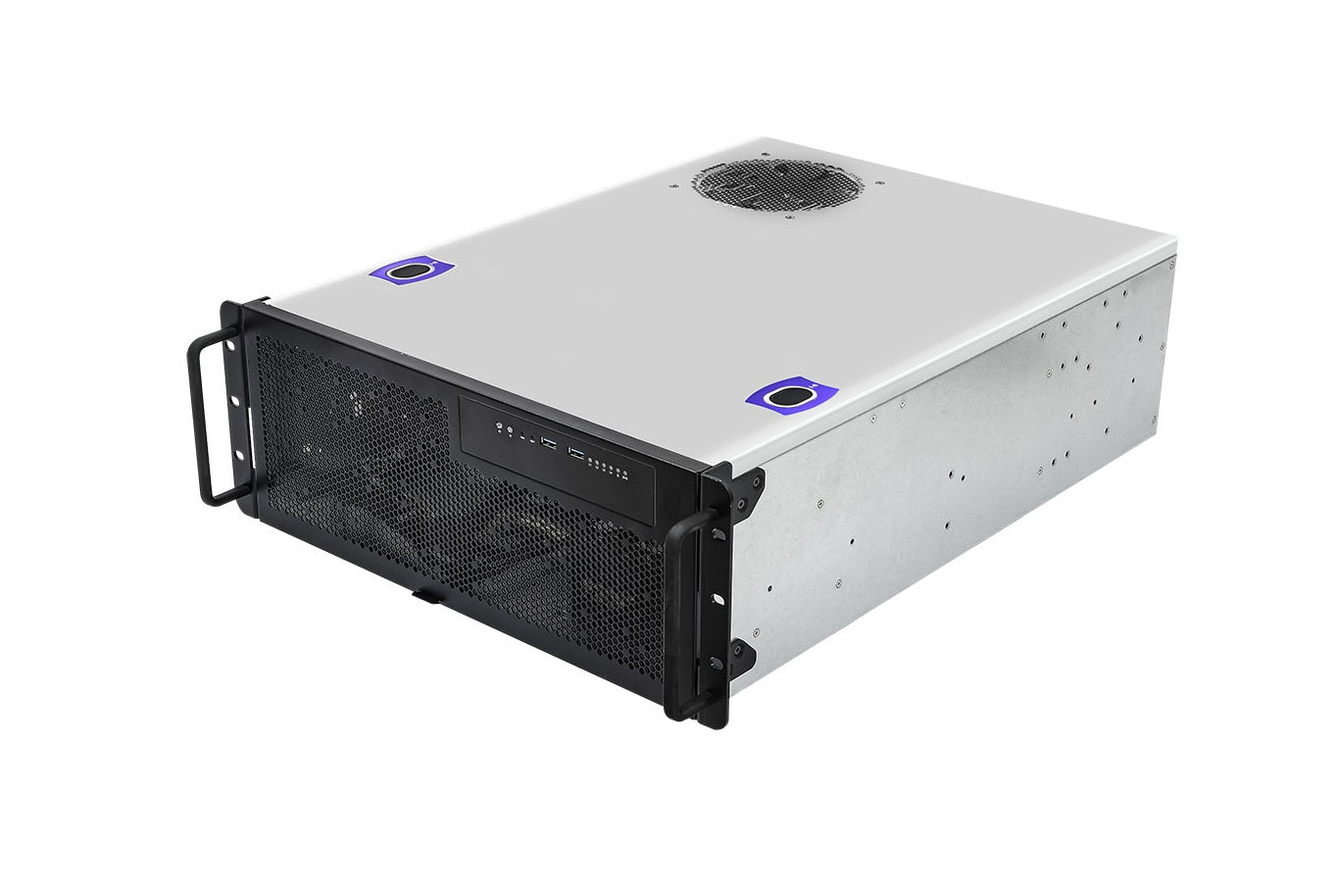

The ASRock Rack 4U4G-TR5/2T AQUA is a liquid-cooled 4U rackmount barebone server specifically designed for high-end workstations and AI development using the AMD Ryzen™ Threadripper™ PRO 9000 and 7000WX series processors.
Specifications
Model Number: 4U4G-TR5/2T AQUA
Brand: ASRock
Alt Part Number(s): 4U4G-TR5/2T AQUA
Product Type: Barebone Server
Technical Description
Brand: ASRock
Model Number: 4U4G-TR5/2T AQUA
Processor Type: AMD Ryzen Threadripper PRO 9000/7000WX Series
Processor Socket: Single sTR5 (LGA 4844)
Processor Core: 96-Core/192 Threads
Processor Power: 350W
Chipset Type: AMD WRX90
Motherboard: WRX90 WS EVO (BTO)
Networking: 2 × 10 GbE RJ45 ports (Intel X710)
Drive Bays: 4 × 3.5″/2.5″ NVMe (PCIe 4.0 ×4) or SATA
Graphics Controller: ASPEED AST2600
Memory Capacity: Up to 256GB per DIMM
Memory Supported: Up to 2 TB
Memory Technology: DDR5 RDIMM and RDIMM‑3DS
Memory Channels: 8‑Channel
Memory Slots: 8 x DIMM
Expansion Slots: 6 × PCIe 5.0 x16, 1 × PCIe 5.0 x8
Cooling: 5 PWM fans
Power Supply: (1) 80 PLUS Gold 2000W ATX PSU
Form Factor: 4U Rackmount
