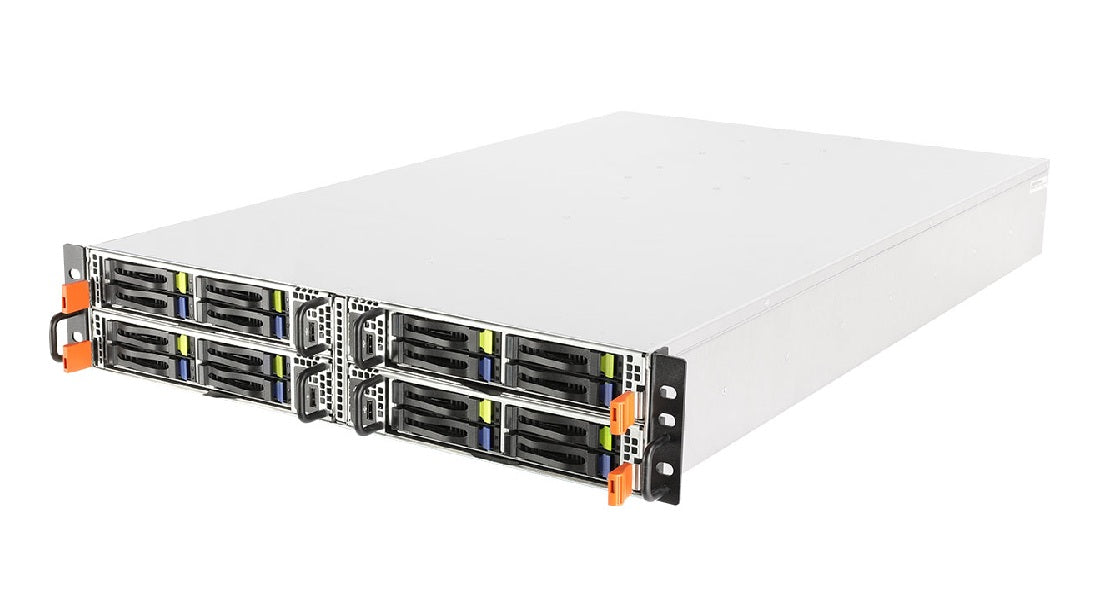

The ASRock Rack 2U4N-F/C621-M3 is a high-density 2U rackmount server barebone designed for high-performance computing (HPC), data centres, and cloud environments. It features a multi-node architecture, containing four independent hot-swappable nodes within a single 2U chassis
Specifications
Model Number: 2U4N-F/C621-M3
Brand: ASRock
Alt Part Number(s): 2U4N-F/C621-M3
Product Type: Barebone Server
Technical Description
Brand: ASRock
Model Number: 2U4N-F/C621-M3
Chassis Model: 2U4N-F
Processor Type: 2nd Gen Intel Xeon Scalable Processors
Processor Core: 224 Core/448 Thread
Processor Power: Up to 150W per CPU
Processor Socket: Dual Socket P, LGA3647
Motherboard: EP2C621D16HM2-M3 x 4
Chipset Type: Intel C621
Graphics Controller: ASPEED AST2500
Networking: 8-Ports
RAID Levels: 0, 1, 5, and 10
Number of Drive Bays: 16 hot-swappable 2.5" drive bays
Expansion Slots: 12 Slots
Number of Nodes: 4 Node (1TB per node)
Memory Supported: Up to 4TB
Memory Technology: DDR4
Memory Speed: 2666/2400 RDIMM and LRDIMM
Memory Slots: 16 DIMM Slots
Memory Channel: 6 Channel
Power Supply: 2 (1+1) 1600W Redundant
System Cooling: 16 high-performance Fans
Form Factor: 2U Rackmount
Height: 3.41"
Width: 17.41"
Depth: 32.28"
