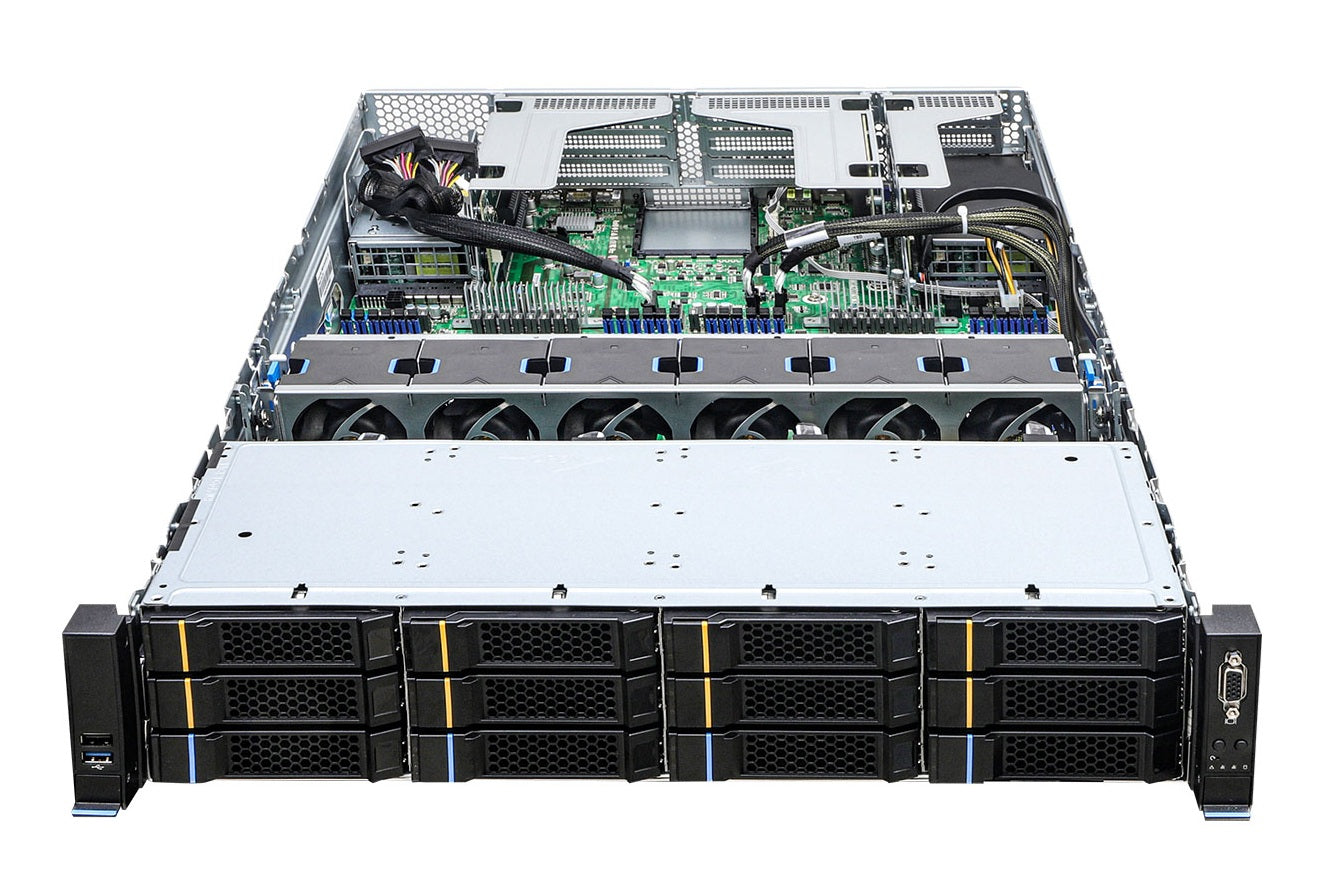

The ASRock Rack 2U12L8E-GENOA2 is a 2U rackmount barebone server designed for high-density storage and compute-intensive workloads. It is built on the GENOA2D24TM3-2L+/2U motherboard and supports dual AMD EPYC 9004/9005 series processors
Specifications
Model Number: 2U12L8E-GENOA2
Brand: ASRock
Alt Part Number(s): 2U12L8E-GENOA2
Product Type: Barebone Server
Technical Description
Brand: ASRock
Model Number: 2U12L8E-GENOA2
Processor Type: AMD EPYC 9005/9004
Processor Core: 256 Core/512Thread
Processor Power: Up to 360W
Processor Socket: Dual Socket SP5 (LGA 6096)
Motherboard: GENOA2D24TM3-2L+/2U
Chipset Type: System on Chip
Graphics Controller: ASPEED AST2600 BMC
Ports: 2 × USB 3.2 Gen1 (Rear), 1 × USB 3.2 + 1 × USB 2.0 (Front), 1 × Serial (COM, RJ45) 1 × UID button/LED (service), 1 × VGA (DB15)
Networking: 2 × RJ45 1GbE LAN 1 × Dedicated IPMI
RAID Levels: 0, 1 , 5, 6, 10, 50, 60
Number of Drive Bays: 8 x NVMe/SATA Hybrid Bays, 4 x SATA Bays + 4 additional Internal slots
Expansion Slots: Up to five PCIe 5.0 slots and a dedicated OCP 3.0 slot
Memory Supported: Up to 6TB
Memory Technology: DDR5 288-pin RDIMM, RDIMM-3DS
Memory Speed: 4800MHz
Memory Slots: 12+12 DIMM slots (1DPC)
Power Supply: 1+1 redundant 2000W 80-PLUS Platinum
System Cooling: 6 PWM hot-swap 60x38 mm fans
Form Factor: 2U Rackmount
Height: 3.4"
Width: 17.2"
Depth: 30.3"
