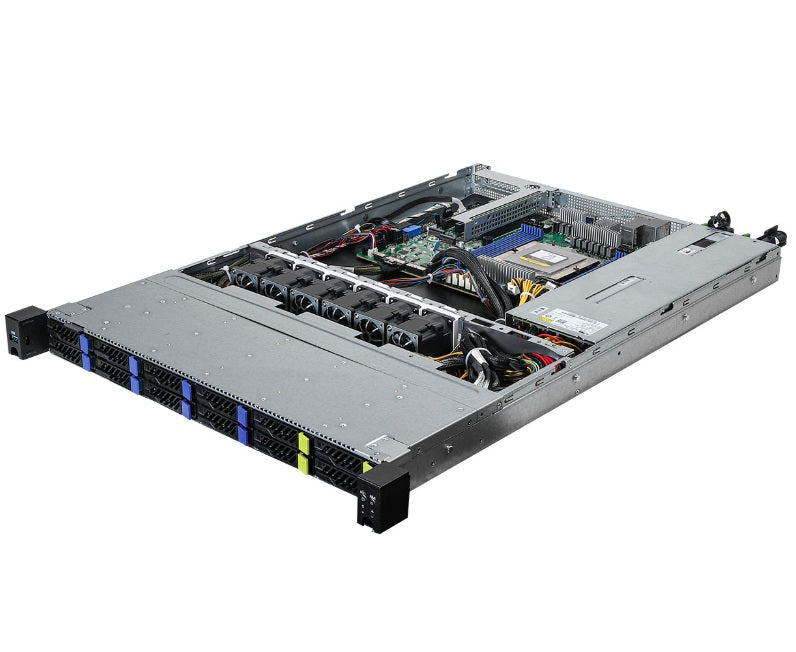

The ASRock Rack 1U8S4E-GENOA/2T is a high-density 1U rackmount barebone server platform designed for a single AMD EPYC™ 9004 series ("Genoa") processor. It is primarily engineered for virtualization, cloud computing, and general-purpose server workloads requiring high-speed storage and connectivity.
Specifications
Model Number: 1U8S4E-GENOA/2T
Brand: ASRock
Alt Part Number(s): 1U8S4E-GENOA/2T
Product Type: Barebone Server
Technical Description
Brand: ASRock
Model Number: 1U8S4E-GENOA/2T
Processor Type: AMD EPYC 9005/9004 Series
Processor Core: 96-Core/ 192-Thread
Processor Power: Up to 300W
Processor Socket: Single Socket SP5 (LGA 6096)
Motherboard: GENOAD8UD-2T/X550
Chipset Type: System on Chip
Graphics Controller: ASPEED AST2600
VRAM: DDR4 512MB
Networking: (10GbE) Intel X550-AT2: 2 RJ45
RAID Levels: RAID 0 / 1 / 5 / 6 / 10 / 50 / 60
Number of Drive Bays: 4 hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays, 8 hot-swap 2.5" SATA drive bays
Rear Expansion Slots: 1 FHHL PCIe5.0 x16 via RB1UX16R_G5 (Up to 75W)
Memory Supported: 2TB
Memory Technology: DDR5
Memory Speed: 4800 MHz
Memory Slots: 8 DIMM slots
Memory Channels: 8-Channels
Cooling: 6 PWM Easy-swap 40x56 mm fans
Power Supply: 1+1 Slim PSU 750W 80-PLUS Platinum
Form Factor: 1U Rackmount
Height: 1.7"
Width: 17.2"
Depth: 26.6"
