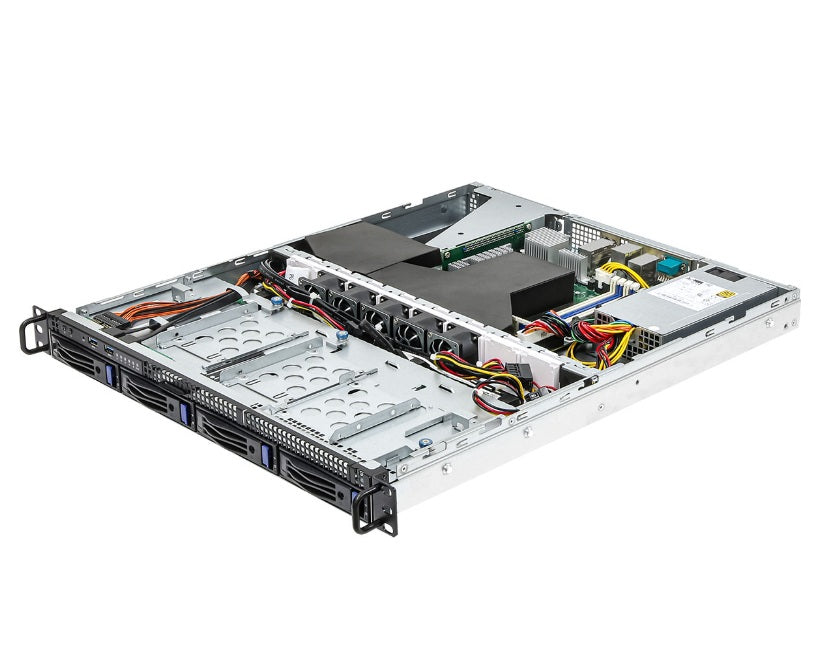

The ASRock Rack 1U4LW-X570/2L2T is a 1U rackmount barebone server designed for high-performance computing using AMD Ryzen desktop processors. Built around the X570D4U-2L2T motherboard, it is optimized for professional workloads, virtualization (with VMware support), and general-purpose server applications.
Specifications
Model Number: 1U4LW-X570/2L2T
Brand: ASRock
Alt Part Number(s): 1U4LW-X570/2L2T
Product Type: Barebone Server
Technical Description
Brand: ASRock
Model Number: 1U4LW-X570/2L2T
Processor Type: AMD Ryzen 5000 Series
Processor Core: 8-Core/ 16-Thread
Processor Power: Up to 105 W TDP
Processor Socket: AM4 PGA 1331
Motherboard: X570D4U-2L2T
Chipset Type: AMD X570
Graphics Controller: ASPEED AST2500
Networking: 2 × 10 Gigabit Ethernet (10GbE)
Number of Drive Bays: 4 Hot-swap 3.5'' HDD/SSD bays, 3 fixed 2.5" HDD/SSD bays
Rear Expansion Slots: 1 FHHL PCIe4.0 x16
Memory Supported: 128GB
Memory Technology: DDR4 SDRAM
Memory Speed: Up to DDR4-3200 (3200 MT/s)
Memory Slots: 4 DIMM slots
Memory Channels: 2-Channels
Cooling: 5 PWM Easy-swap 40x28 mm fans
Power Supply: Single PSU 400W 80-PLUS Gold
Form Factor: 1U Rackmount
Height: 1.7"
Width: 16.9"
Depth: 21"
