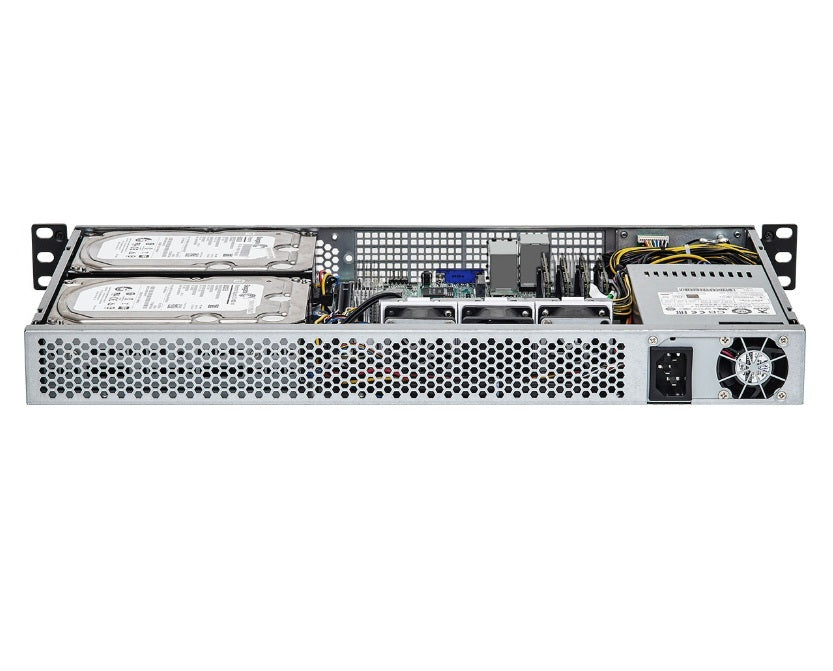

The ASRock Rack 1U4LW-C242 is a 1U rackmount server barebone system designed for entry-level server applications, such as small-scale hosting or storage-heavy workloads. It is based on the Intel C242 chipset and features the E3C242D4U motherboard.
Specifications
Model Number: 1U4LW-C242
Brand: ASRock
Alt Part Number(s): 1U4LW-C242
Product Type: Barebone Server
Technical Description
Brand: ASRock
Model Number: 1U4LW-C242
Processor Type: Intel Xeon E-2100/E-2200 Series Processor
Processor Core: 8-Core/ 16-Thread
Processor Power: Up to 95 W
Processor Socket: Socket LGA 1151
Motherboard: E3C242D4U
Chipset Type: Intel C242
Graphics Controller: ASPEED AST2500
Networking: 2 × 1 GbE RJ45
Number of Drive Bays: 4 × hot-swap 3.5″/2.5″ front + 2 × 2.5″ internal = 6 drives total
Expansion Slots: 1 × PCIe 3.0 ×16
Memory Supported: 128GB
Memory Technology: DDR4 UDIMM
Memory Speed: Non-ECC UDIMM: ECC UDIMM: 1600/1866/2133/2400/2666 MHz
Memory Slots: 4 DIMM slots
Memory Channels: 2-Channels
Cooling: 40 x 28 mm PWM Easy-Swap Fans x 5
Power Supply: Single PSU 400W
Form Factor: 1U Rackmount
Height: 1.7"
Width: 16.9"
Depth: 21"
