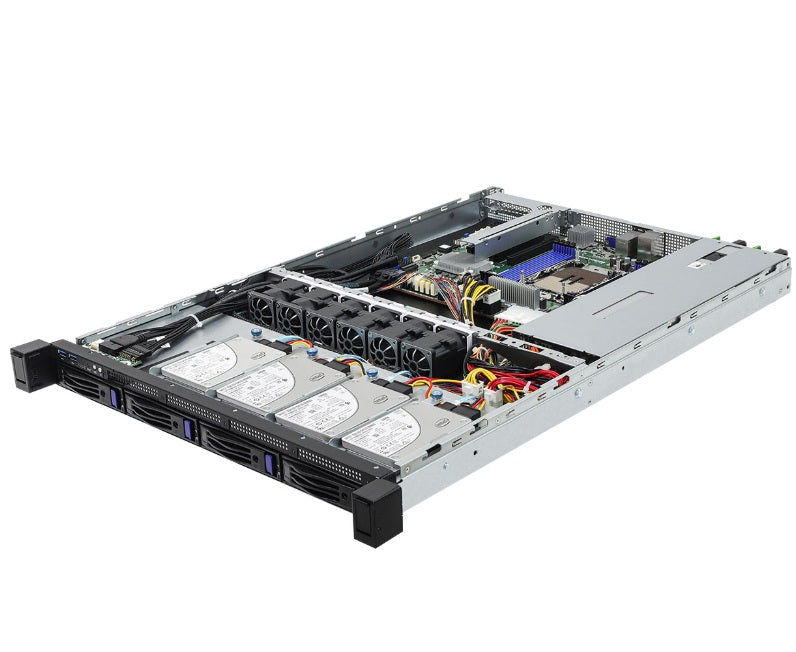

The 1U4L-EGS/2T is a 1U rackmount barebone server manufactured by ASRock Rack. It is designed for enterprise and general-purpose server applications, supporting the latest Intel Xeon Scalable processors.
Specifications
Model Number: 1U4L-EGS/2T
Brand: ASRock
Alt Part Number(s): 1U4L-EGS/2T
Product Type: Barebone Server
Technical Description
Brand: ASRock
Model Number: 1U4L-EGS/2T
5th Gen Processors Type: 5600 MT/s (Intel Xeon)
4th Gen Processors Type: 4800 MT/s (Intel Xeon)
Processor Core: 64-Core/ 128-Thread
Processor Power: Up to 300W
Processor Socket: Single Socket E (LGA 4677)
Motherboard: SPC741D8UD-2T/X550
Chipset: Intel C741
Graphics Controller: ASPEED AST2600
VRAM: DDR4 512MB
Networking: (10GbE) RJ45 by Intel X550-AT2
RAID Levels: RAID 0, 1, 5, 6, 10, 50, 60
Number of Drive Bays: 4 Hot-swap 3.5'' SATA drive bays, 4 fixed 2.5'' SATA drive bays
Rear Expansion Slots: 1 FHHL PCIe5.0 x16 via RB1UX16R_G5
Memory Supported: 2TB
Memory Technology: DDR5
Memory Slots: 8 DIMM slots
Memory Channels: 8-Channels
Cooling: 6 PWM Hot-swap 40x56 mm fans
Power Supply: 1+1 Slim PSU750W 80-PLUS Platinum
Form Factor: 1U Rackmount
Height: 1.7"
Width: 17.2"
Depth: 26.6"
