| Product Type: Barebone System |
| Manufacturer Part Number: 1U2LW-X570 |
| Manufacturer Website Address: https://www.asrockrack.com/index.asp |
| Maximum Memory Supported: 32 GB |
| Form Factor: Rack-mountable |
| Manufacturer: ASRock Rack Inc |
| Product Model: 1U2LW-X570 |

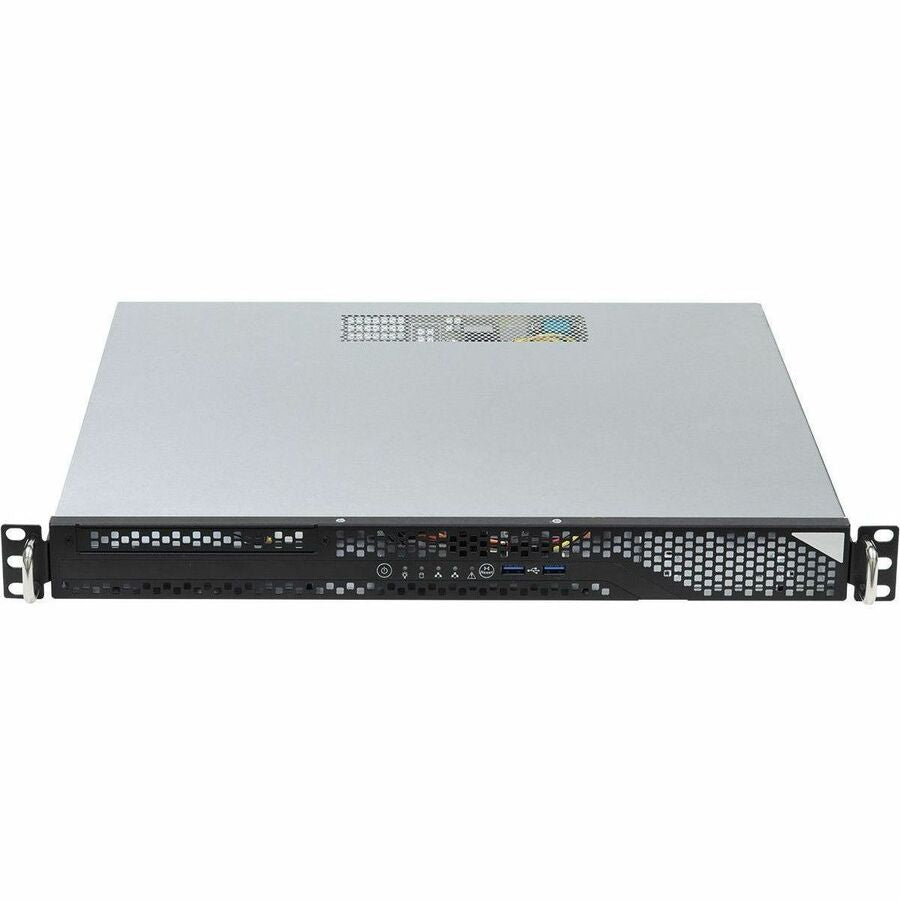

| Product Name: 1U2LW-X570 Barebone System |
| Processor Supported: Ryzen |
| Controller Type: Serial ATA/600 |
| Rack Height: 1U |
| Brand Name: ASRock Rack |
| Memory Technology: DDR4 SDRAM |
| Memory Standard: DDR4-3200/PC4-25600 |
| 64 Bit Processing: Yes |
| Chipset Manufacturer: AMD |
| Chipset Model: X570 |
| Graphics Controller Model: AST2500 |
| Number Of Power Supplies Installed: 1 |
| Graphics Memory Capacity: 16 MB |
| Graphics Memory Technology: DDR4 SDRAM |
| Graphics Memory Accessibility: Shared |
| Raid Supported: Yes |
| Ethernet Technology: Gigabit Ethernet |
| Number Of Total Expansion Bays: 2 |
| Number Of 3.5" Bays: 2 |
| Number Of Pci Express X16 Slots: 1 |
| Hdmi: Yes |
| Number Of Network (Rj 45) Ports: 3 |
| Network (Rj 45): Yes |
| Maximum Power Supply Wattage: 315 W |
| Total Number Of Usb Ports: 4 |
| Number Of Serial Ports: 1 |
| Number Of Vga Ports: 1 |
| Total Number Of Expansion Slots: 3 |
| Number Of M.2 Interfaces: 2 |
| Number Of Usb 3.2 Gen 1 Ports: 2 |
| Number Of Usb 3.2 Gen 2 Ports: 2 |
| Total Number Of Memory Slots: 4 |
| Feature1: 1U Rackmount with 315W PSU |
| Feature2: supports AMD Ryzen 5000 Series Desktop Processors |
| Feature3: 4 DDR4 ECC/ non-ECC UDIMM, up to 32GB each |
| Feature4: 2 fixed 3.5" drive bays |
| Feature5: 2 M.2 (PCIe4.0 x4) |
| Feature6: 1 FHHL PCIe4.0 x16 |
| Feature7: 2 RJ45 (1GbE) by Intel®i210 |
| Feature8: Remote management (IPMI) |
