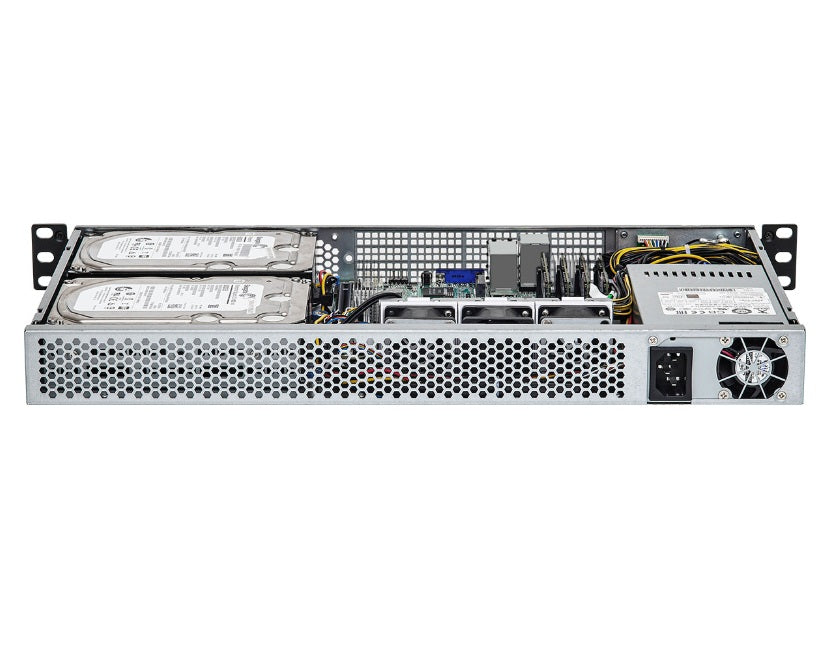

The ASRock Rack 1U2-X570/2T is a short-depth 1U rackmount server barebone designed for high-performance computing in a compact form factor. It features the ASRock Rack X570D4I-2T mini-ITX motherboard, which supports AMD Ryzen 5000 and 3000 series desktop processors.
Specifications
Model Number: 1U2-X570/2T
Brand: ASRock
Alt Part Number(s): 1U2-X570/2T
Product Type: Barebone Server
Technical Description
Brand: ASRock
Model Number: 1U2-X570/2T
Processor Type: AMD Ryzen 5000 Series
Processor Core: 16-Core/ 32-Thread
Processor Power: 65–105W
Processor Socket: AM4 PGA 1331
Motherboard: X570D4I-2T
Chipset Type: AMD X570
Graphics Controller: ASPEED AST2500
VRAM: DDR4 16MB
Networking: 2 × 10GbE RJ45, 1 × IPMI dedicated port
Number of Drive Bays: 2 × 3.5", 2 × 2.5", 1 × M.2 (total 5 drives)
Expansion Slots: 1 × PCIe 4.0 x16
Memory Supported: 128GB
Memory Technology: DDR4 SO‑DIMM
Memory Speed: up to 3200 MHz
Memory Slots: 4 SO‑DIMM slots
Memory Channels: 2-Channels
Cooling: 3 Easy-swap 40x28 mm fans
Power Supply: Single PSU 265W 80-Plus Bronze
Form Factor: 1U Rackmount
Height: 1.71"
Width: 16.93"
Depth: 9.84"
