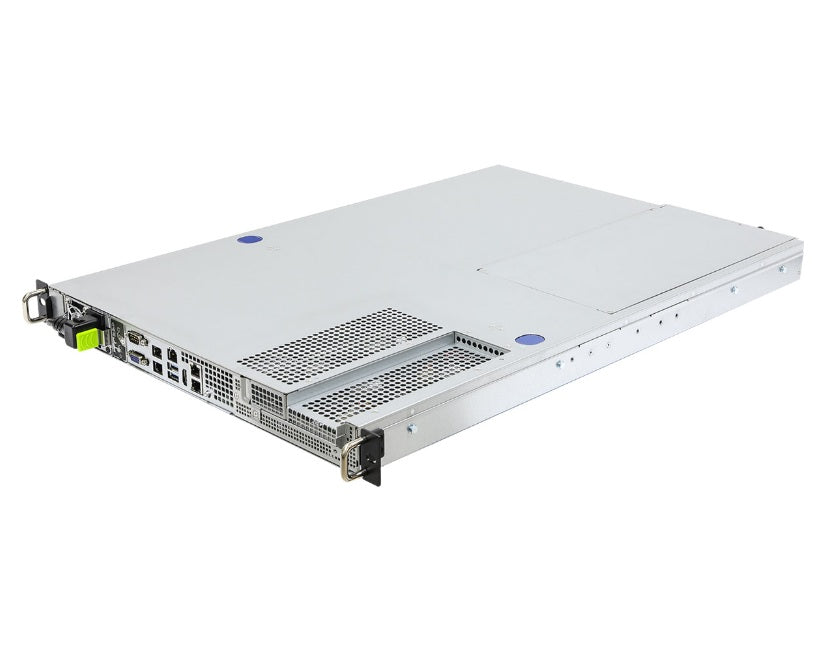

The ASRock Rack 1U1G-X570/2L2T is a 1U rackmount GPU server barebone designed for high-performance computing, edge deployment, and cloud gaming. It is built around the ASRock Rack X570D4U-2L2T micro-ATX motherboard and supports AMD Ryzen™ 5000 and 3000 series desktop processors.
Specifications
Model Number: 1U1G-X570/2L2T
Brand: ASRock
Alt Part Number(s): 1U1G-X570/2L2T
Product Type: Barebone Server
Technical Description
Brand: ASRock
Model Number: 1U1G-X570/2L2T
Processor Type: AMD Ryzen 5000 Series
Processor Core: 16 cores / 32 threads
Processor Power: 105W
Processor Socket: Single Socket AM4 (PGA 1331)
Motherboard: X570D4U-2L2T
Chipset: AMD X570
Graphics Controller: ASPEED BMC AST2500
Networking: 10GbE 2× RJ45 (Intel X550-AT2)
RAID Levels: 0, 1, 10
Number of Drive Bays: 2 Hot-swap 2.5" drive bays
Rear Expansion Slots: 1 FH dual-slot PCIe4.0 x16
Memory Supported: 128GB
Memory Technology: DDR4 SDRAM
Memory Speed: up to 3200 MHz
Memory Slots: 4× DDR4 DIMM
Memory Channels: 2-Channels
Cooling: 6 single-rotor 40x56 mm fans
Power Supply: 1+1 redundant 800W CRPS (80+ Platinum)
Form Factor: 1U Rackmount
Height: 1.7"
Width: 17.2"
Depth: 26"
