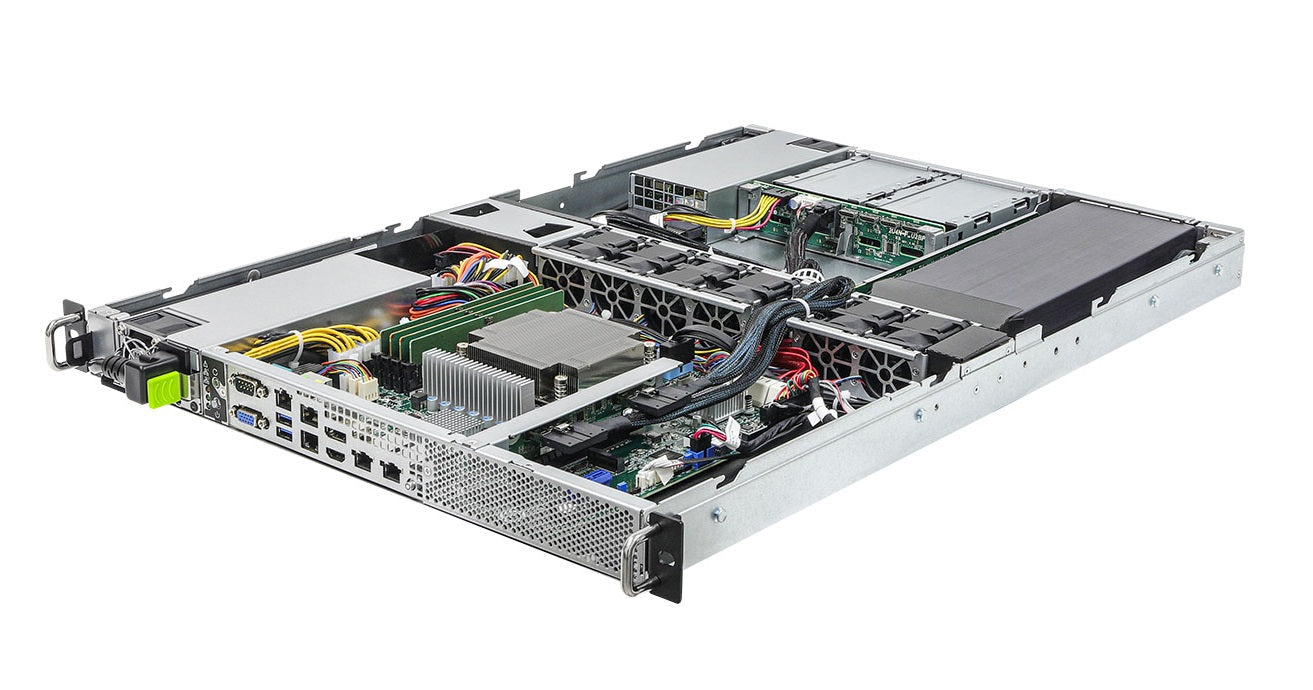

The 1U1G-W680/2L2T is a 1U rackmount barebone server from ASRock Rack designed for high-performance workloads such as high-frequency trading (HFT) and edge computing. It is built around the Intel W680 chipset and supports modern consumer-grade processors with server-grade networking and management features
Specifications
Model Number: 1U1G-W680/2L2T
Brand: ASRock
Alt Part Number(s): 1U1G-W680/2L2T
Product Type: Barebone Server
Technical Description
Brand: ASRock
Model Number: 1U1G-W680/2L2T
Processor Type: 12th, 13th, and 14th Gen Intel Core processors
Processor Core: 24 Core/32 Thread
Processor Power: TDP up to 125W
Processor Socket: Single Socket LGA 1700
Motherboard: W680D4U-2L2T/G5
Chipset Type: Intel W680
Graphics Controller: ASPEED AST2600
Networking: 5 (4 usable LAN + 1 management/IPMI)
Number of Drive Bays: 4 × 2.5" hot-swap SATA+1 × M.2 slot (PCIe 3.0 x4)
Expansion Slots: 1 × PCIe 4.0 x16
Memory Supported: 192GB (4 × 48GB per DIMM)
Memory Size: 128GB (4 × 32GB per DIMM)
Memory Technology: DDR5 288-pin ECC/non-ECC
Memory Speed: 4400, 4000, 3600MT/s
Memory Slots: 4 DIMM slots
Power Supply: 800W 1+1 Hot-swap CRPS 80-PLUS Platinum
System Cooling: 5 PWM single-rotor 40x56 mm fans, 1 PWM dual-rotor 40x56 mm fans
Form Factor: 1U Rackmount
