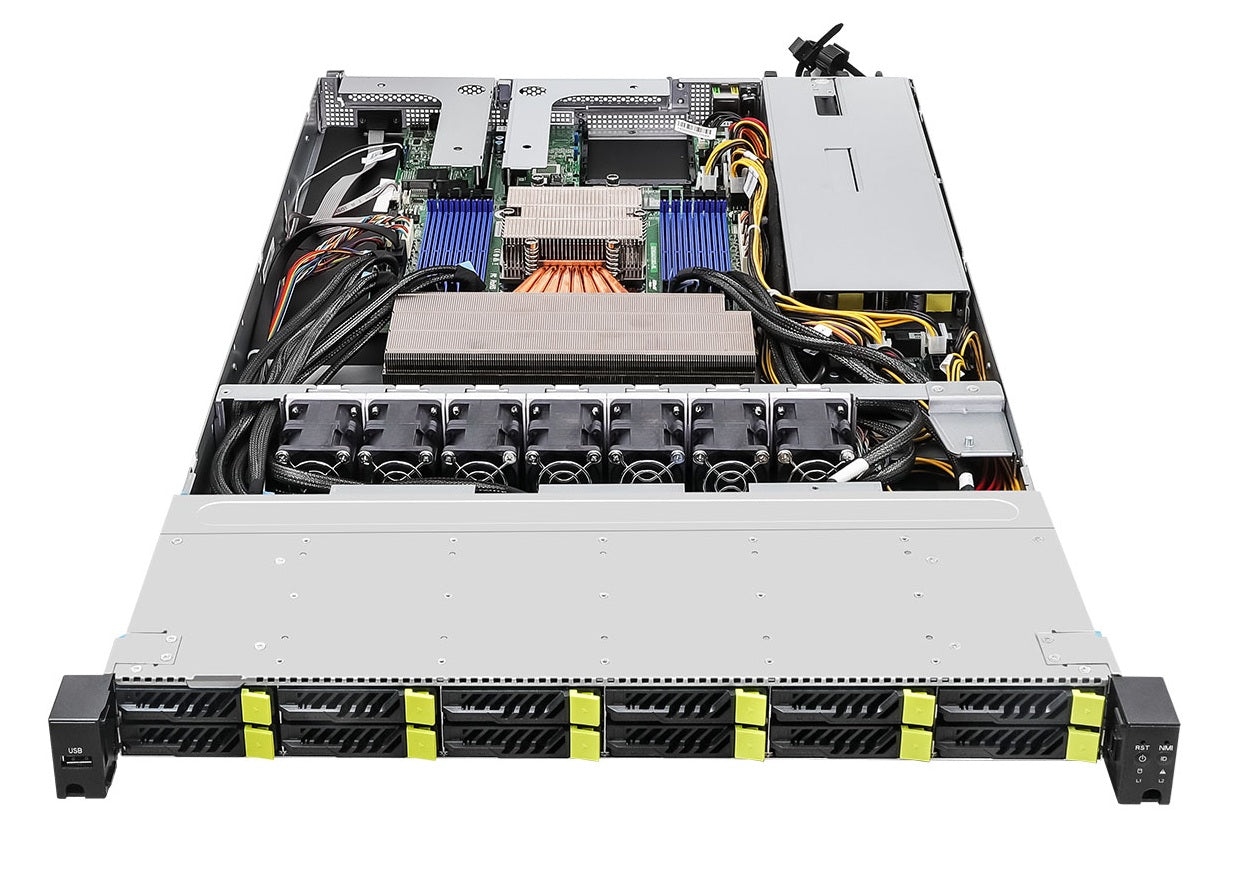

The term 1U12E-GENOA/EVAC refers to a specific 1U rackmount server barebone manufactured by ASRock Rack. It is designed for high-performance computing, specifically supporting AMD EPYC 9005 and 9004 series processors
Specifications
Model Number: 1U12E-GENOA/EVAC
Brand: ASRock
Alt Part Number(s): 1U12E-GENOA/EVAC
Product Type: Barebone Server
Technical Description
Brand: ASRock
Model Number: 1U12E-GENOA/EVAC
Processor Type: AMD EPYC 9005/9004 and 97x4 series processors
Processor Core: 192 Core/384 Thread
Processor Power: Up to 400W
Processor Socket: Single Socket SP5 (LGA 6096)
Motherboard: GENOAD12M3-NL
Chipset Type: System on Chip
Graphics Controller: ASPEED AST2600
Networking: 3 ports total (1 IPMI + 2 data ports)
Number of Drive Bays: 12 × hot-swap 2.5" NVMe drive bays+ 2 × M.2 slots
Expansion Slots: 3 Slots
Memory Supported: Up to 3TB
Memory Size: Up to 128GB per slot (RDIMM), Up to 256GB per slot (RDIMM-3DS)
Memory Technology: DDR5
Memory Speed: 4800MHz
Memory Slots: 12 DIMM slots
Power Supply: 1600W 1+1 redundant Slim PSU 80-PLUS Platinum
System Cooling: 7 PWM Hot-swap 40x56 mm fans
Form Factor: 1U Rackmount
Height: 1.7"
Width: 30.6"
Depth: 17.2"
