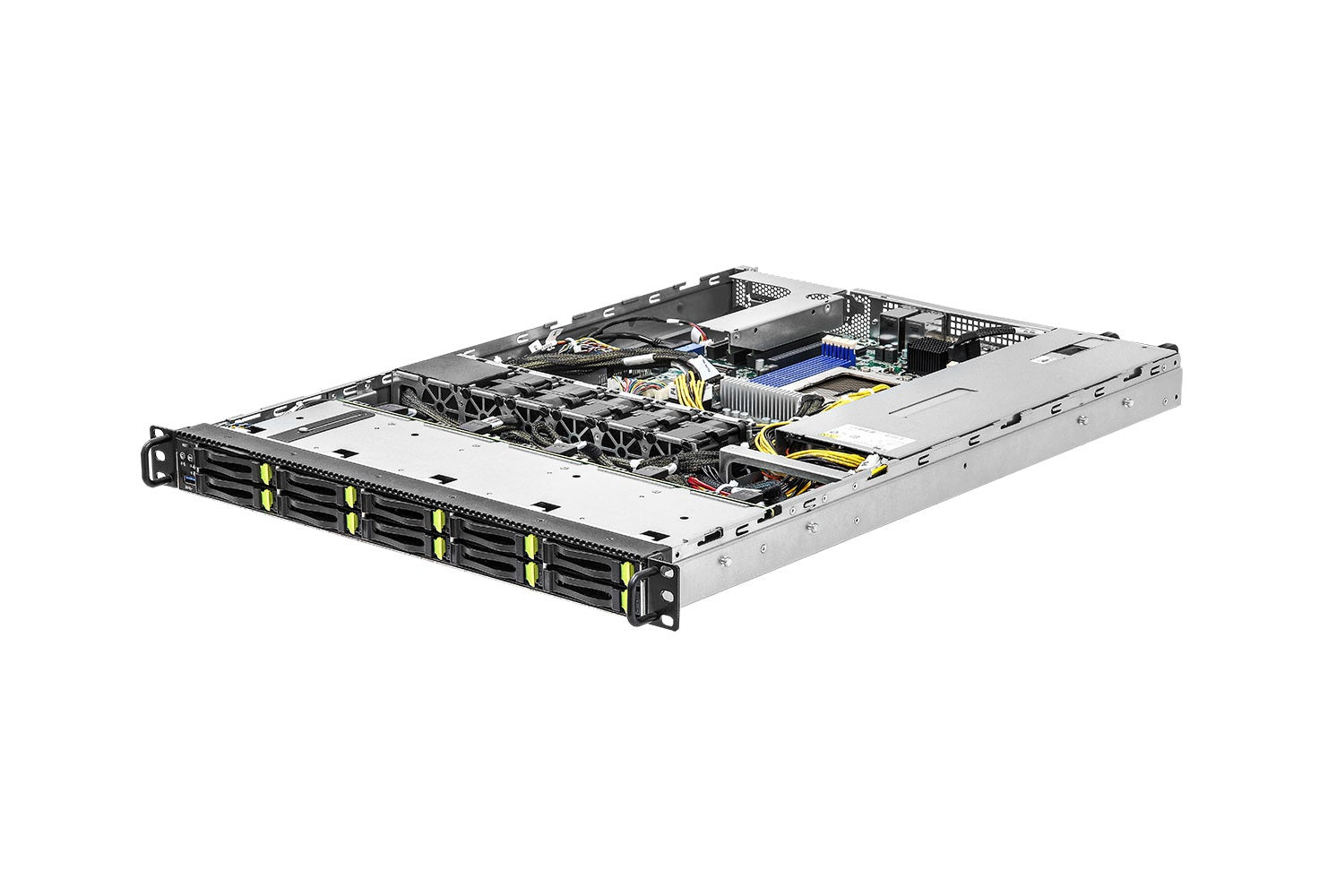

The ASRock Rack 1U10E-ALTRA/1L2T is a 1U barebone rackmount server designed for energy-efficient, high-density computing. It is built specifically to support the Ampere Altra and Altra Max ARM-based processor families, which offer high core counts with significantly lower power consumption compared to traditional x86 architectures.
Specifications
Model Number: 1U10E-ALTRA/1L2T
Brand: ASRock
Alt Part Number(s): 1U10E-ALTRA/1L2T
Product Type: Barebone Server
Technical Description
Brand: ASRock
Model Number: 1U10E-ALTRA/1L2T
Processor Type: Ampere Altra Max/Ampere Altra processors
Processor Socket: Single LGA 4926
Processor Core: 128 Core
Processor Power: 250W
Chipset Type: System on Chip
Motherboard: AltraD8UD-1L2T
Networking: 2 x 10GbE RJ45 (Intel X550) + 1 x 1GbE RJ45 (Intel i210)
Drive Bays: 10 × Hot-swap NVMe (PCIe 4.0 x4),2 × M.2 (PCIe 4.0 x4, 2280/2230)
Graphics Controller: ASPEED AST2500 with 512MB DDR4 VRAM
Memory Supported: 2TB
Memory Technology: DDR4, RDIMM / LRDIMM
Memory Channels: 8 Channels
Memory Slots: 8 x DIMM
Expansion Slots: 1 × PCIe 4.0 x16 (FHFL PCIe4.0 x8)
Cooling: 5 PWM easy-swap fans
Power Supply: 1+1 Redundant 650W Slim PSUs (80-PLUS Platinum)
Form Factor: 1U Rackmount
