Overview

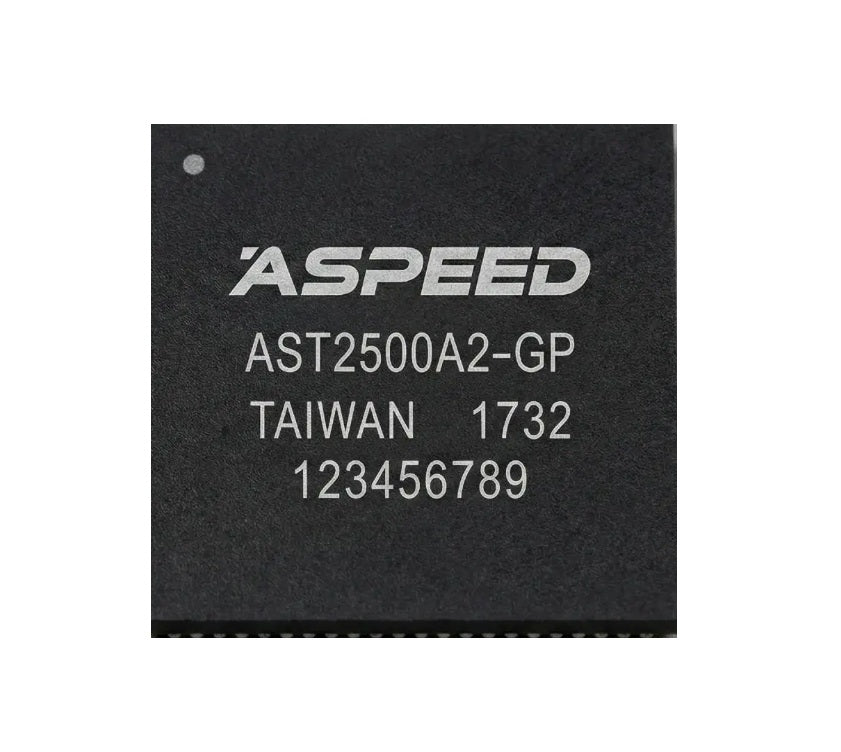

The ASPEED AST2500A2-GP is an integrated circuit (IC) primarily used as a Baseboard Management Controller (BMC) for server remote management. As an individual electronic component, it is extremely lightweight, typically weighing less than 0.01 lbs

Specifications

Model Number:  AST2500A2-GP

Brand:  ASPEED

Alt Part Number(s):  AST2500A2-GP

Product Type:  Baseboard Management Controller

Technical Description

Brand:  ASPEED

Model:  AST2500A2-GP

CPU Core:  ARM1176JZ-S

CPU Speed:  Up to 800MHz, 1-core

Host Interface:  PCIe Gen2 x1

Storage Interface:  Static Memory Controller (SMC) for SPI/NAND

Network:  2 × MAC controllers

Memory Type: DDR3 / DDR4 SDRAM

Memory Bus Width:  16-bit

Memory Capacity:  Up to 1GB

Firmware Storage:  SPI Flash (for BMC firmware)

Integrated GPU:  2D VGA controller

Resolution:  1920 × 1200 (60Hz)

Acceleration:  Basic 2D only (no 3D)

Network Protocols:  RGMII, RMII, NC-SI

*
