Description

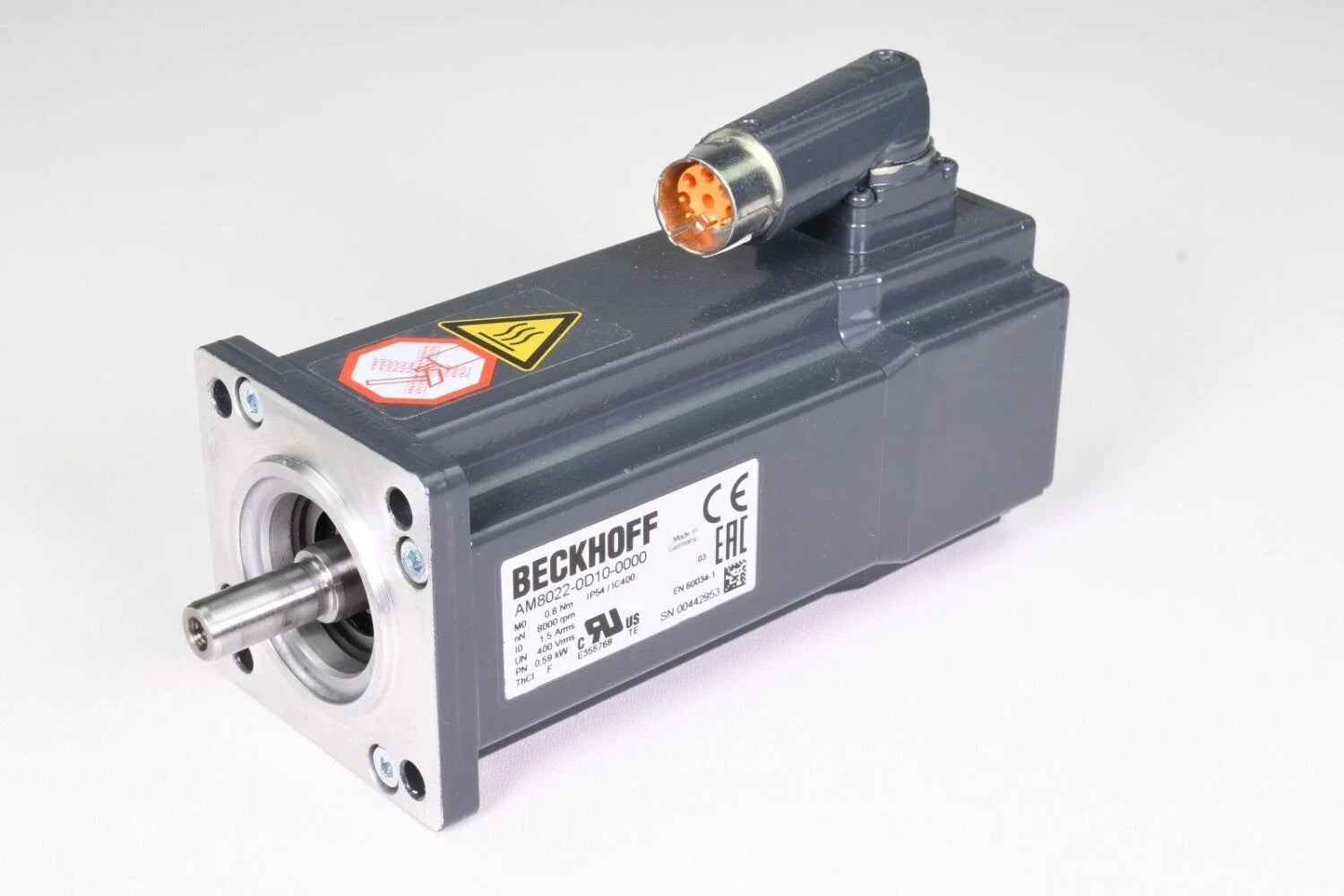

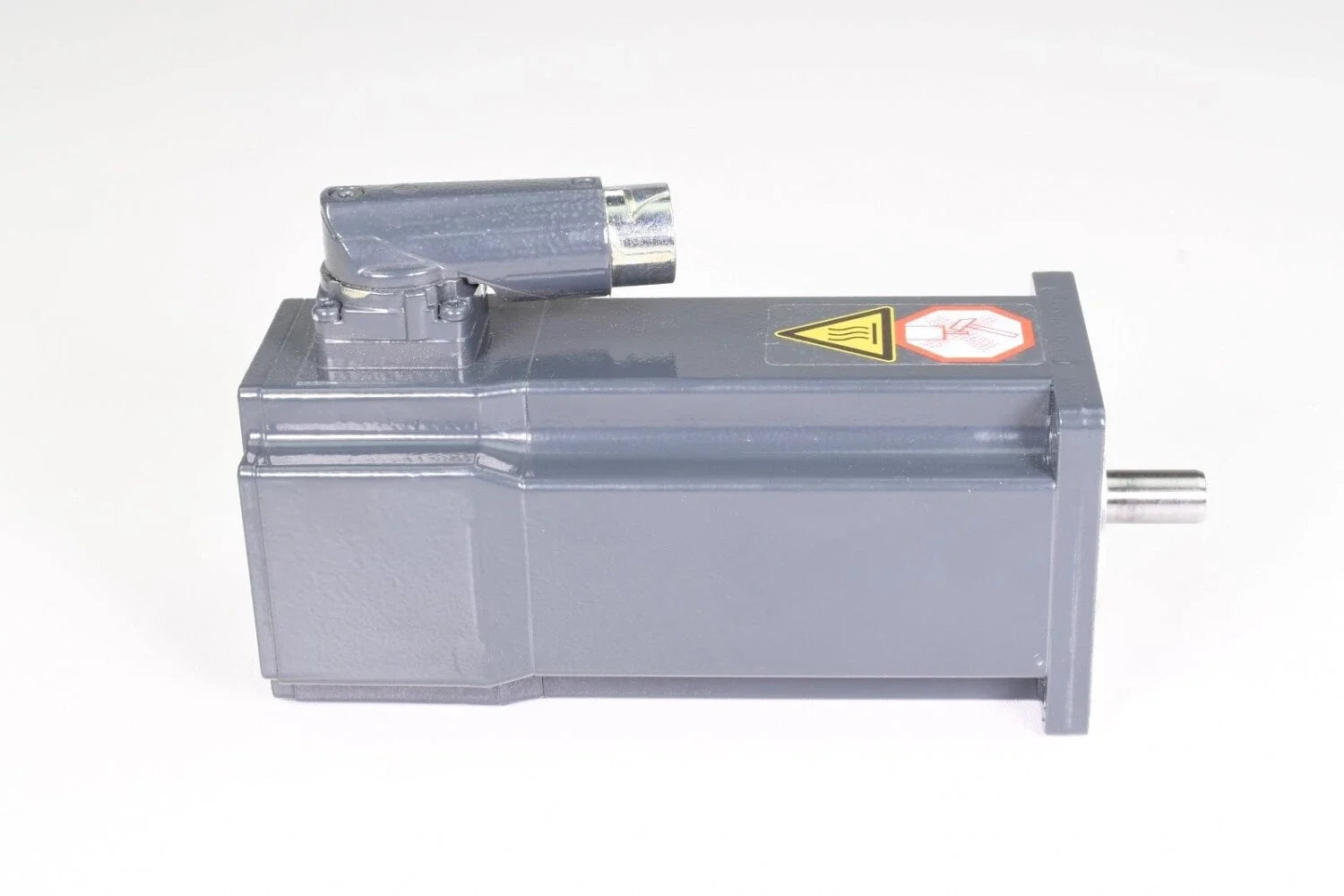

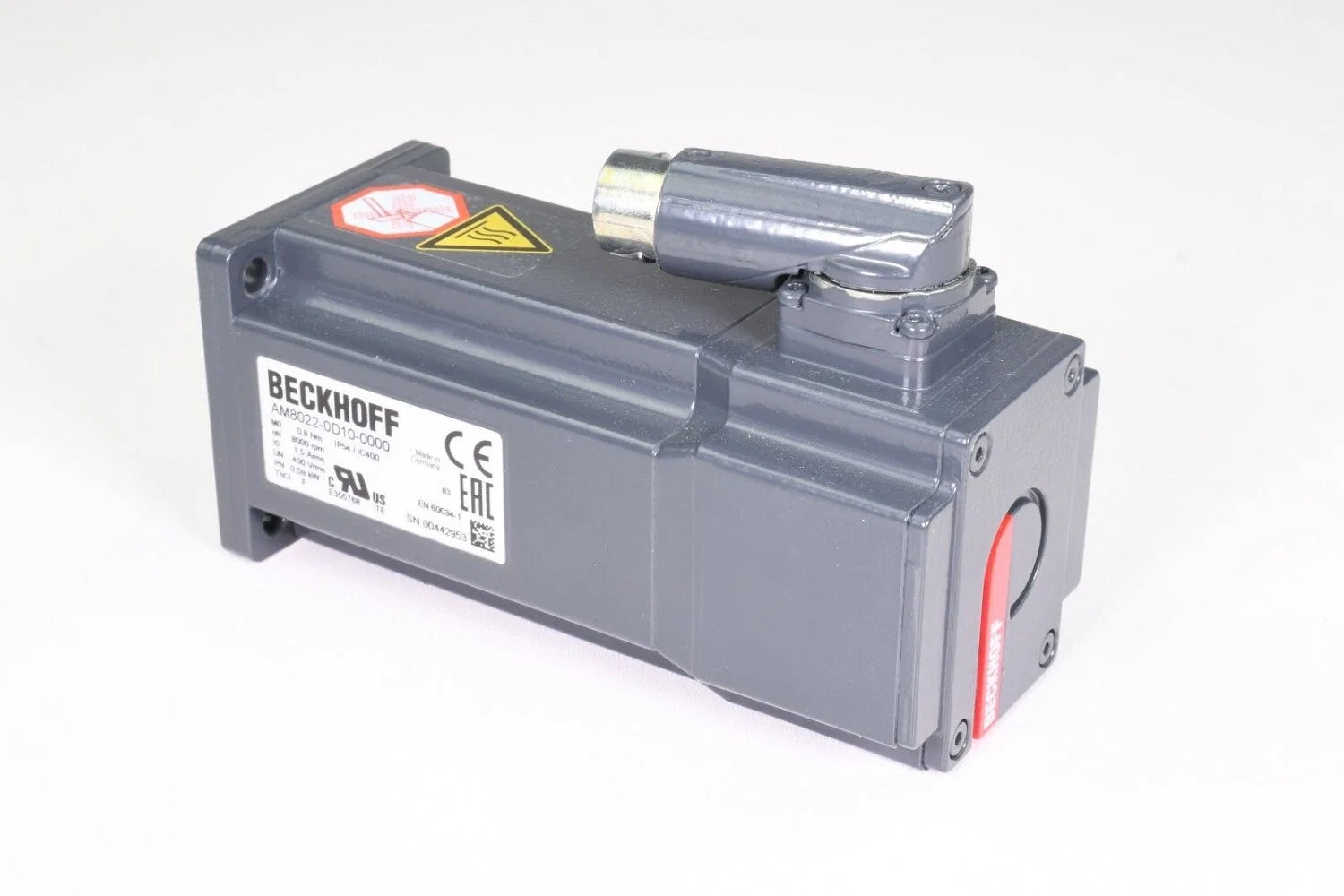

The Beckhoff AM8022-0D10-0000 servo motor is a compact AC synchronous motor designed for high-speed motion control applications. It operates on a 400–480 V supply and delivers precise torque and speed control up to 8000 RPM. This motor features One Cable Technology and a smooth shaft configuration without a holding brake.

Technical Specifications

Information About AM8022-0D10-0000

The AM8022-0D10-0000 is part of Beckhoff’s AM8000 series servomotors, engineered for dynamic industrial motion control systems. It incorporates single-turn feedback technology to provide accurate position information for closed-loop control. The motor is designed for use with Beckhoff servo drives and supports simplified installation through One Cable Technology, which combines power and feedback into a single connection. Its smooth shaft design makes it suitable for applications requiring continuous motion without braking.

Key Features:

• AC Synchronous Servomotor Design: Provides precise and efficient motion control for automation systems.
• High-Speed Operation: Rated for speeds up to 8000 RPM for dynamic applications.
• High-Voltage Supply Range: Operates on 400–480 V industrial power systems.
• One Cable Technology (OCT): Combines power and feedback in a single cable to simplify wiring.
• Single-Turn Feedback System: Enables accurate position control and repeatability.
• Smooth Shaft Configuration: Designed without a holding brake for continuous rotation applications.
• Compact Motor Construction: Optimized for space-efficient machine designs.

The AM8022-0D10-0000 delivers the reliability and precision required for high-speed industrial servo motion applications.
