Description

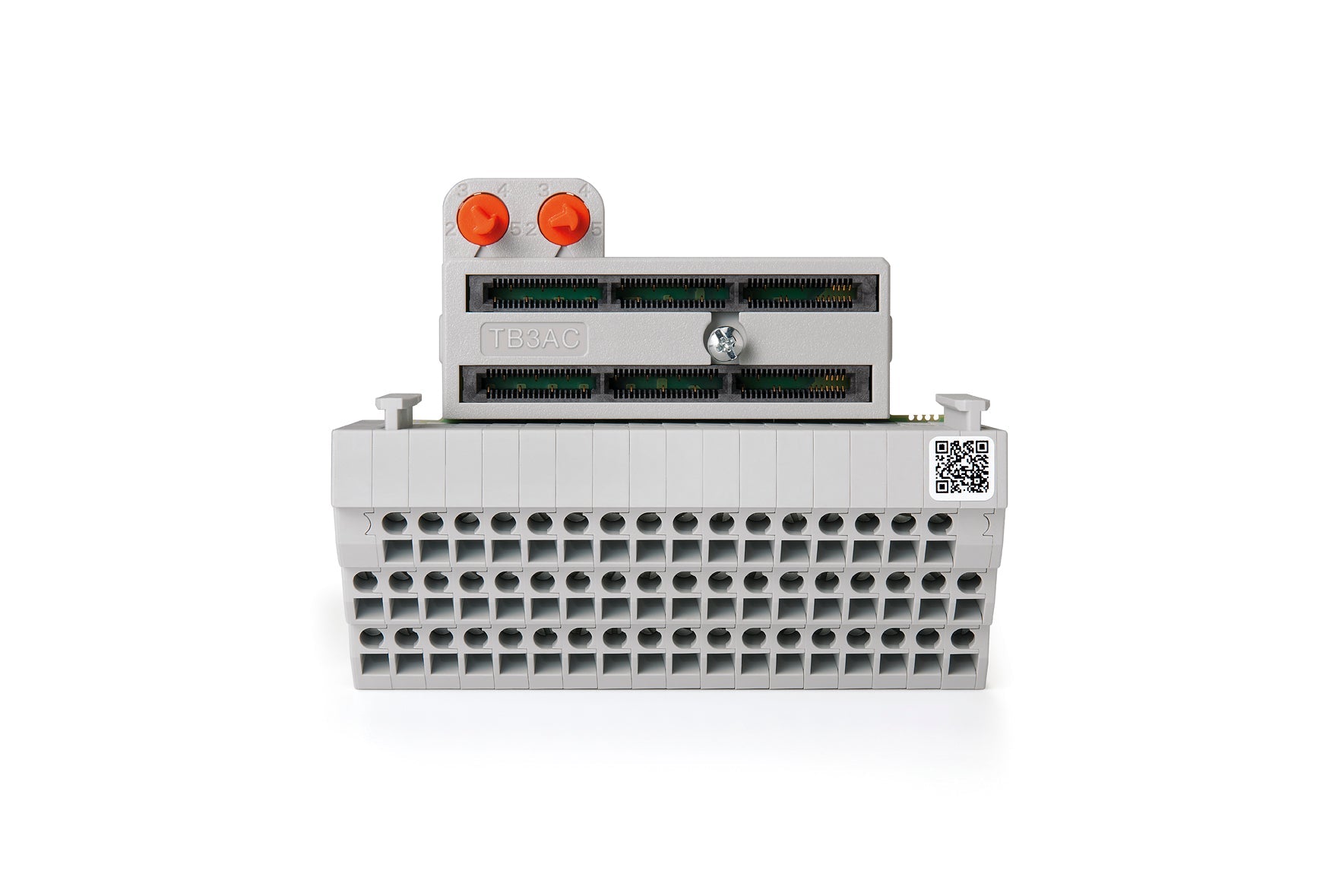

The Allen-Bradley 5094-RTB3AC is a removable terminal block designed for FLEX 5000 I/O systems to simplify field wiring connections and module maintenance. It features AC screw-clamp terminals that provide secure electrical connections while allowing quick installation and replacement. The terminal block is intended for industrial automation applications requiring reliable and organized wiring.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley |
| Category |
Panel Accessories |
| Part Number |
5094-RTB3AC |
| Subcategory |
Terminal Blk/Strip Wiring Dev |
| Series |
FLEX 5000 I/O |
| Terminal Type |
AC Screw-Clamp |
| Current Rating |
2 A |
| Voltage Rating |
240 VAC |
| Frequency |
50/60 Hz |
| Conductor Size |
22–14 AWG |
| Operating Temperature |
-40°C to +70°C |
| Mounting |
Direct Attachment to FLEX 5000 I/O Module |
| Approximate Dimensions |
53 × 94 × 76 mm |
| Enclosure Type |
Open Style |
| Weight |
0.45 lbs |
Information About 5094-RTB3AC
The 5094-RTB3AC is a wiring accessory developed for the Allen-Bradley FLEX 5000 distributed I/O platform. It connects directly to compatible FLEX 5000 I/O modules, allowing field wiring to remain in place during module replacement or servicing. The removable design reduces maintenance time while supporting efficient system expansion and simplified troubleshooting. Its screw-clamp terminal construction provides dependable wire retention for industrial control panel installations operating with AC circuits.
Key Features:
- FLEX 5000 Compatibility: Designed for use with compatible Allen-Bradley FLEX 5000 I/O modules.
- Removable Terminal Block: Allows fast module replacement without disconnecting field wiring.
- Screw-Clamp Terminals: Provides secure and stable electrical wire connections.
- 240 VAC Rating: Supports AC control circuits up to 240 VAC.
- 2 A Current Rating: Suitable for low-current industrial I/O applications.
- Wide Wire Range: Accepts conductor sizes from 22 to 14 AWG.
- Industrial Temperature Range: Operates reliably from -40°C to +70°C.
- Simplified Maintenance: Improves serviceability and minimizes downtime during I/O module replacement.
The 5094-RTB3AC delivers the reliability and precision required for industrial I/O wiring, control panel assembly, and FLEX 5000 automation systems.
