Description

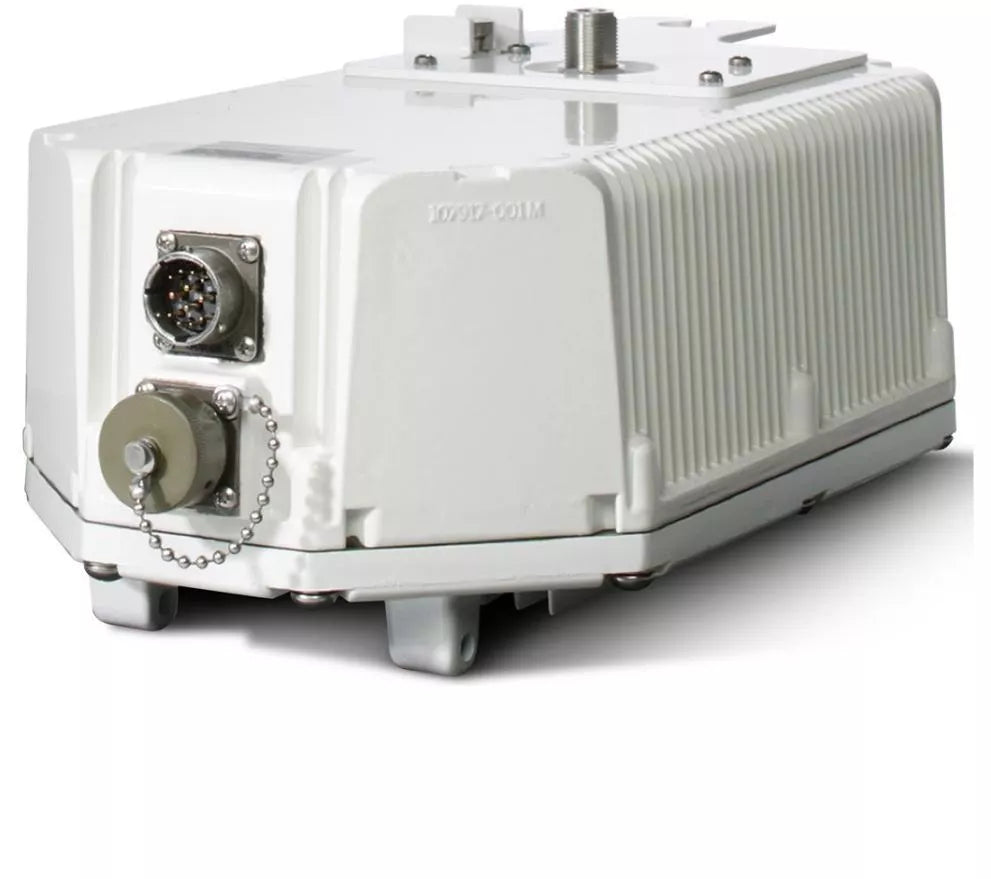

The Cisco AIR-LAP1510AG-A-K9 is a lightweight outdoor mesh access point from the Aironet 1510AG Series, designed to deliver secure, high-performance wireless connectivity in outdoor environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Cisco
|
| Category |
Machine Parts
|
| Part Number |
AIR-LAP1510AG-A-K9 |
| Subcatecory |
|
|
Product Type
|
Wireless Access Point |
Wi-Fi Standard
|
|
| ISM Band |
Yes |
| UNII Band |
Yes |
| ISM Minimum Frequency |
2.41 GHz |
| ISM Maximum Frequency |
2.46 GHz |
| UNII Minimum Frequency |
4.94 GHz |
| UNII Maximum Frequency |
5.85 GHz |
| Wireless Transmission Speed |
54 Mbps |
| Ethernet Port |
Yes |
| Fast Ethernet Port |
Yes |
| Number of Network (RJ-45) Ports |
1 |
| Form Factor |
Pole-mountable |
| Height |
15.0" |
| Width |
5.7" |
| Depth |
7.3" |
| Weight |
10.03 lbs |
Information About AIR-LAP1510AG-A-K9
The Cisco AIR-LAP1510AG-A-K9 is a lightweight outdoor mesh access point from the Cisco Aironet 1510AG Series, engineered to extend secure and high-performance wireless LAN services to outdoor environments. Designed for municipal wireless networks, industrial campuses, and enterprise outdoor coverage, it supports dual-band IEEE 802.11a/g radios and operates as part of a centrally managed wireless mesh network. With rugged construction, integrated antennas, and secure Layer 2/3 connectivity, this access point enables flexible and scalable deployment across a wide area.
Key Features:
-
Type: Lightweight Outdoor Mesh Access Point
-
Series: Cisco Aironet 1510AG Series
-
Category: Wireless Access Point
-
Subcategory: Outdoor Mesh Networking
-
Functionality: Provides dual-band wireless mesh access with centralized WLAN control
-
Radios:
-
Data Rate: Up to 54 Mbps per radio (based on IEEE 802.11a/g)
-
Antenna Type: Integrated omnidirectional antennas (multiple configurations available)
-
Mesh Capabilities: Supports wireless backhaul and client access in mesh topologies
-
Power Options: Power over Ethernet (PoE) or external DC power input
-
Security: Supports WPA/WPA2, 802.1X, MAC filtering, and AES encryption
-
Management: Centrally managed through Cisco Wireless LAN Controllers (WLC)
-
Form Factor: Ruggedized outdoor unit with weatherproof enclosure
-
Operating Temperature Range: –20 °C to +55 °C (–4 °F to +131 °F)
-
Mounting Options: Pole and wall-mount capable
-
Standards Compliance: IEEE 802.11a/g, FCC, CE, RoHS, IP-rated enclosure
The Cisco AIR-LAP1510AG-A-K9 delivers scalable and secure outdoor wireless mesh connectivity, making it an excellent choice for extending WLAN services to parks, campuses, industrial zones, and public safety networks. Its lightweight, weather-resistant design ensures reliable performance in harsh outdoor conditions.
