Description

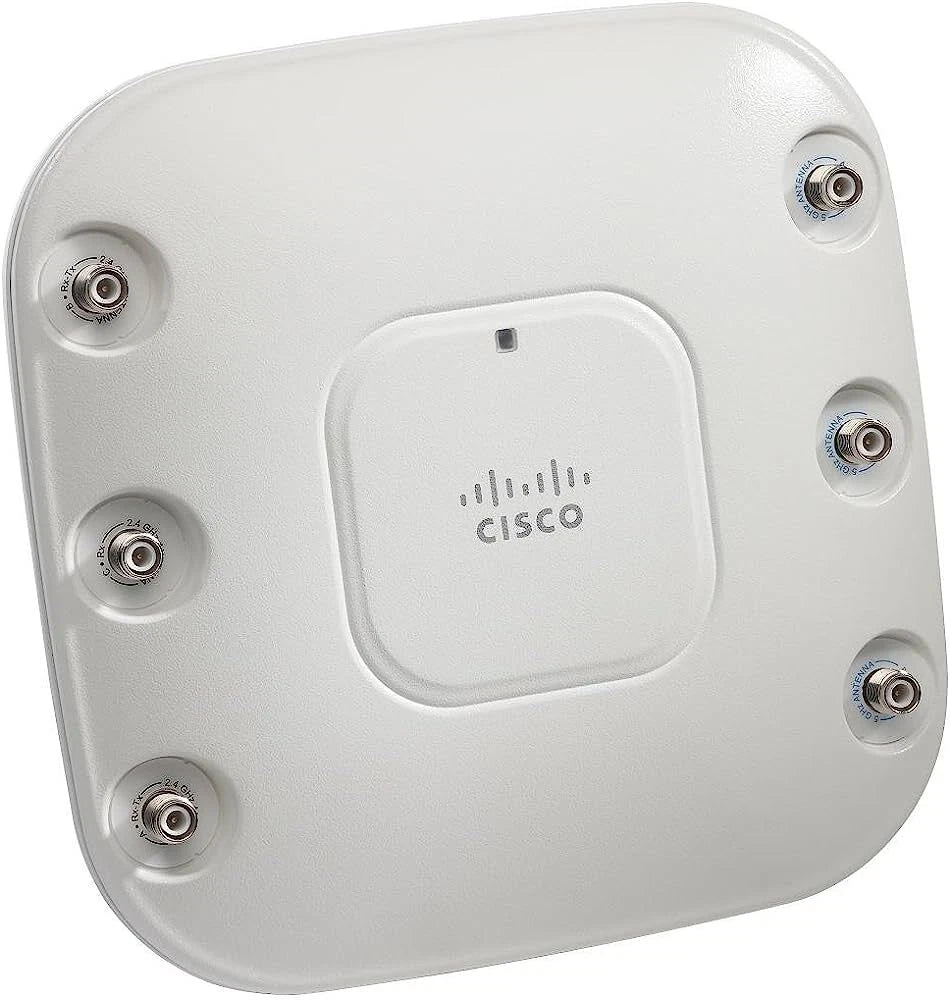

The Cisco AIR-LAP1262N-A-K9 is a dual-band lightweight 802.11n access point that supports external antennas and centralized controller-based management. Designed for high-performance enterprise deployments, it delivers secure wireless connectivity with 802.11a/g/n support and a maximum data rate of 300 Mbps.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Cisco
|
| Category |
|
| Part Number |
AIR-LAP1262N-A-K9 |
| Subcatecory |
Lightweight Access Points
|
| Antenna Type |
External (connectors only; antennas not included) |
| Ethernet Port |
1 x 10/100/1000 Mbps (Gigabit Ethernet) |
| Maximum Data Rate |
300 Mbps |
| PoE Support |
IEEE 802.3af compliant |
| Transmit Power Adjustment |
1 dBm increments |
| Encryption Support |
WEP, WPA, WPA2 |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Operating Humidity Range |
10% to 90% (non-condensing) |
| Dimensions (W x D x H) |
1.84 x 8.68 x 8.68 inches |
| Weight |
2.3 lbs (1.04 kg) |
Information About AIR-LAP1262N-A-K9
The AIR-LAP1262N-A-K9 operates in both 2.4 GHz and 5 GHz bands and supports Cisco Unified Wireless Network architectures via centralized wireless LAN controllers. It is equipped with a single Gigabit Ethernet port and supports 802.3af-compliant Power over Ethernet for flexible power delivery. External antenna connectors enable tailored RF coverage, and transmit power can be adjusted in 1 dBm increments for optimal signal tuning. The unit is compact and durable, operating from 0°C to 40°C with flexible ceiling or wall mounting options (mounting kit not included).
Key Features:
- Dual-Band 802.11a/g/n Support: delivers reliable wireless connectivity on both 2.4 GHz and 5 GHz frequencies.
- External Antenna Ports: allows use of directional or omni antennas to fit diverse deployment needs.
- Centralized Management: designed for controller-based environments, enabling scalable administration.
- Gigabit Ethernet Port: supports high-speed uplink with 10/100/1000Base-T connectivity.
- Power over Ethernet (PoE): 802.3af compliant for power via network cable without a separate adapter.
- Adjustable Transmit Power: fine-tuned in 1 dBm steps for customized wireless signal propagation.
- Enterprise Security: supports WEP, WPA, and WPA2 encryption standards.
- Rugged Environmental Support: operates in 0–40°C and up to 90% relative humidity.
- Flexible Mounting: compatible with wall or ceiling installations (mounting kit sold separately).
The AIR-LAP1262N-A-K9 delivers scalable dual-band wireless performance with external antenna support and enterprise-grade security for controller-managed deployments.
