Overview

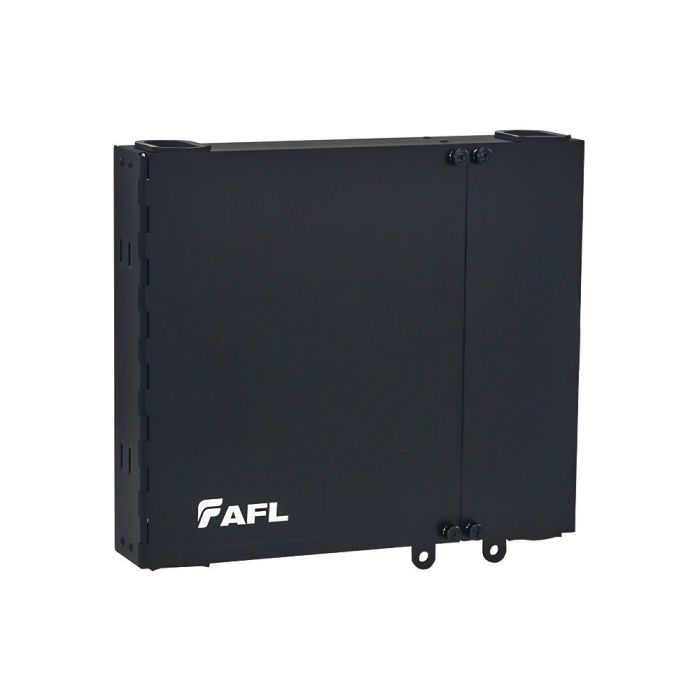

The AFL WME04E is a wall-mountable interconnect enclosure engineered for the convergence of fiber optic splicing and distribution. It is designed to house up to four LGX-compatible adapter plates or optical modules, providing a centralized point for fiber management in indoor wall-mount installations.
Key Features
-

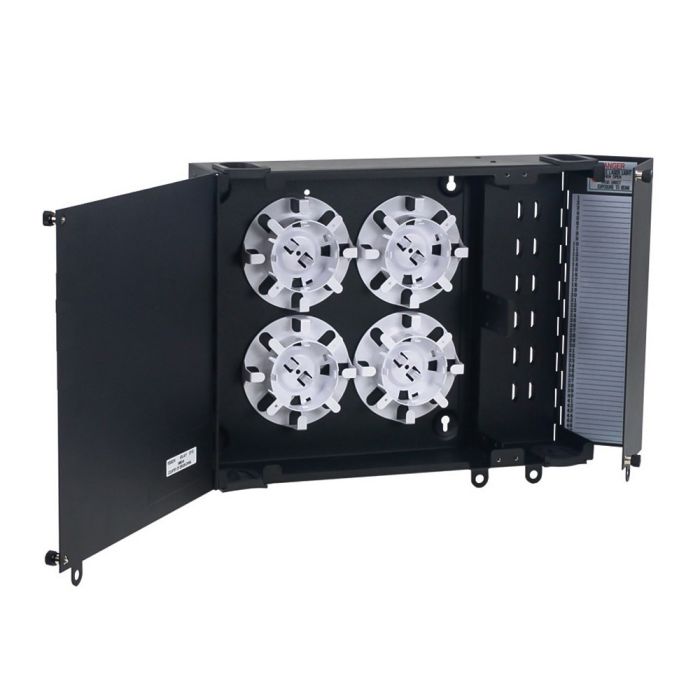

Dual Independent Access Doors: Features separate doors for provider and customer access, allowing each to be locked independently with either a padlock or a tube-style key lock.
-
High-Density Capacity: The chassis is configured to support 24 to 48 fiber terminations, facilitating organized patching and splicing density within a 12.0"H x 14.0"W x 3.63"D footprint.
-
Integrated Cable Management: Equipped with internal management features for both ingress and egress points, ensuring orderly routing and strain relief for fiber cables.
-
Robust Physical Protection: Constructed from solid steel to provide durable shielding for sensitive internal fiber components.
-
Roll-Formed Hinge Design: Internal hinges are engineered to eliminate fiber pinch points during the installation or maintenance process.
Technical Specifications
| Product Type |
Wall Mount Interconnect Enclosure |
| Capacity |
4 LGX Adapter Plates |
| Fiber Density |
24 to 48 Fibers |
| Dimensions |
12.0" H x 14.0" W x 3.63" D |
| Material |
Solid Steel |
| Finish |
Black |
| Mounting Type |
Wall Mount |
| Compatibility |
AFL PoliMOD Products, XFM Optical Cassettes |
| Locking Mechanism |
Independent Dual Doors (Padlock or Tube-Style Key) |
