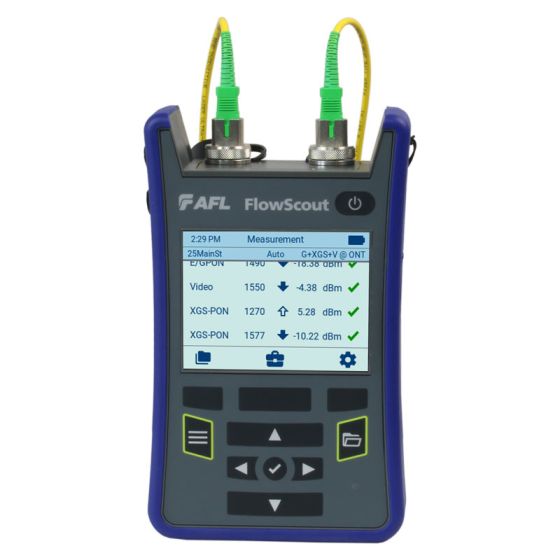

AFL FlowScout SMLP804PLUS – Through-Mode PON Power Meter Kit
The AFL FlowScout SMLP804PLUS is a technician-focused PON power meter that makes activating and maintaining GPON, EPON, 10GEPON, XG/XGS‑PON, and RF Video networks effortless. Simply connect the fiber—no setup required—and get accurate downstream and upstream power readings within seconds, displayed on a large, sunlight-readable touchscreen.
Equipped with AFL’s OPM8-L optical power meter and OLS8‑Quad light source, this kit automatically detects multiple wavelengths and evaluates them using the patented Wave ID™ system, reducing test sequence errors and saving time. The FlowScout is built tough with an IP54 rating, rugged housing, and a rechargeable lithium-polymer battery, ensuring reliable performance in the field. Internal result storage and USB-based reporting mean technicians can document findings on-site without hassle.
🔧 Technical Highlights
| Feature |
Specification |
| Wavelengths Tested |
850 / 1300 / 1310 / 1550 nm |
| Dynamic Range |
Multimode: up to 40 dB / Single-mode: up to 69 dB |
| Power Meter |
OPM8-L with 2.5 mm universal adapter cap |
| Light Source |
OLS8‑Quad with Wave ID™ encoding |
| Display |
Large touchscreen, daylight readable |
| Storage & Reporting |
Internal memory + USB export; FlexReports™ compatible |
| Durability |
IP54 dust/water resistance |
| Power |
Rechargeable Li-Polymer battery |
| Warranty |
5 years |
| Kit Included |
OPM8-L meter, OLS8‑Quad source, SC adapters, soft case, charger |
✅ Why You’ll Love It
-
Plug-and-play simplicity—no need to configure settings
-
Wave ID™ feature ensures accurate matching of wavelengths
-
Color-coded pass/fail indicators for quick test confirmation
-
Rugged build withstands drops, dust, and moisture
-
Field-ready accessories—soft case and modular adapters included
🏗 Who It’s For:
Ideal for technicians in FTTx deployment, data center certification, and LAN installations—anywhere rapid, reliable fiber testing is needed without setup delays and environmental constraints.
Download Product Spec Sheet:
