Description

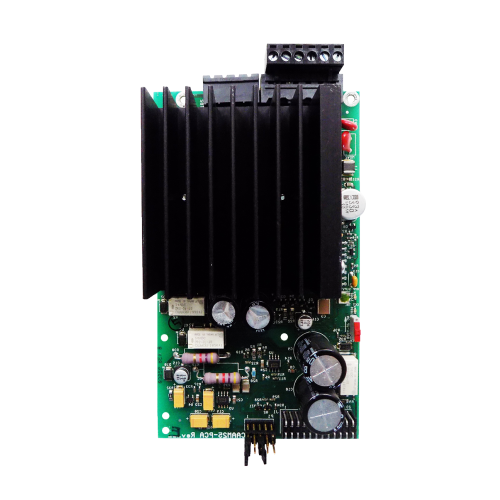

The Fire-Lite ACC-AAM25 Audio Amplifier Module (part number ACC-AAM25) is a plug-in expansion module designed to enhance the audio capacity of compatible Fire-Lite systems. It provides an additional 25-watt speaker circuit or can serve as a backup amplifier, ensuring system reliability in critical emergency communication applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Fire-Lite Alarms by Honeywell |
| Category |
Fire Safety |
| Part Number |
ACC-AAM25 |
| Subcategory |
Audio Amplifier Module |
| Power Output |
25W (adds second circuit or backup mode) |
| System Output Capacity |
Up to 50W when used in expansion mode |
| Connection Interface |
J1 connector plugs into P3 on main circuit board |
| Configuration Switch |
S1 for Normal (down) or Backup (up) operation |
| Mounting Hardware |
Supplied screws and metal standoff included |
| Factory Installed Jumpers |
Required on connector P1 |
| Application |
Voice evacuation, mass notification, emergency communications |
| Compatibility |
Fire-Lite ECC main control boards (ACCMCB-PCA type) |
| Dimensions |
Module mounts directly to main PCB (refer to system manual) |
| Installation Notes |
Requires secure metal mounting for transient protection |
| Manufacturer |
Honeywell International, Inc |
| Unit of Measurement |
Each (EA) |
| Weight |
1 lb (approximate) |
Information About ACC-AAM25
The ACC-AAM25 is an optional audio amplifier module that mirrors the standard amplifier included in Fire-Lite’s emergency command panels. It connects directly to the main circuit board via connector P3, offering either a second 25-watt output or redundancy in the event of primary amplifier failure. Compact and efficient, this module is configured through a simple switch setting for normal or backup operation. Its design supports quick installation and seamless integration into Fire-Lite’s mass notification and voice evacuation systems.
Key Features
- 25-Watt Expansion: Provides a second 25W speaker circuit for a total of 50W system output.
- Backup Amplifier Mode: Configurable as a backup amplifier for added system reliability.
- Direct Plug-In Connection: Connects securely to the main circuit board through P3 connector.
- Switch-Selectable Modes: Simple switch (S1) allows quick configuration for normal or backup use.
- Secure Mounting: Includes standoffs and screws for stable installation and transient protection.
- Factory Compatibility: Matches the amplifier module included with factory-configured panels.
- Compact Design: Mounts directly on the main board without requiring extra enclosures.
The ACC-AAM25 delivers the reliability and flexibility required for scalable fire alarm audio systems.
